Functional unit description
VHF 5000 System
1-8
1.4

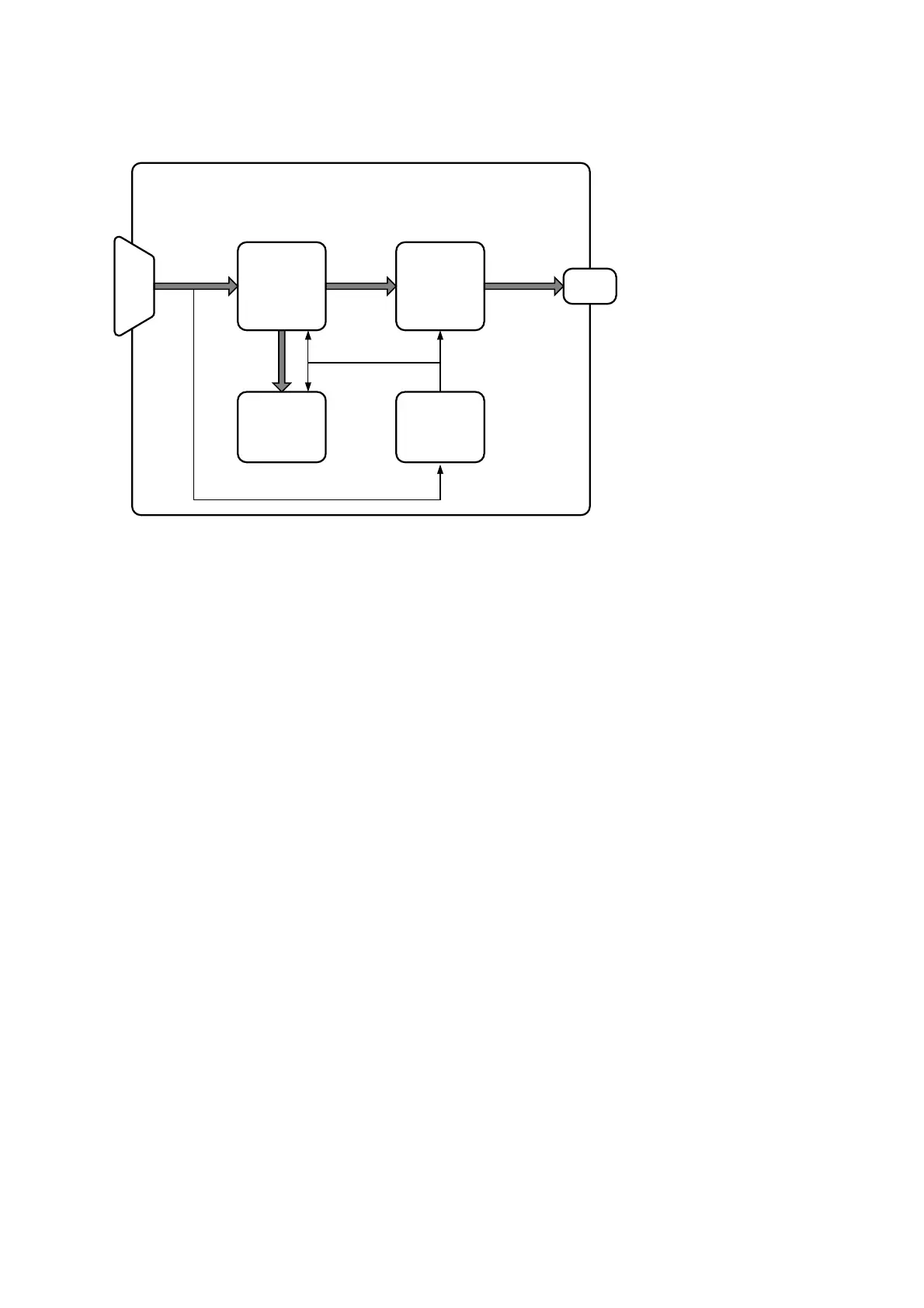

The SB5006 service tool and the LB5007 LAN box
LAN/Service
interface
RS485
SparcII data
from VHF
Up
MAC/PHY
Ethernet
converter
RJ45
Memory
12.5V to 5V
and 3.3V
converter
Sub-D
Ethernet to PC
40368
Principle of operation
LAN/Service box
The unit converts the data from the Sparcbus to Ethernet data.
The same unit is used for two applications. The LAN box is for fixed installation for connection to a printer and/
or a PC.
The service box is the same unit but only used by service personal for configuration and service purpose of the
VHF.
0608
13
15
Table of Contents
Default Chapter
5
Table of Contents
5
1 Functional Unit Description
7
The RT5022/RT5020 VHF Transceiver
7
RF Board
8
BB Main Block
10
Switch Mode Power Supply
11
Interface Descriptions
12
The CU5000 Remote Control Unit
13
The SB5006 Service Tool and the LB5007 LAN Box
14
2 Maintenance
15
Preventive Maintenance
15
Software Updates
15
Service Tool Update
15
3 Functional Unit Workshop Service
17
Necessary Test Equipment
17
Servicing the RT5022/RT5020 VHF Transceiver
17
Software
17
Manuals
19
Service Tool
19
Service Concept - Rt502X VHF DSC Main Unit
19
Electrical Interconnection Diagram
20
Available Spare Parts
21
Removing/Installing the Cover of RT5022/RT5020
22
Removing/Installing the Base Control Unit from Base Unit
23
Removing/Installing the Duplex Filter from the VHF Transceiver Unit
24
Removing/Installing the SMPS from the VHF Transceiver Unit
25
Removing/Installing the BB Module from the VHF Transceiver Unit
32
Removing/Installing the RF Module of the VHF Transceiver Unit
34
Removing/Installing the PA Module of the VHF Transceiver Unit
36
Removing/Installing the Internal Loudspeaker of the VHF
38
Detailed Fault Finding
39
Servicing the HS5001 Transceiver Handset
58
Manuals
58
Service Concept - HS5001 Tranceiver Handset
58
Mechanical Assembly and Disassembly
59
Fault Finding (HS5001)
62
Servicing the CU5000 Remote Control Unit
62
Software
62
Manuals
62
Service Tool
62
Service Concept - CU5000 Semi-Functional Control Unit
62
Fault Identifying Tests (CU5000)
63
Servicing the SB5006 Service Tool and LB5007 LAN Box
65
Software
65
Manuals
65
Service Concept
65
Fault Identifying Tests (LB5007/SB5006)
66
Common User Faults
67
Servicing the AP4365/AP5065 Alarm Panel
68
Servicing the Matrix Printer
68
Fault Identifying Tests (Printer)
68
4 Feature Sales
69
How to Get the License Key
69
Available Features
69
Scrambler
69
5 Installation
71
Mounting Possibilities
71
Compass Safe Distance
75
Interface Connections
76
System Block Diagram with Connection Box and 2 X Extension Box
77
Special Installations
78
Flush Mounting with Retrofit
78
Installing the Oki Microline Printer
78
Installing Other Printers
78
Acquiring a Printer Server
78
Connecting the LB5007 LAN Box
81
Multiple Unit Equipment
81
External Speakers for the Transceiver or Remote CU Positions
81
