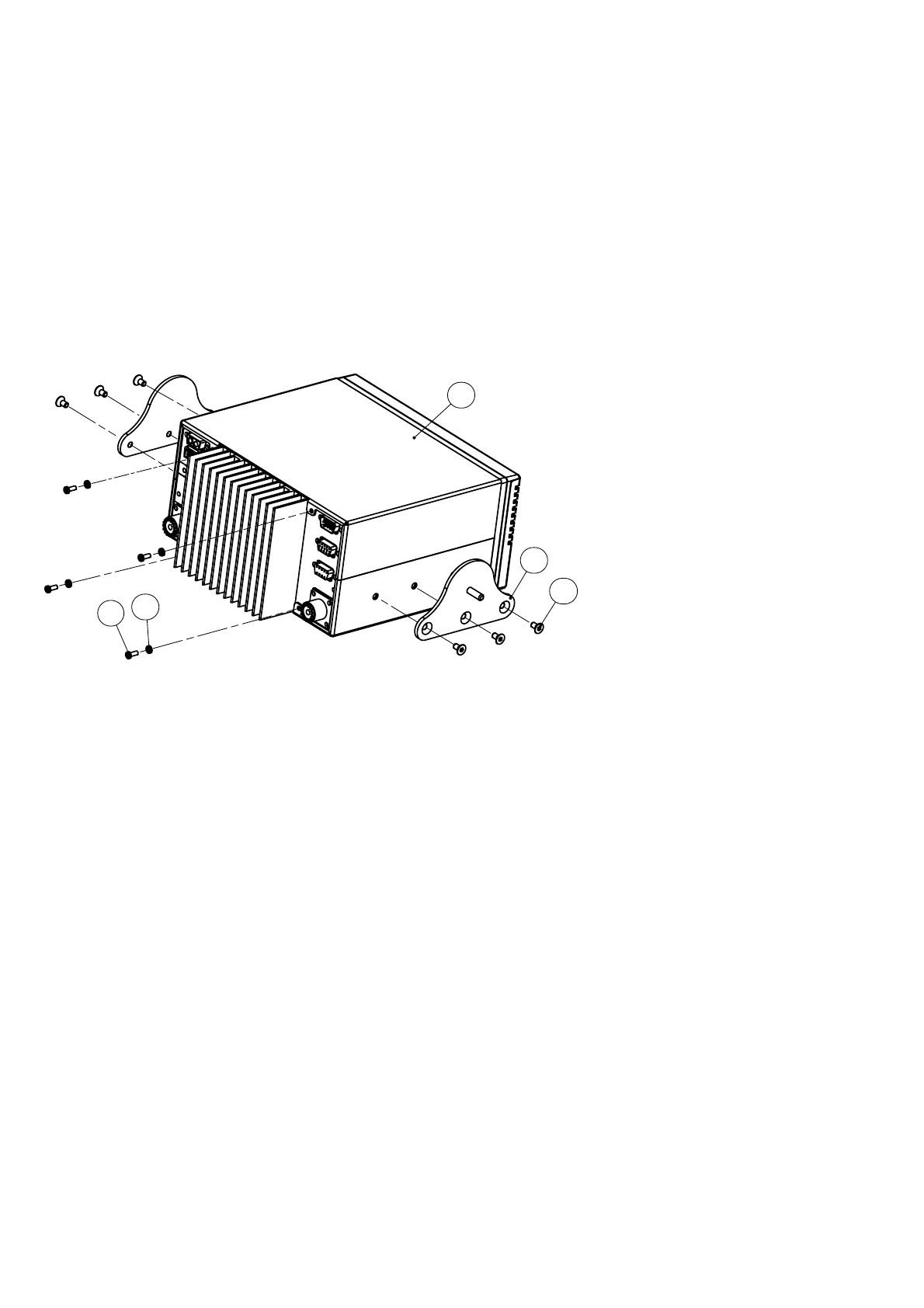

3.2.7 Removing/installing the Cover of RT5022/RT5020
Removal/Installing
• If the radio has been installed using the Mounting Bracket, remove the two Mounting Plates (item 3) by
removing the 6 x Screw M4x8 (item 4)
Tools required: Torx screwdriver, size 15
• Remove the 4 x Screws M3x8 with Washers (items 1 and 2)
Tools required: Torx screwdriver, size 10
• The cover (item 5) can now be removed by pulling it backwards from the Radio.
1
2
3
4
5
40161A
