VHF 5000 System
Functional unit workshop service
3-7
0608
3.2.8

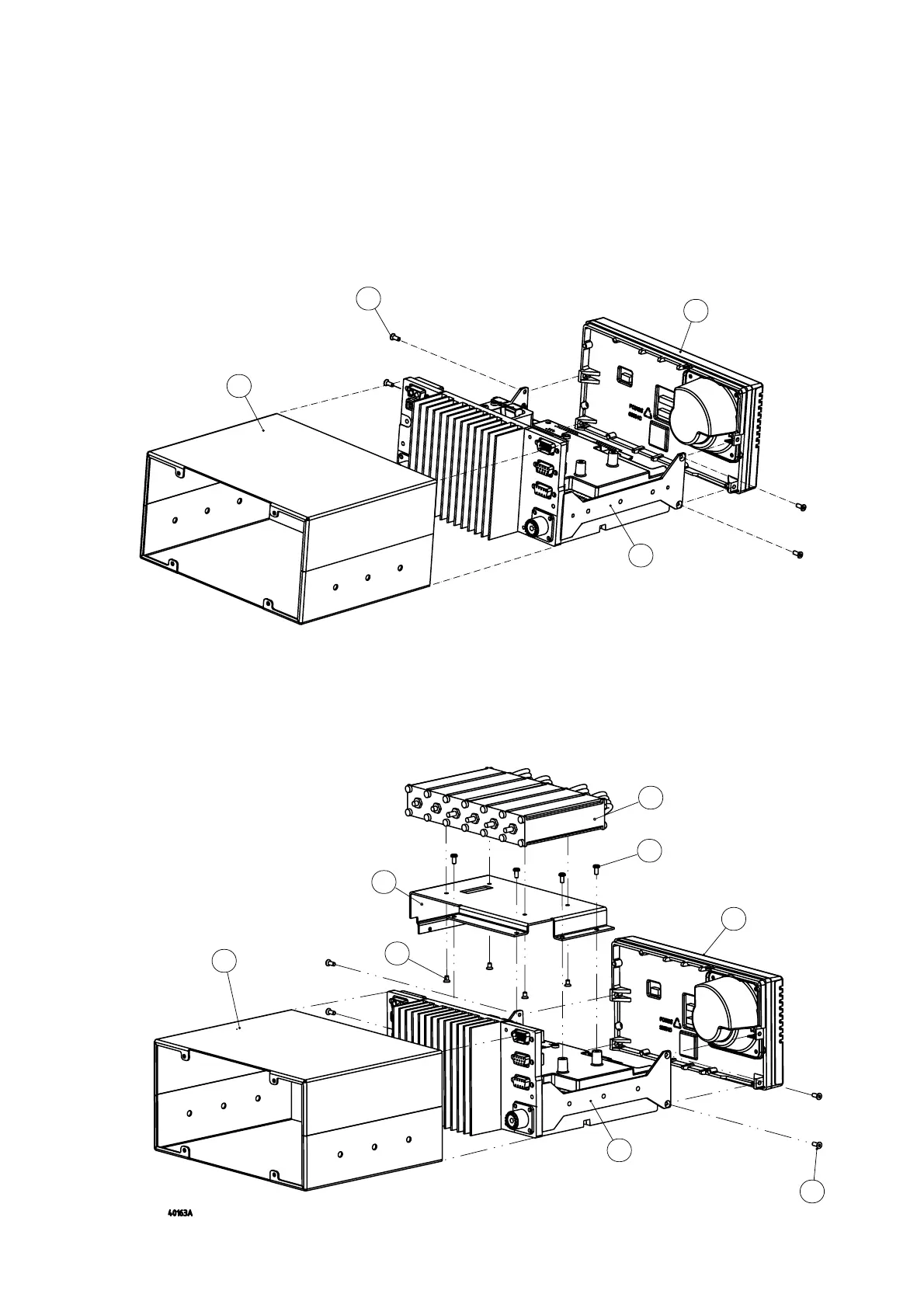

Removing/installing the Base Contr
ol Unit fr
om Base Unit
Removal/Installing
•
Remove 4 x Screw M2.5x8 (item 8)
Tools required:
Torx screwdriver, size 8
•
The base control unit (item 7) can now be disassembled from the base unit (item 6) by pulling forwards.
•
Remove 3 x ribbon cable and loudspeaker cable between base control unit (item7) and base unit (item6)
5
6
7
8
40162A
5
7
8
6
12
9
10
11
22
24
Table of Contents
Default Chapter
5
Table of Contents
5
1 Functional Unit Description
7
The RT5022/RT5020 VHF Transceiver
7
RF Board
8
BB Main Block
10
Switch Mode Power Supply
11
Interface Descriptions
12
The CU5000 Remote Control Unit
13
The SB5006 Service Tool and the LB5007 LAN Box
14
2 Maintenance
15
Preventive Maintenance
15
Software Updates
15
Service Tool Update
15
3 Functional Unit Workshop Service
17
Necessary Test Equipment
17
Servicing the RT5022/RT5020 VHF Transceiver
17
Software
17
Manuals
19
Service Tool
19
Service Concept - Rt502X VHF DSC Main Unit
19
Electrical Interconnection Diagram
20
Available Spare Parts
21
Removing/Installing the Cover of RT5022/RT5020
22
Removing/Installing the Base Control Unit from Base Unit
23
Removing/Installing the Duplex Filter from the VHF Transceiver Unit
24
Removing/Installing the SMPS from the VHF Transceiver Unit
25
Removing/Installing the BB Module from the VHF Transceiver Unit
32
Removing/Installing the RF Module of the VHF Transceiver Unit
34
Removing/Installing the PA Module of the VHF Transceiver Unit
36
Removing/Installing the Internal Loudspeaker of the VHF
38
Detailed Fault Finding
39
Servicing the HS5001 Transceiver Handset
58
Manuals
58
Service Concept - HS5001 Tranceiver Handset
58
Mechanical Assembly and Disassembly
59
Fault Finding (HS5001)
62
Servicing the CU5000 Remote Control Unit
62
Software
62
Manuals
62
Service Tool
62
Service Concept - CU5000 Semi-Functional Control Unit
62
Fault Identifying Tests (CU5000)
63
Servicing the SB5006 Service Tool and LB5007 LAN Box
65
Software
65
Manuals
65
Service Concept
65
Fault Identifying Tests (LB5007/SB5006)
66
Common User Faults
67
Servicing the AP4365/AP5065 Alarm Panel
68
Servicing the Matrix Printer
68
Fault Identifying Tests (Printer)
68
4 Feature Sales
69
How to Get the License Key
69
Available Features
69
Scrambler
69
5 Installation
71
Mounting Possibilities
71
Compass Safe Distance
75
Interface Connections
76
System Block Diagram with Connection Box and 2 X Extension Box
77
Special Installations
78
Flush Mounting with Retrofit
78
Installing the Oki Microline Printer
78
Installing Other Printers
78
Acquiring a Printer Server
78
Connecting the LB5007 LAN Box
81
Multiple Unit Equipment
81
External Speakers for the Transceiver or Remote CU Positions
81
