VHF 5000 System
Installation
5-1
0608
5
Installation
5.1
Mounting possibilities

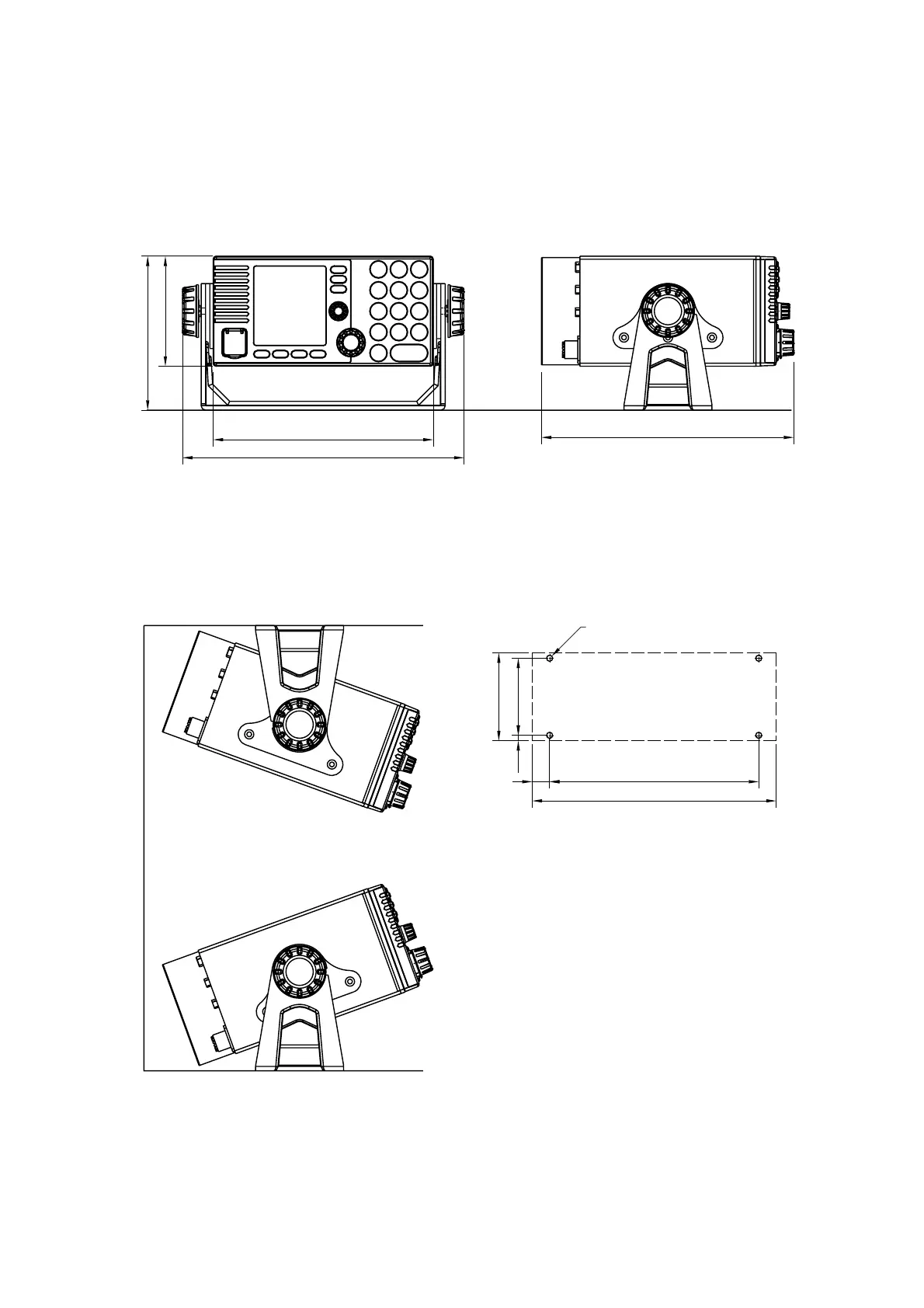

VHF with mounting bracket
39835
256
140
200
100
229
Mounting option
Drilling plan
39836
Tilting +/- 20°
39837
16
190
222
5
70
80
4xø5.5
Weight (RT5022):
VHF
4.1 kg
Mounting bracket
1.0 kg
Weight (RT5020):
VHF
4.9 kg
Mounting bracket
1.0 kg
70
72
