3.6 Servicing the AP4365/AP5065 Alarm Panel
For servicing the AP4365/AP5065 please refer to the AP4365/AP5065 manual.
3.7 Servicing the Matrix Printer
For servicing the OKI Microline matrix printer please refer to the H1252B printer manual.
3.7.1 Fault identifying tests (Printer)
The following checklist can be used to identify if the printer is somehow in disorder. As any printers in principle
can be used with the RT5022/RT5020, the descriptions of only the OKI Microline (H1252B) will be specifically
referenced.
(PRT-01)
check cabling &
(SPD-flow)
data
Power up system
SPARC-II
(PRT-02)
Accessory
Passed
Failed
Test Flow
Terminated
40471
(PRT-03)
Printer
Passed
Failed
(LAN-flow)
verification
LB5007
Printer server
see manuals
setup flow-
(PRT-04)
Printer setup
check?
check?
(PRT-01)
check cabling &
(SPD-flow)
data
Power up system
SPARC-II
(PRT-02)
Accessory
Passed
Failed
Test Flow
Terminated
40471
(PRT-03)
Printer
Passed
Failed
(LAN-flow)
verification
LB5007
Printer server
see manuals
setup flow-
(PRT-04)
Printer setup
check?
check?

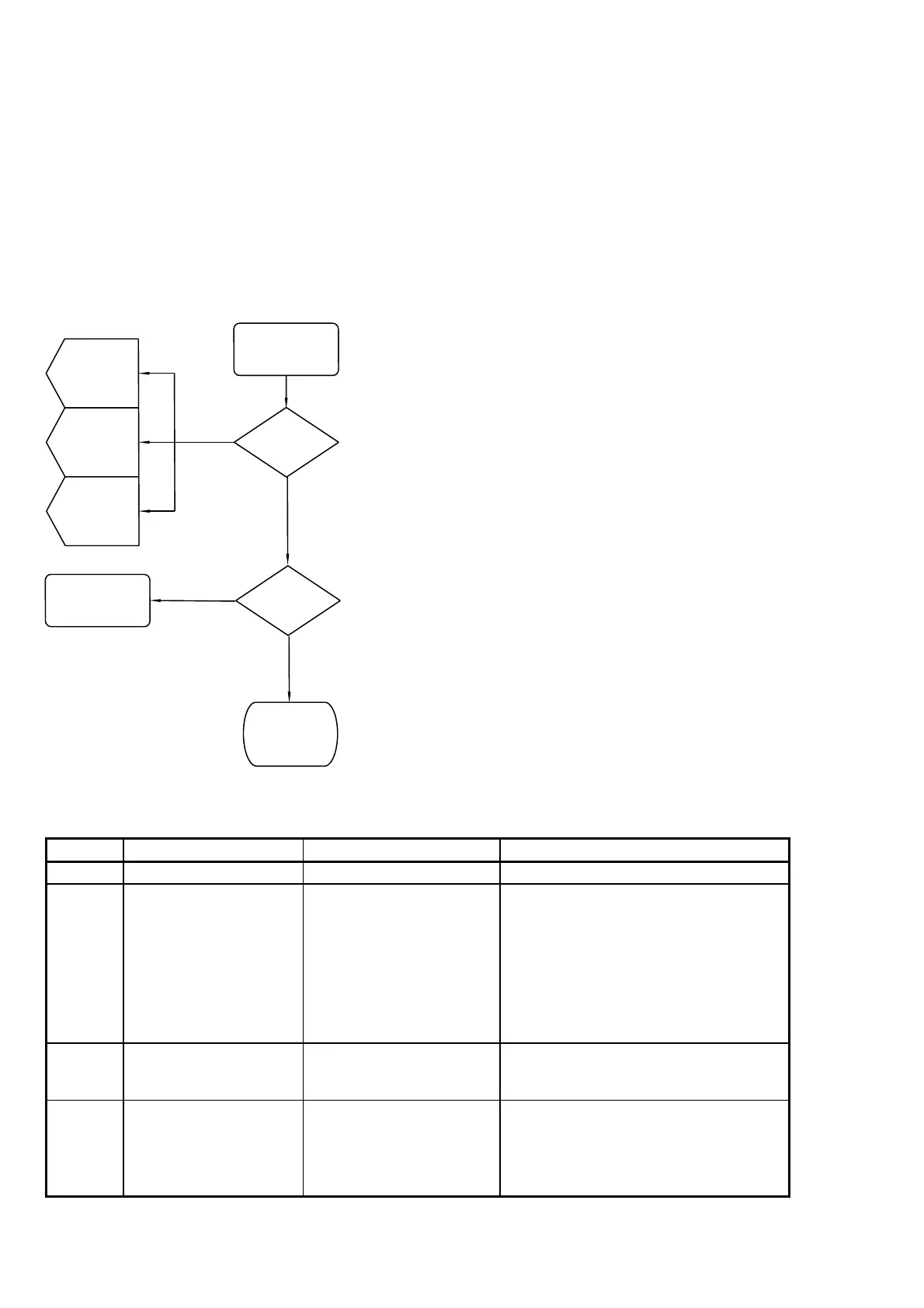

Fig. 29 (PRT) - Printer check flow
Reference Operation/Test Test Criteria Comments/instructions
PRT-01 Power up radio
Pass:
The printer server is
recognized in the VHF
accessory check menu.
Select the Printer server item in the
accessory self test menu
(5.6.4)
.
Fail:
Otherwise
NOTE:
Two things are checked in this
menu.
• The presence of a LAN box (LB5007).
• The presense of the printer server.
Pass:
A test page can be
printed.
Fail:
Otherwise.
Consult the printer manual for setting up the
printer.
For the OKI Microline the Latin 6 character
set has been identified to be the best
suitable for the current languages.
A test page is printed from the self-test
menu
(5.7)
.
PRT-02 Accessory check from
VHF
PRT-03 Verify printer function
PRT-04 Printer setup
Tabel 24 (PRT) - Printer verification tasks.
