Functional unit workshop service VHF 5000 System
3-44
1007
• Attach upper handset part to bottom part, engaging
the taps at earpiece end first making sure that the
two parts are seated correctly together – see Fig.
3 – and not having any cabling stuck between the
two parts.
Install 2 x screws and tighten by applying a torque
of max. 0,4 Nm.
Fasten the screw at the end of the handset by
applying a torque of max. 0,4 Nm.
Tools required:
Torx screwdriver, size 10.
Available spare parts
Check eShop at http://extranet.thrane.com

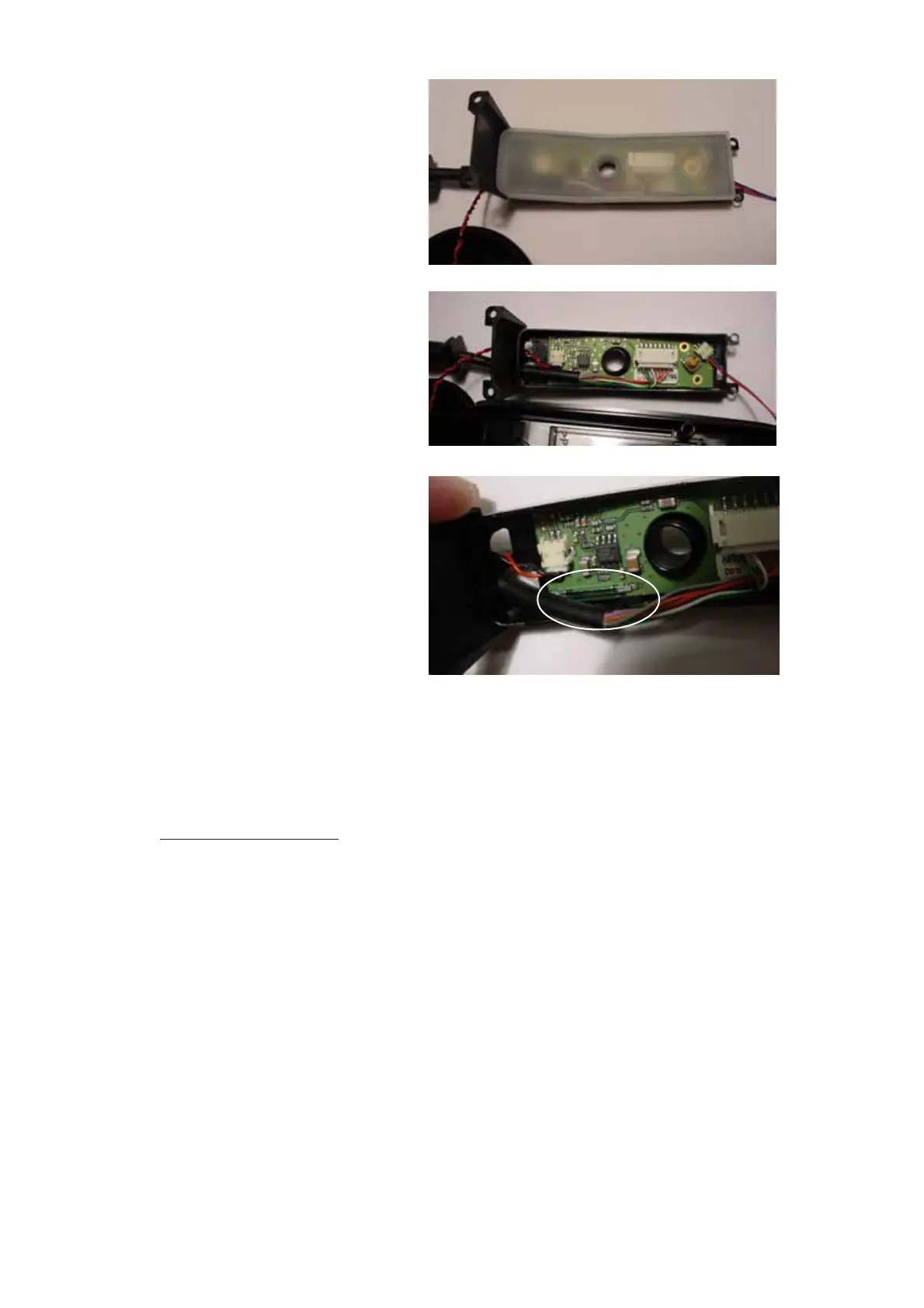

Fig. 5
