38
Description Min Max
4#Resistance 0 1000000
5#Resistance 0 1000000
6#Resistance 0 1000000
Weight channel Channel 1, 2 , Dual channel
Note: When Dual channels are used for the weight channel, the two load cells should be
connected to the channel 1 and channel 2 separately on the A/D board.
Data setup in this section depends on mechanical
Belt scale data （ Figure 3 — 2 ）
Before turning on belt running switch or belt scale power supply switch, complete the
following work, refer to your system Data Sheet in the front of this manual.
1. Scale capacity
Record scale capacity as per T/H ： （ Example ： 400.0 ）
（ Tons/hour ）
2. Belt scale parameters
When R-Cal is executed in initial programme, if Test chain, test weight cal is used, enter
weight value in “ Cal Data Scroll ” after initial programme is completed.

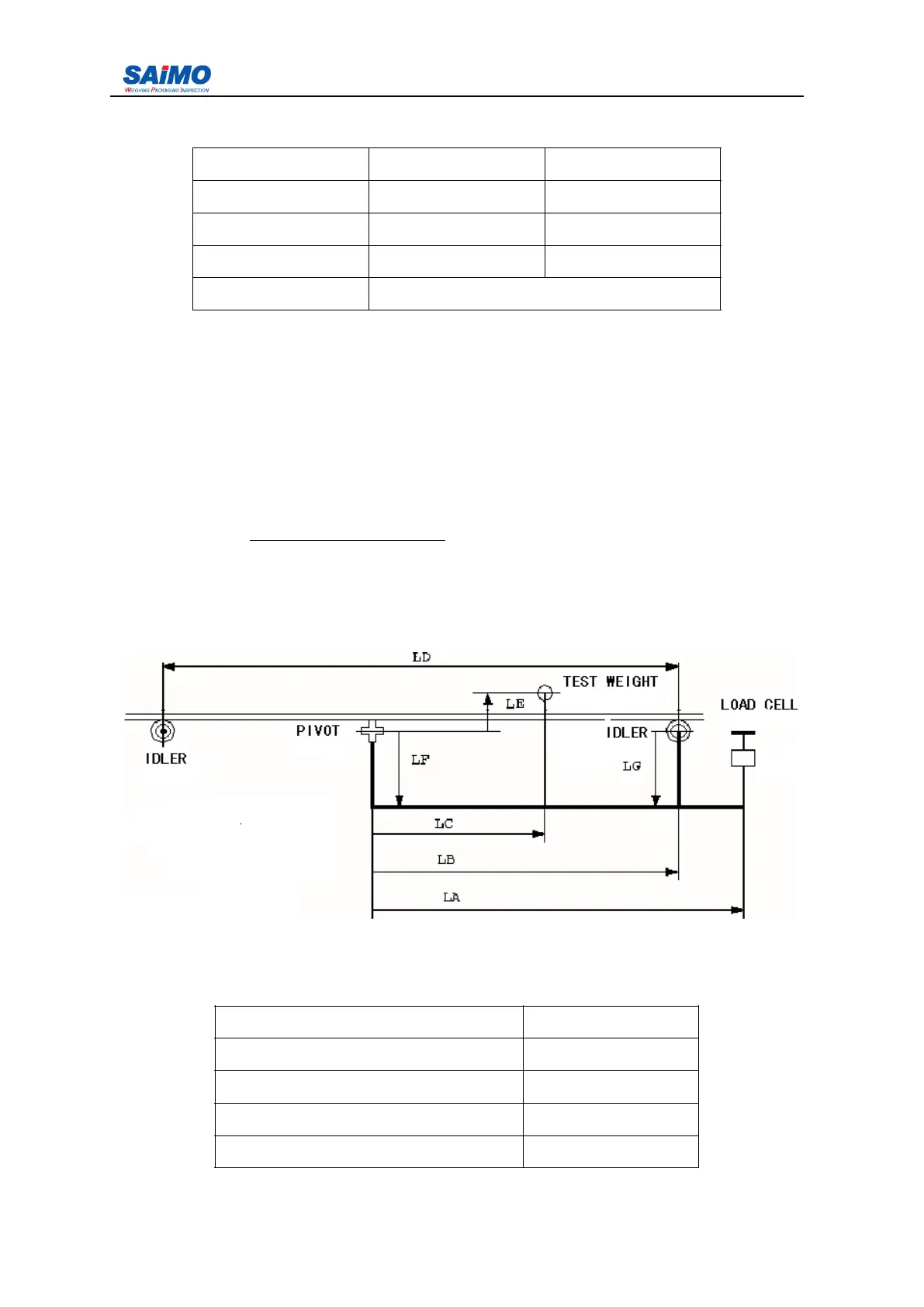

Figure 3- 2 Saimo Belt scale bridge
Pivot to loadcell distance P to L LA
Pivot to idler D. LB
Pivot to test weight len. LC
I dler spacing LD
Pivot to test weight height LE
