39
Pivot to scale carriage height LF
I dler to scale carriage height LG

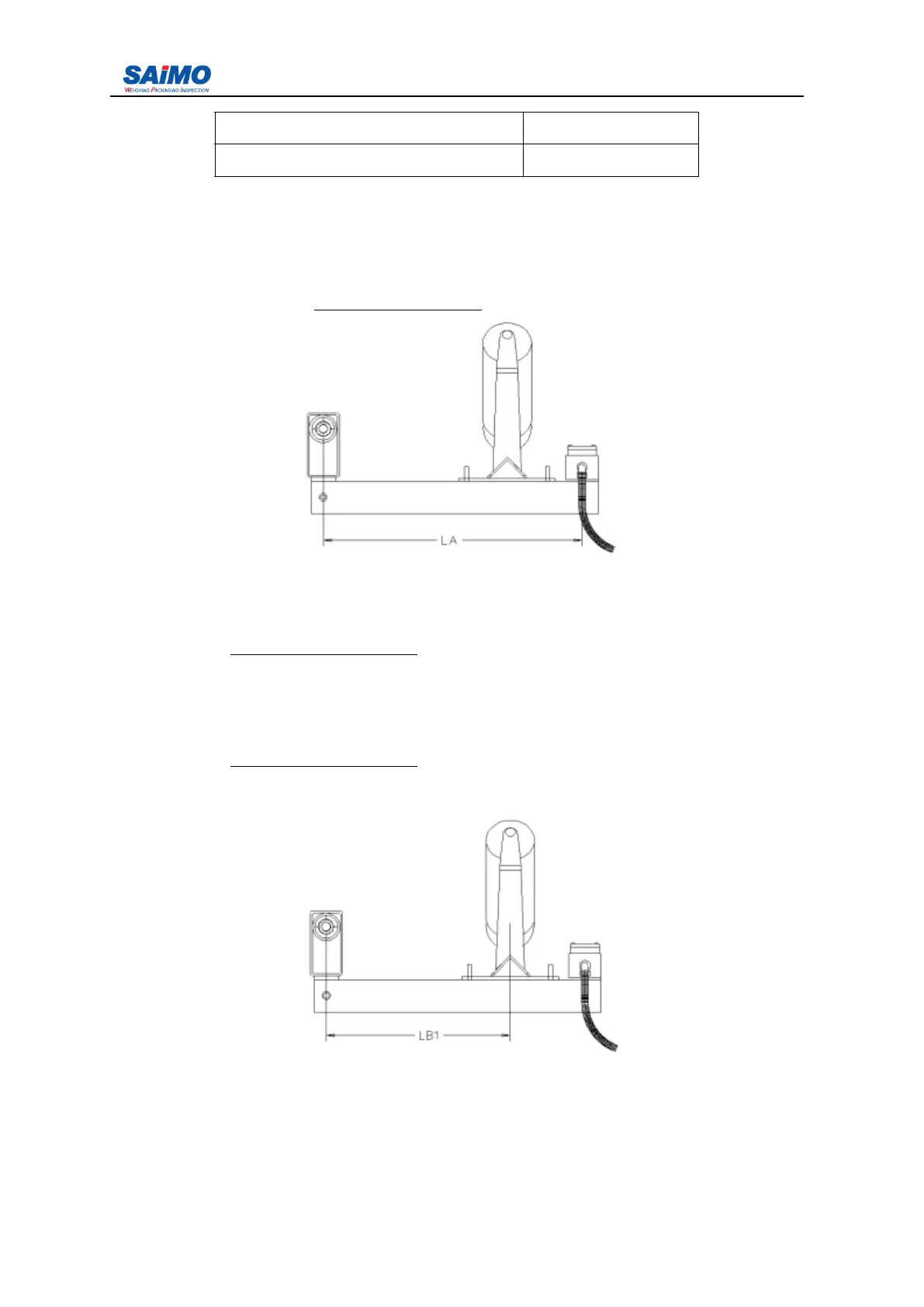

a 、 Pivot to load cell Distance （ Figure 3 — 3 ）
As indicated on the following drawing, measure the distance from the pivot centerline to the
loadcell centerline to the nearest 1mm, record the distance below:
mm （ Pivot to loadcell distance P to L ）
Figure 3- 3 Pivot to loadcell distance P to L
b
、
Idler no. on weighing bridge — IDN
（ Idler no. ）
c 、 Pivot to 1
st
weigh idler （ Figure 3 — 4 ）
As indicated on the following drawing, measure the distance from the pivot centerline to the
first weigh idler ’ s centerline to the nearest 1mm, record the distance below:
mm （ Pivot to 1
st
weigh idler distance P to 1st ）
Figure 3- 4 Pivot to 1
st
weigh idler distance P to 1st
d 、 Pivot to 2nd weigh idler （ figure 3 — 5 ）
As indicated on the following drawing, measure the distance from the pivot centerline to the
second weigh idler ’ s centerline to the nearest 1mm, record the distance below:
