40
mm （ Pivot to 2nd weigh idler distance P to 2nd ）

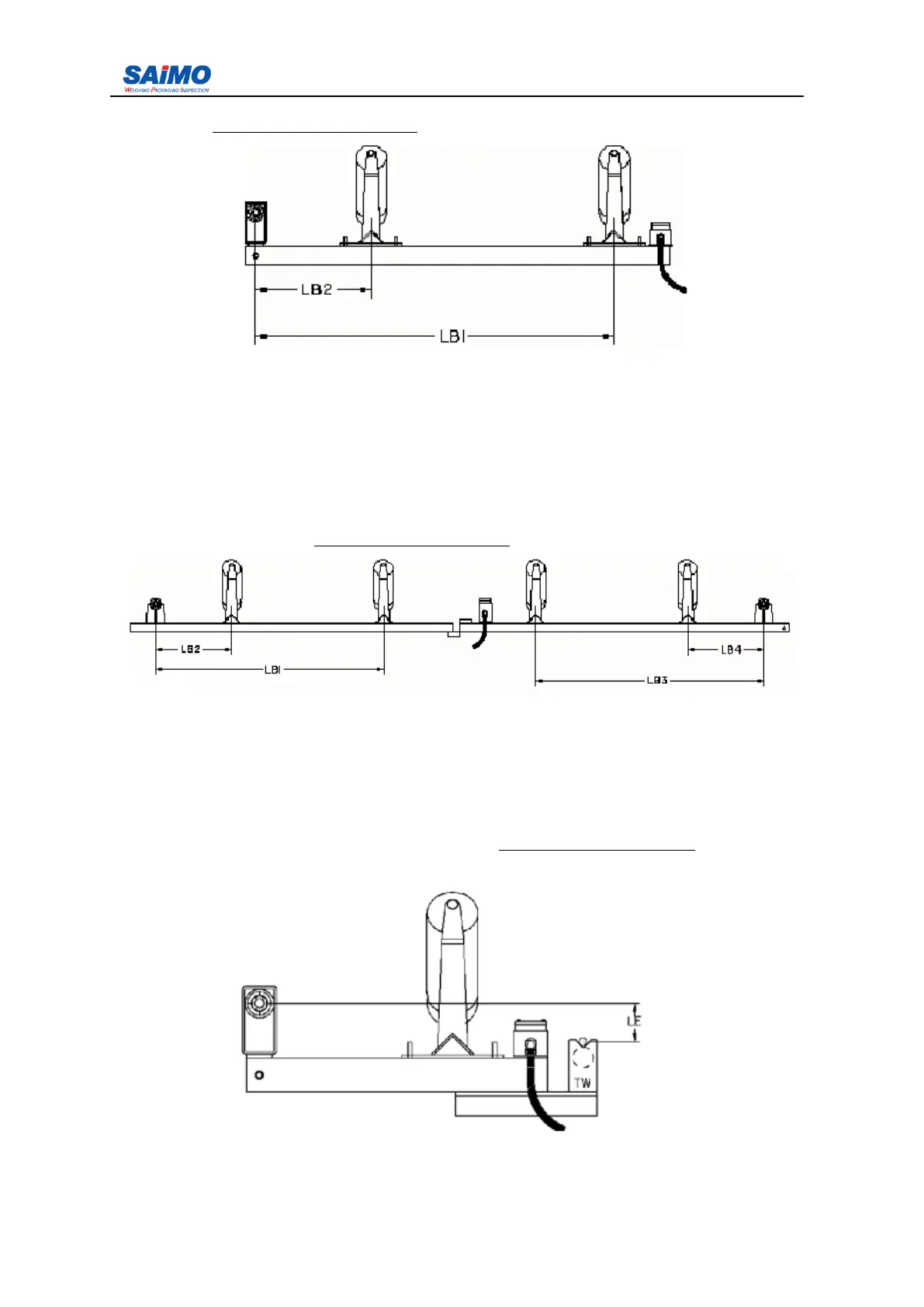

Figure 3- 5 Pivot to 2nd weigh idler distance
Note: In programming process, each scale bridge can be input up to six distances between
pivot to weigh ider. The method is same as d.
e 、 Pivot to 1
st
, 2
nd
, 3
rd
, forth idler distance （ Figure 3 — 6 ）
As indicated on the following drawing, measure the distance from the pivot centerline to
weigh idler
’
s
centerline to the nearest 1mm, record the distance below:
mm
（
Pivot to weigh idler distance
）
Figure 3- 6 Pivot to 1
st
, 2
nd
, 3
rd
, forth idler distance
Note: only under test weight cal. below procedures 4
，
5
，
6
，
7 must be completed.
f 、 Pivot to test weight height — LE （ figure 3 — 7 ）
Measure the height of pivot centerline to test weight to the nearest 1mm, record the distance
below (for example: 4.75)
If test weight is not used, this step is not necessary. mm （ Pivot
to test weight height ）
Figure 3- 7 Pivot to test weight height
