41

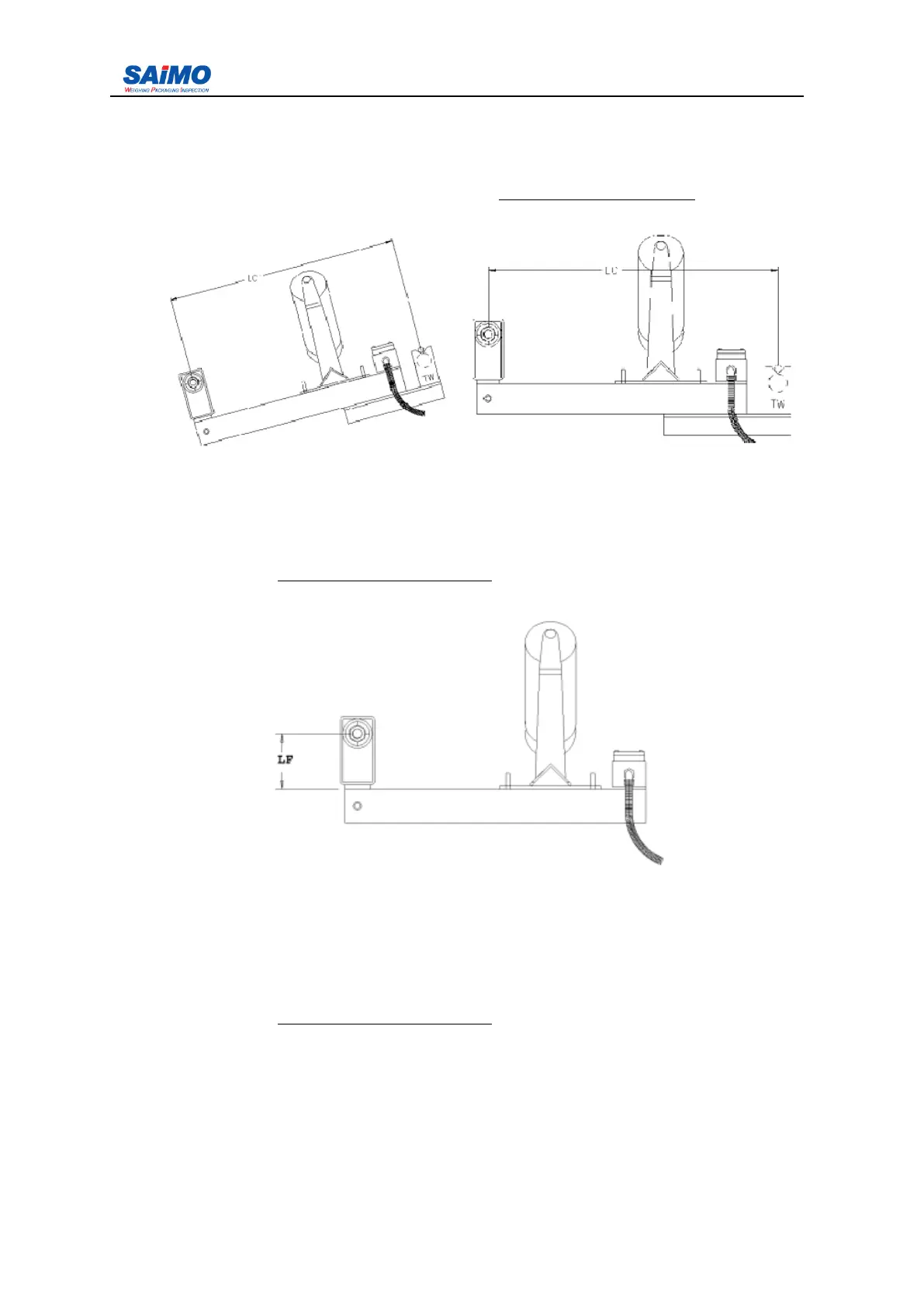

g 、 Pivot to test weight length — LC （ Figure 3 — 8 ）
Measure the distance of pivot centerline to test weight vertical line to the nearest 1mm,
record the distance below (for example: 4.75)
If test weight is not used, this step is not necessary. mm （ Pivot
to test weight distance
）
Figure 3- 8 Pivot to test weight distance
h
、
Pivot to scale carriage height — LF
（
Figure 3 — 9
）
Measure the height of pivot centerline to scale carriage railway top to the nearest 1mm,
record the distance below ：
mm （ Pivot to carriage height ）
Figure 3- 9 Pivot to scale carriage height
i 、 Pulley to scale carriage height — LG （ Figure 3 — 10 ）
Measure the height of scale carriage railway top to pulley top. For flat idler, measure
distance to lubrication centerline to to the nearest 1mm, record the distance below ：
mm （ pulley to carriage height ）
