5.1.4 Mounting & Fixing the Sensor Vertically
Fasten the integrated outdoor sensor to the mounting pole
brackets with foot-mounting,two Ø3 bolts and M3 nuts.
Then, tighten the mounting pole to your existing mounting pole
with the four bolts ( Ø5) and nuts (M5) , or fix it on the flat
surface with four tapping screws, as show in Figure 16.

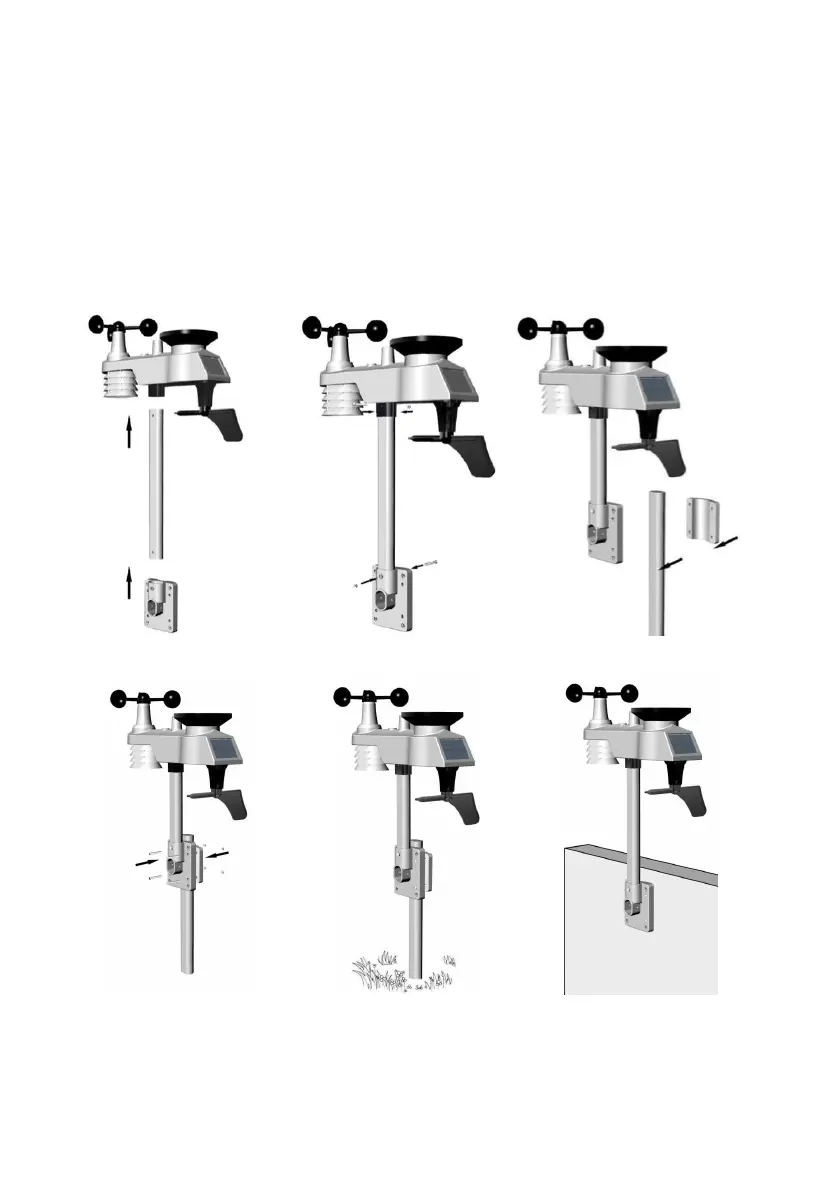

Figure 16
