SAJ AS1-3KS-5.1 - Slave Device Wiring

- 22 -

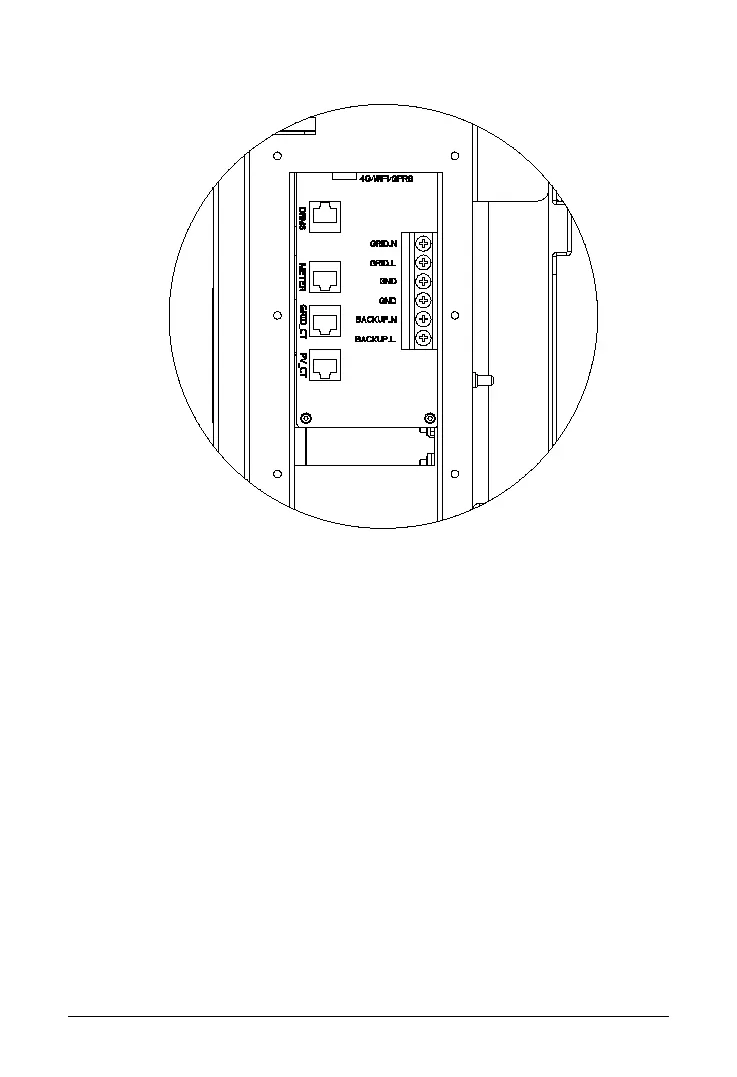

Fig. 4.4 Master device wiring terminals
4.4 Slave Device Wiring
More capacity is required to connect the slave devices in parallel. Disconnect
the battery connector cover of the master device and the slave unit before wiring.
Only 3 lines are required to connect a slave device. (BAT+-BAT+, BAT--BAT-,
LINK-LINK)
