H1 Series
- 18 -
4.4.4 Mount the Inverter
Carefully mount the inverter to the rear panel as shown in Figure 4.6.
Make sure that the rear part of the equipment is closely mounted to the
rear panel.

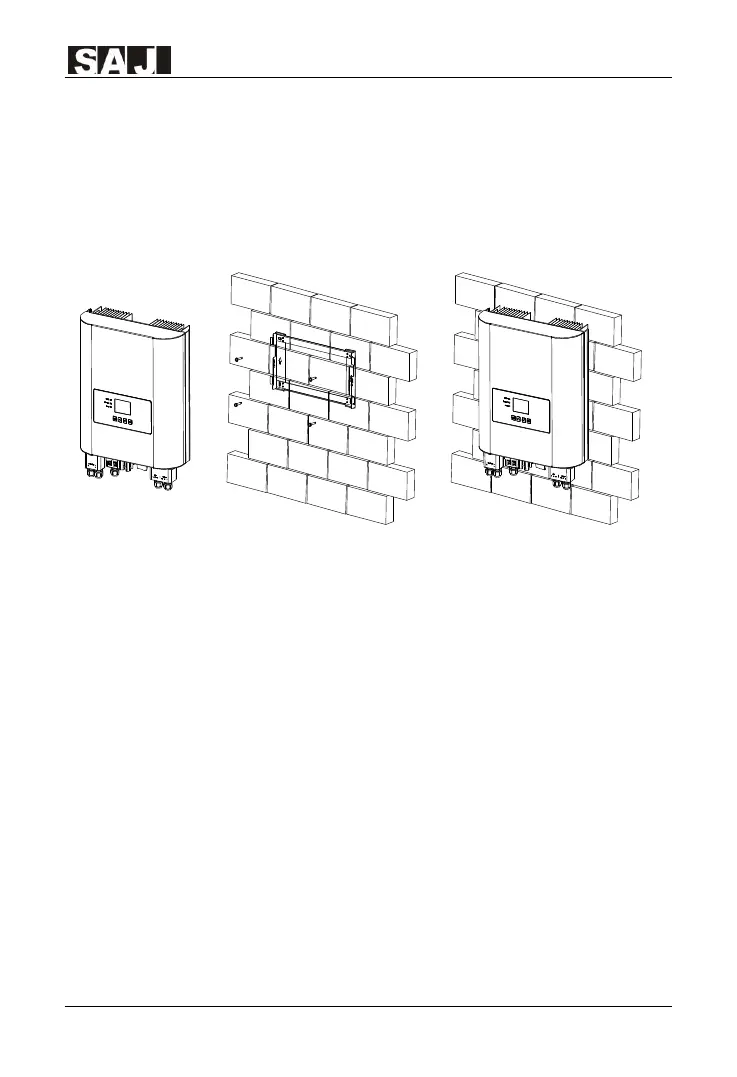

Figure 4.6 Mount H1 inverter
