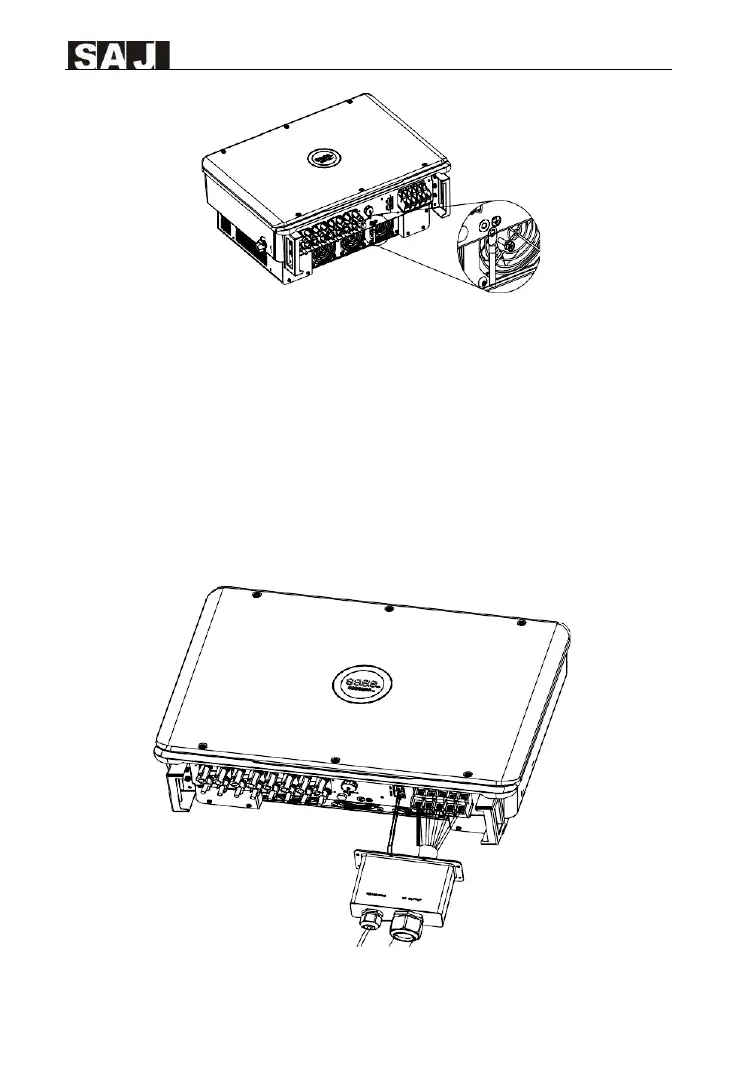

Figure 5.4 Inverter ground protection
2. Screw off the screws at the AC output wire cover and take out the cover.
Penetrate the AC cable of which the insulation layers has been peeled off
through the AC waterproof locking screw hole of the cover. Lock L1 wire, L2
wire, L3 wire, N wire and PE wire tightly as per the marked connection positions
on the interface board.
Figure 5.5 Connect cable

SAJ R6 Series Specifications

General

Category	Inverter
Number of MPPTs	2
Protection Rating	IP65
THDi	< 3%
Cooling	Natural Convection
Communication	RS485, Wi-Fi, Ethernet
Rated AC Voltage	230V
AC Voltage Range	180 V - 280 V
Rated Grid Frequency	50 Hz / 60 Hz
Power Factor	0.8 leading - 0.8 lagging
DC Switch	Integrated
Protection	DC Reverse Polarity Protection, AC Short Circuit Protection
Operating Temperature Range	-25°C to 60°C
