SAJ R6 Series User Manual

R6 Series
- 39 -
Chapter 6 Debugging Instructions
6.1 Introduction of HMI (Human-Machine Interface)

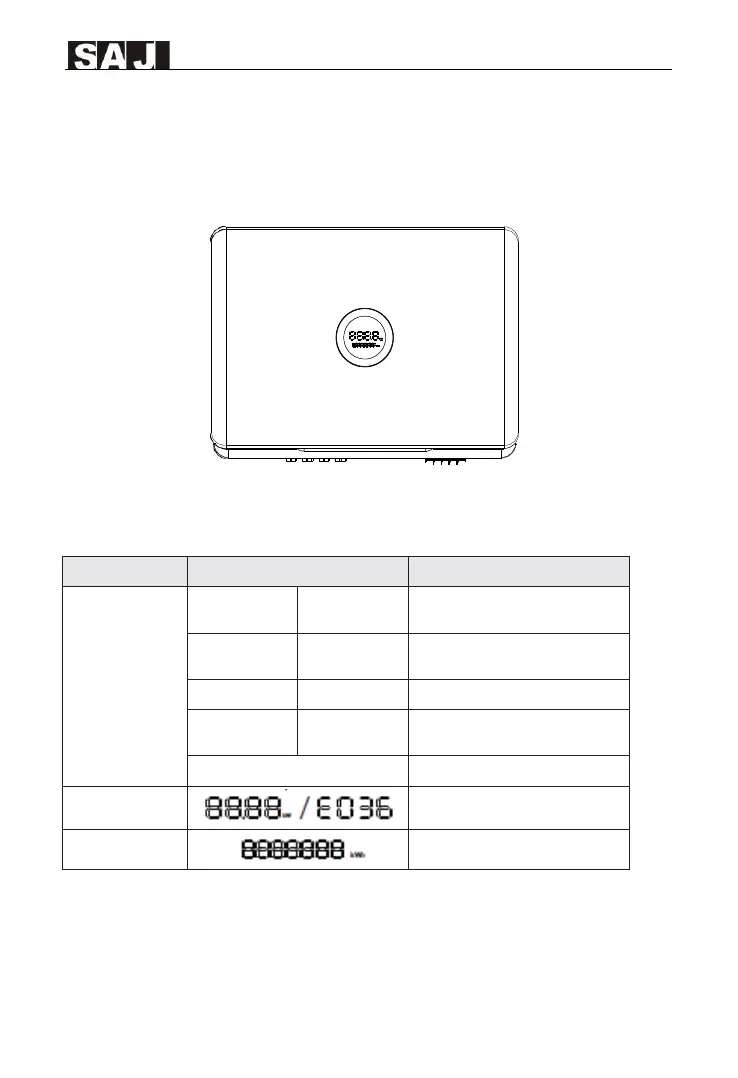

Figure 6.1 Human-Machine Interface
Display
Status
Description
Ring Light
Green
Solid green
The inverter is in normal
on-grid state
Green
Breathing
Mode
The inverter is in the
initialization or waiting state.
Red
Solid red
An error occurs
Red
Breathing
Mode
Software is upgrading in the
inverter.
OFF
Power off
LED Panel 1
Current output power (kW)
LED Panel 2
Total energy (kWh)
Table 6.1 Interface description

SAJ R6 Series Specifications

General

Category	Inverter
Number of MPPTs	2
Protection Rating	IP65
THDi	< 3%
Cooling	Natural Convection
Communication	RS485, Wi-Fi, Ethernet
Rated AC Voltage	230V
AC Voltage Range	180 V - 280 V
Rated Grid Frequency	50 Hz / 60 Hz
Power Factor	0.8 leading - 0.8 lagging
DC Switch	Integrated
Protection	DC Reverse Polarity Protection, AC Short Circuit Protection
Operating Temperature Range	-25°C to 60°C
