Suntrio Plus Series
31

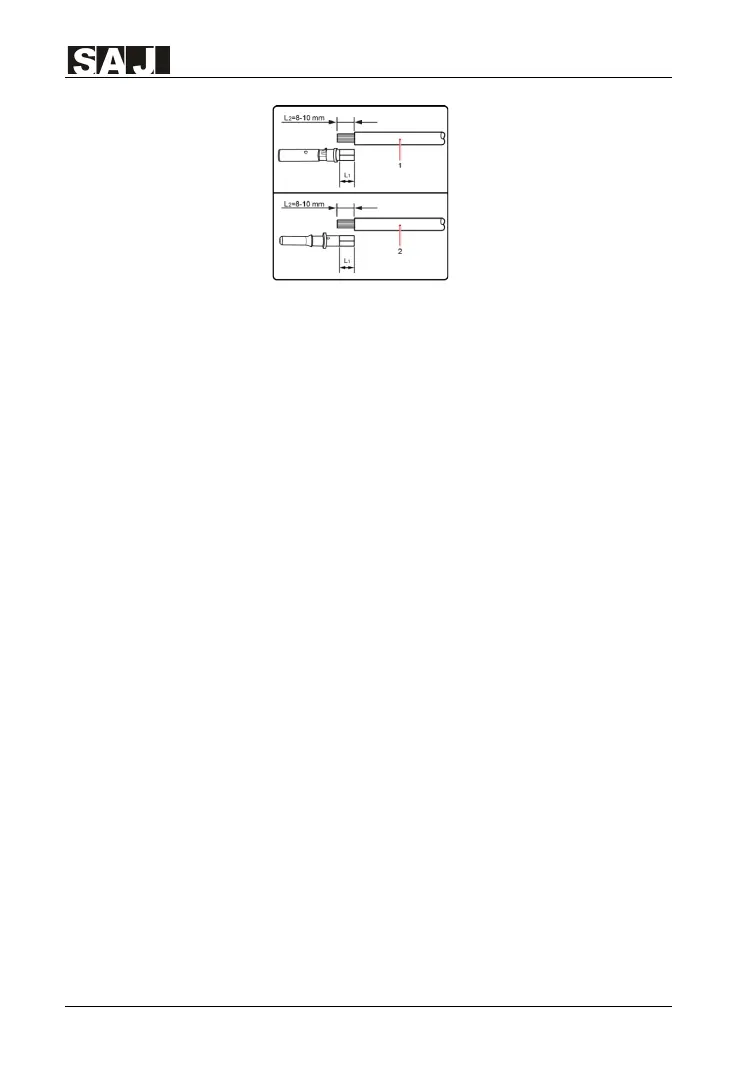

1.Positive Cable 2. Negative Cable
Figure 5.10 Connecting cables
3. Feed the positive and negative cables into corresponding lock screws.
4. Insert the positive and negative connectors into positive cable and
negative cable whose insulated enclosure has been stripped off, and crimp
them tightly with a wire crimper. Make sure that the withdrawal force of the
pressed cable is bigger than 400N.
5. Plug in the pressed positive and negative cables into relevant insulated
enclosure, a “click” sound should be heard when the contact cable assembly
is seated correctly.
6. Fasten the lock screws on positive and negative connectors into
respective insulated enclosure and make them tight.
7. Connect the positive and negative connectors into positive and negative
DC input terminals of the inverter, a “click” sound should be heard when the
contact cable assembly is seated correctly.
