INSTALLATION & SETUP
Installing the Infrared
Abs
o
rbing
Glass
CAUTION: Switch instrument off and unplug the
power cord before beginning.
CAUTION: Always wear gloves when touching the
curing lamp to prevent damage to the
lamp.

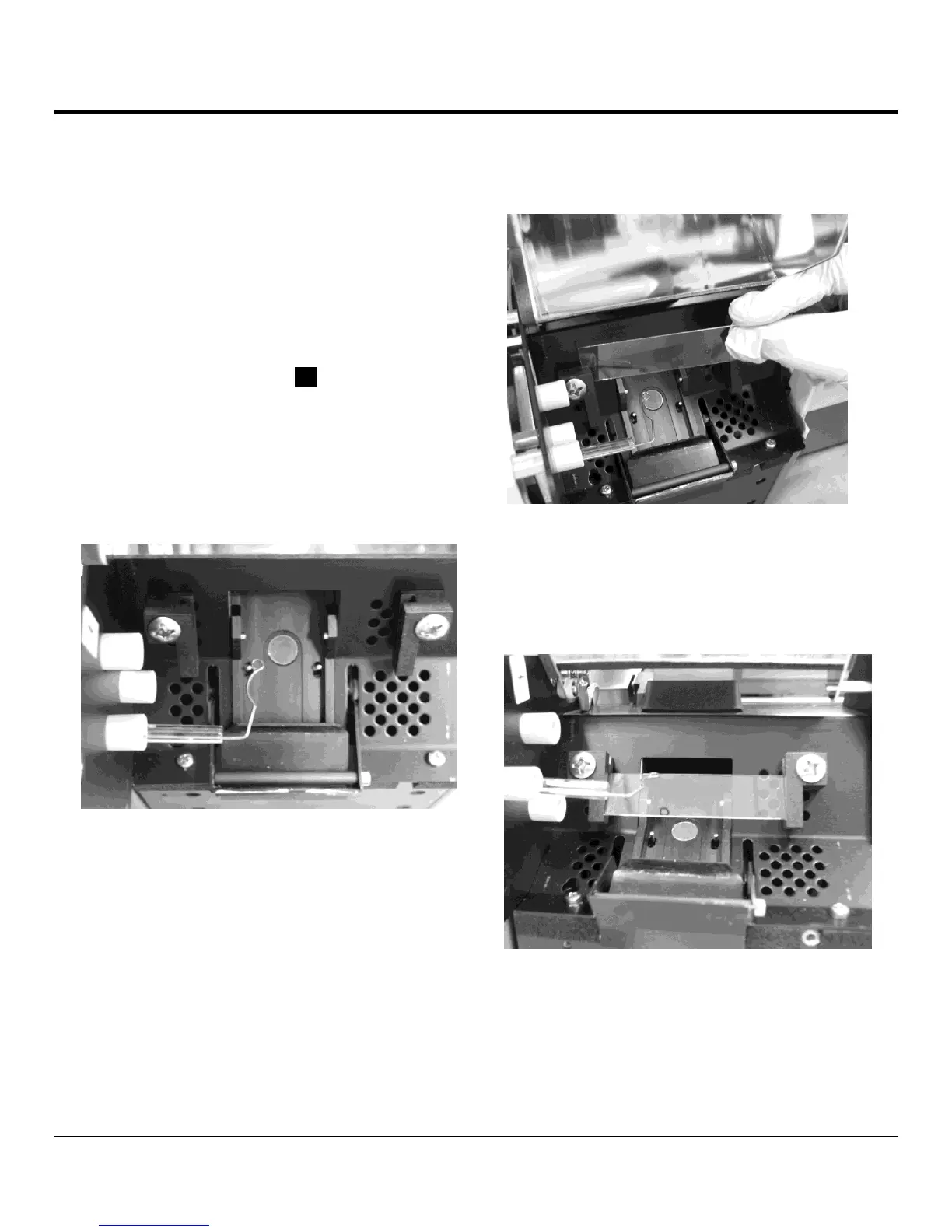

1.
Open the main cover of the instrument exposing the
components.
2.
Locate the reflective cover (
1
Figure 2-W) housing
the curing lamp.
3.
Using the screwdriver provided, remove the screw
and washer located at the bottom of the reflective
cover (Figure 2-W).
4.
Open the reflective cover by moving it upwards
(Figure 2-T).
Figure 2-T
5.
Locate the brackets under the reflective cover (Figure
2-U).
Figure 2-U
6.
Hold the glass from the top and gently insert it in
between the brackets (Figure 2-V).
Figure 2-V
To Next Page
