INSTALLATION & SETUP
2.4 Revised 3/30/2010
Installing the Loading Station
1. Align the direction of the basket receiver with the
direction of the loading station. Insert the pin inside
the loading station into the hole in the basket receiver,
then insert the loading station all the way to the end
(Figure 2-H & Figure 2-I).
2. Fill with solvent until the specified level (approx. 1.5
liters) is reached.
3. Open the loading station access door, grab the
handle, and pull out the loading station receiver.
4. Place the loading station on the loading station
receiver by making sure the basket receiver faces the
right side (Figure 2-J).
5
. Place the dedicated lid on the loading station and
push the loading station back into the system (Figure
2-K).
6. Close the loading station access door.
CAUTION: If the amount of solvent is insufficient, air
bubbles may be introduced and tissues may dry up.

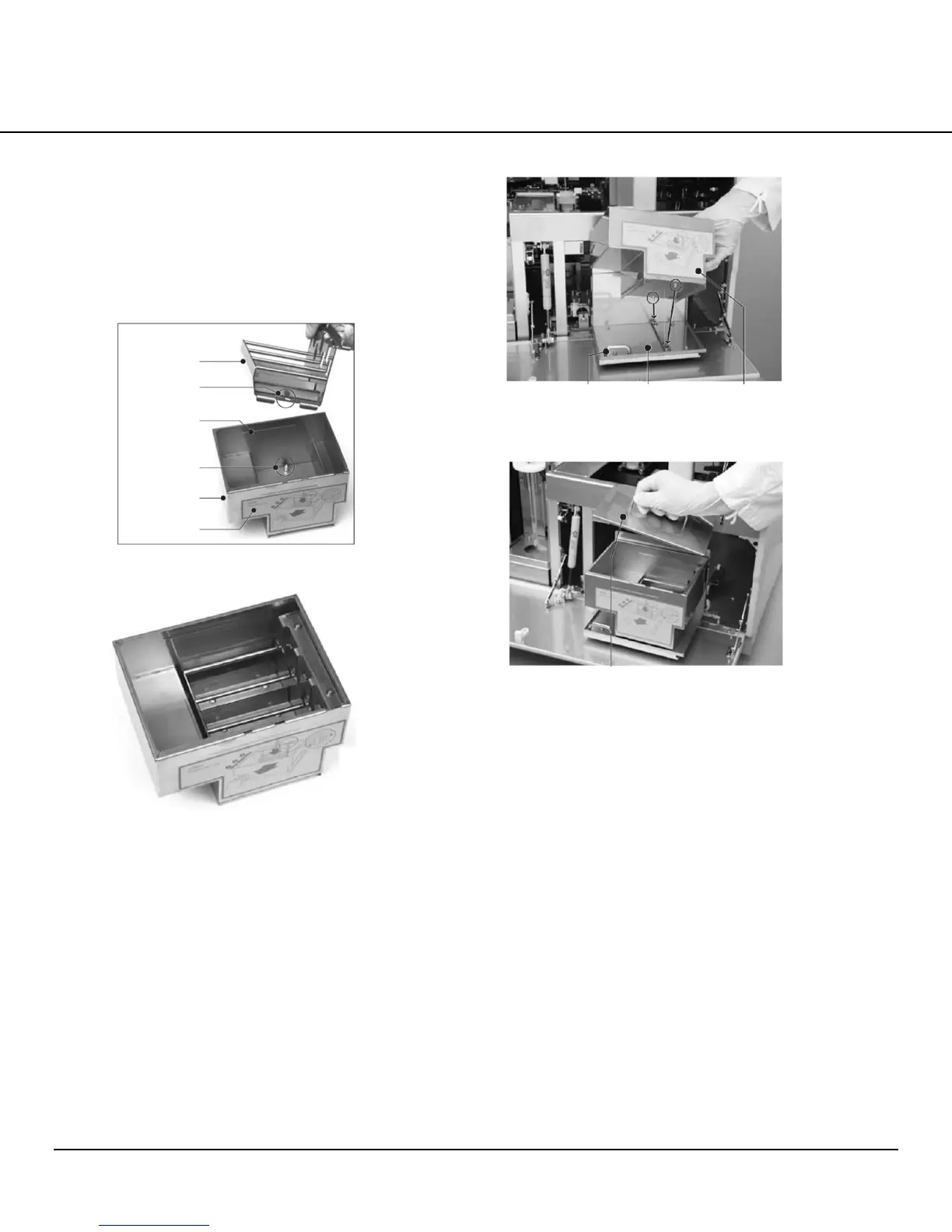

Figure 2-H
Figure 2-J
Basket receiver
Specified fluid level
Loading station pin
Loading station
Label side
Figure 2-I
View of Complete Assembly
Figure 2-K
Handle
Loading station
receiver
Label side
Lid
