INSTALLATION & SETUP
2.10 Revised 3/30/2010
Placing the Cover Glasses
NOTE: Place commercial holders provided by cover glass
manufacturers directly in the system. Dedicated cover
glass holders are also provided as options (sold
separately). When using dedicated cover glass holders,
place cover glasses in the holders (Figure 2-DD).
1. Open the instrument cover.
2. Place the cover glass holder so that the tab of the
cover glass holder fits in the holder.
3. Close the instrument cover.
The following eight types of cover glasses can be used:
24 x 40, 24 x 50, 24 x 55, 24 x 60 (mm)
25 x 40, 25 x 50, 25 x 55, 25 x 60 (mm)

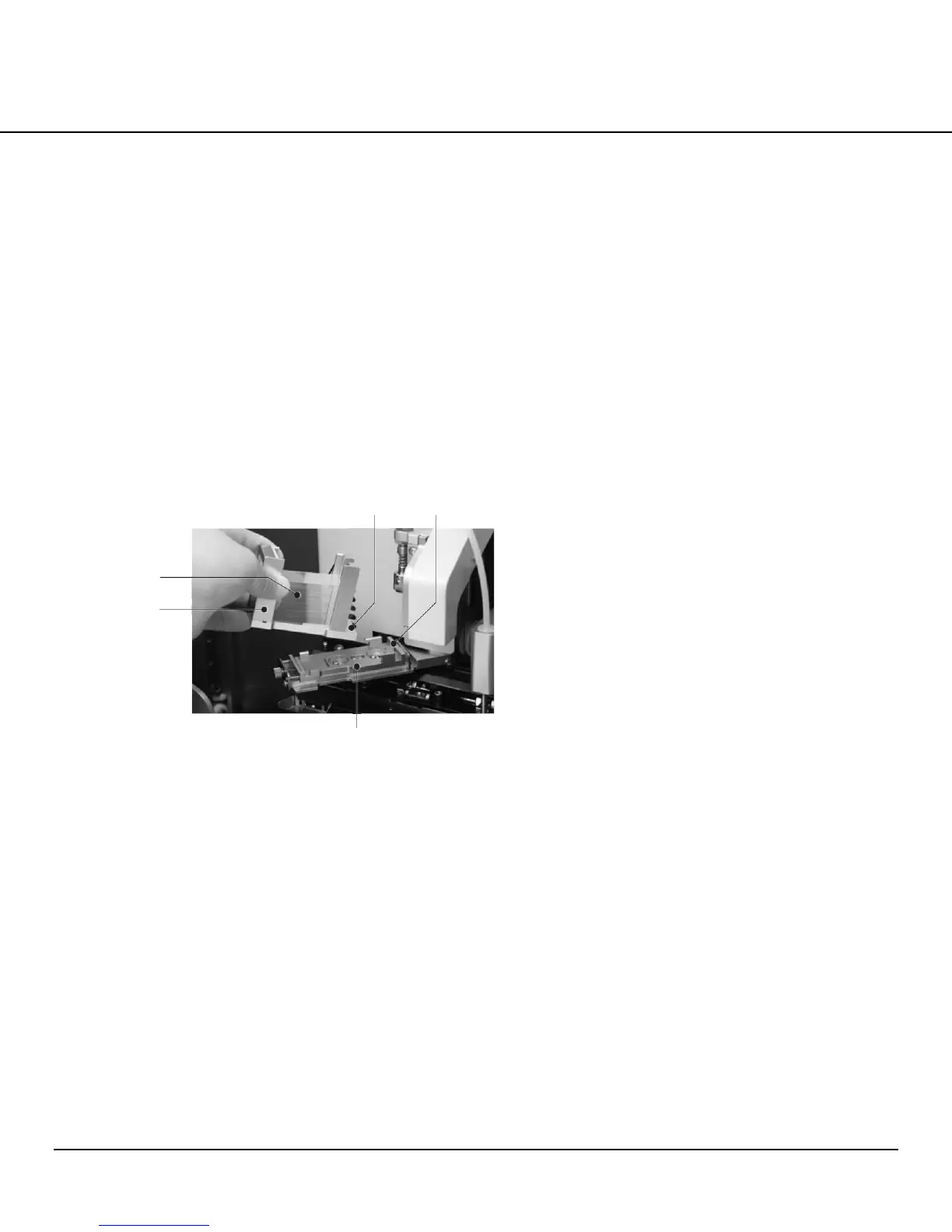

Figure 2-DD
Tab Holder hole
glass
holder
