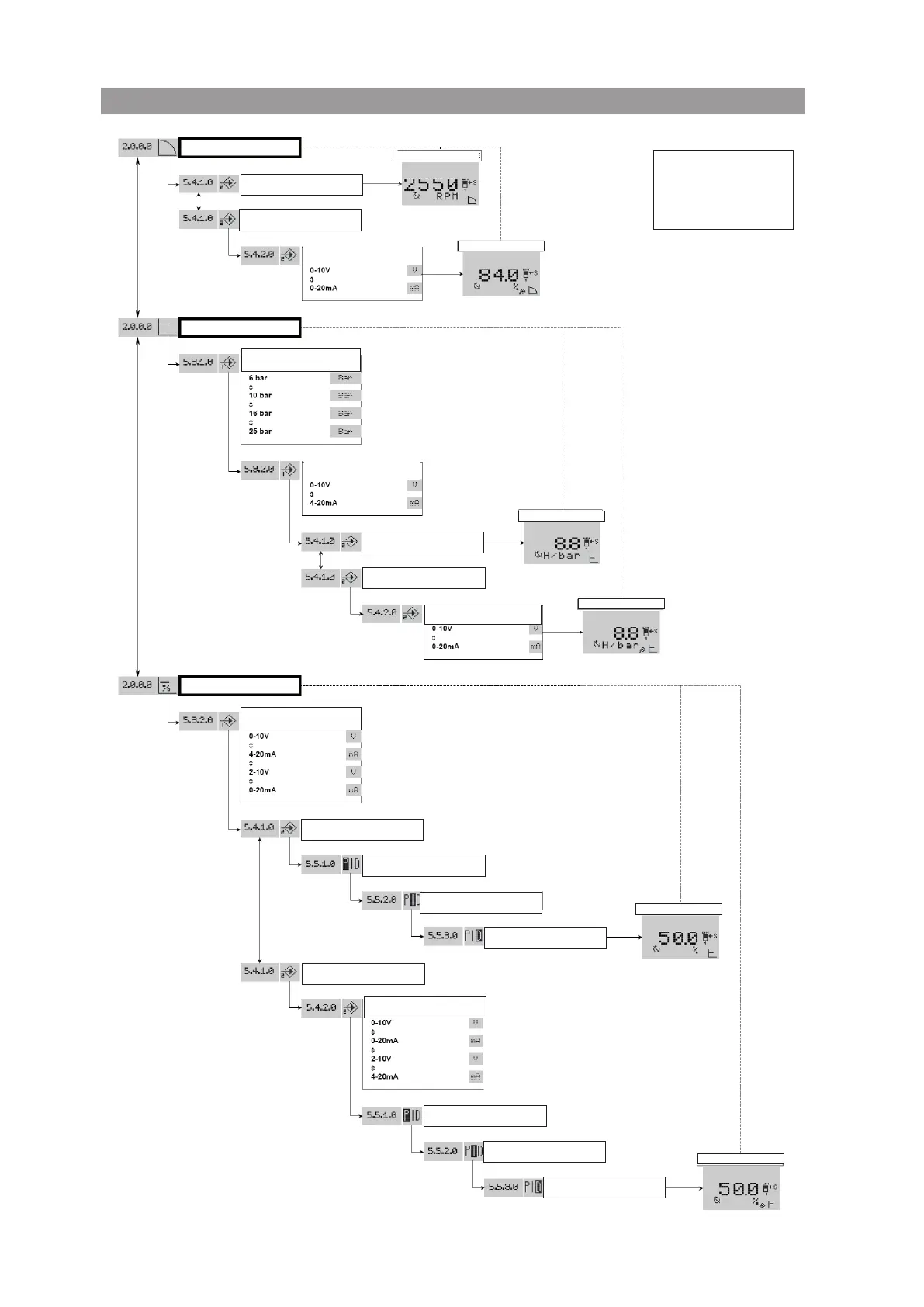

Fig. 14
MENU
EASY
Speed control
With internal setpoint
External setpoint input - IN2
desactivated - Selection OFF
External setpoint input - IN2
activated - Selection ON
External setpoint input - IN2
Selection of the signal type
With external setpoint
With internal setpoint
With external setpoint
With internal setpoint
With external setpoint
Constant pressure
P.I.D. Controle
Sensor input - IN1
Selection of the pressure sensor
Sensor input - IN1
Selection of the signal type
Sensor input - IN1
Selection of the signal type
External setpoint input - IN2
desactivated - Selection OFF
External setpoint input - IN2
desactivated - Selection OFF
External setpoint input - IN2
activated - Selection ON
External setpoint input - IN2
Selection of the signal type
parameterization P.I.D.
Selection value “P” (0.0-300.0)
parameterization P.I.D.
Sélection value “I” (10ms-300s)
parameterization P.I.D.
selection value “D” (0ms-300s)
parameterization P.I.D.
Selection value “P” (0.0-300.0)
parameterization P.I.D.
Selection value “I” (10ms-300s)
parameterization P.I.D.
Selection value “D” (0ms-300s)
External setpoint input - IN2
activated - Selection ON
External setpoint input - IN2
Selection of the signal type
