Pump anti standstill function
The controller performs the function of
protecting pump from anti standstill. It
involves the periodic switching (which 167h
for a few seconds). This protects the pump
against immobilization due to scaling.
Therefore, during a break in the use of the
controller, the controller power supply should
be connected.

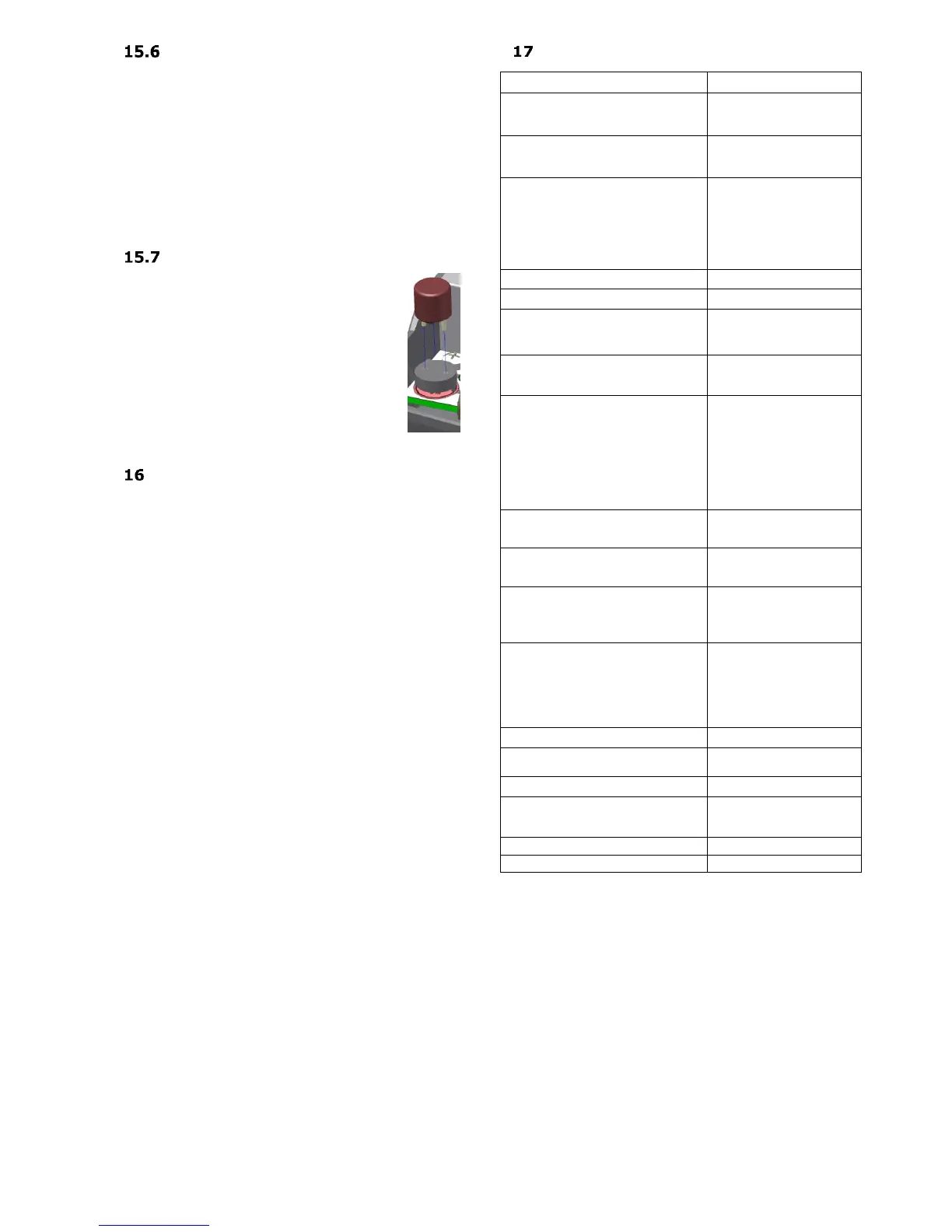

Fuse replacement
Cut off power supply to the controller
before fuse replacement.
Use 1.25A time-delay subminiature
fuse with minimum interrupting
current of 100A should be used, as
per IEC 60127 standard.
To replace open controller's
enclosure and replace burnt fuse
with a new one.
Storage and transport conditions
The controller cannot be exposed to
immediate effects of atmospheric conditions
i.e. rain or sunrays. Temperature of storage
should be within scope 0…65ºC.
Technical data
Power
230V~, 50Hz
Maximum current consumption
with loaded outputs
3(3)A
Maximum current consumption
without loaded outputs
0,02A
Output current
Pump:
Mixer actuator ON:
Mixer actuator OFF:
Heat source contact:
1,5(1,5)A/230V
0,5(0,5)A/230V
0,5(0,5)A/230V
0,5(0,5)A/230V
Controller’s level of protection
IP20
Outer temperature
0...40C
Storage temperature
0...65C, without direct
sunlight
Relative humidity
10 - 90%, without
steam condensation
Measuring inputs, temperature
(low voltage)
T1 – mixer temp.
T2 – external temp.
T3 – return temp.
T4 – heat source
temp.
T –room thermostat
input
Measuring scope of sensors’
temperature CT10
0..100C
Measuring scope of sensors’
temperature CT6-P
-35..40C
Accuracy of measuring
temperature with sensors CT10
and CT6-P
±2C
Clamps for network and signal
Screw clamps, wire
profile up to 2,5mm
2
,
tighten moment
0,4Nm, isolation lenght
6mm
Display
Graphic 128x64
Dimensions
140x99x43 mm
Weight
280g
Norms
PN-EN 60730-2-9
PN-EN 60730-1
Software class
A
Mounting
on the wall
Note:
…………………………………………………………………………………
…………………………………………………………………………………
…………………………………………………………………………………
…………………………………………………………………………………
…………………………………………………………………………………
…………………………………………………………………………………
…………………………………………………………………………………
