Operating the regulator
The controller has
TOUCH&PLAY system that
facilitates its operation.
Encoder is operated by its
rotating and pressing.
To start the controller, keep
pressed encoder knob for 3
seconds. When the message
"Active regulator?" must set YES. The screen
will display the main screen. Another press
will call the main menu.
Rotate the encoder TOUCH&PLAY increases or
decreases the value
parameter being edited. It
is the element of quick
operating of the regulator.
Short press the encoder to
input the selected
parameter or approval of
the selected value.
Pressing for 3 seconds to exit the selected
parameter or do not accept the selected
value.
All controller settings are made through a
rotary system MENU. After calling up the main
menu on the screen will display a screen with
icons representing the functions of the
controller.

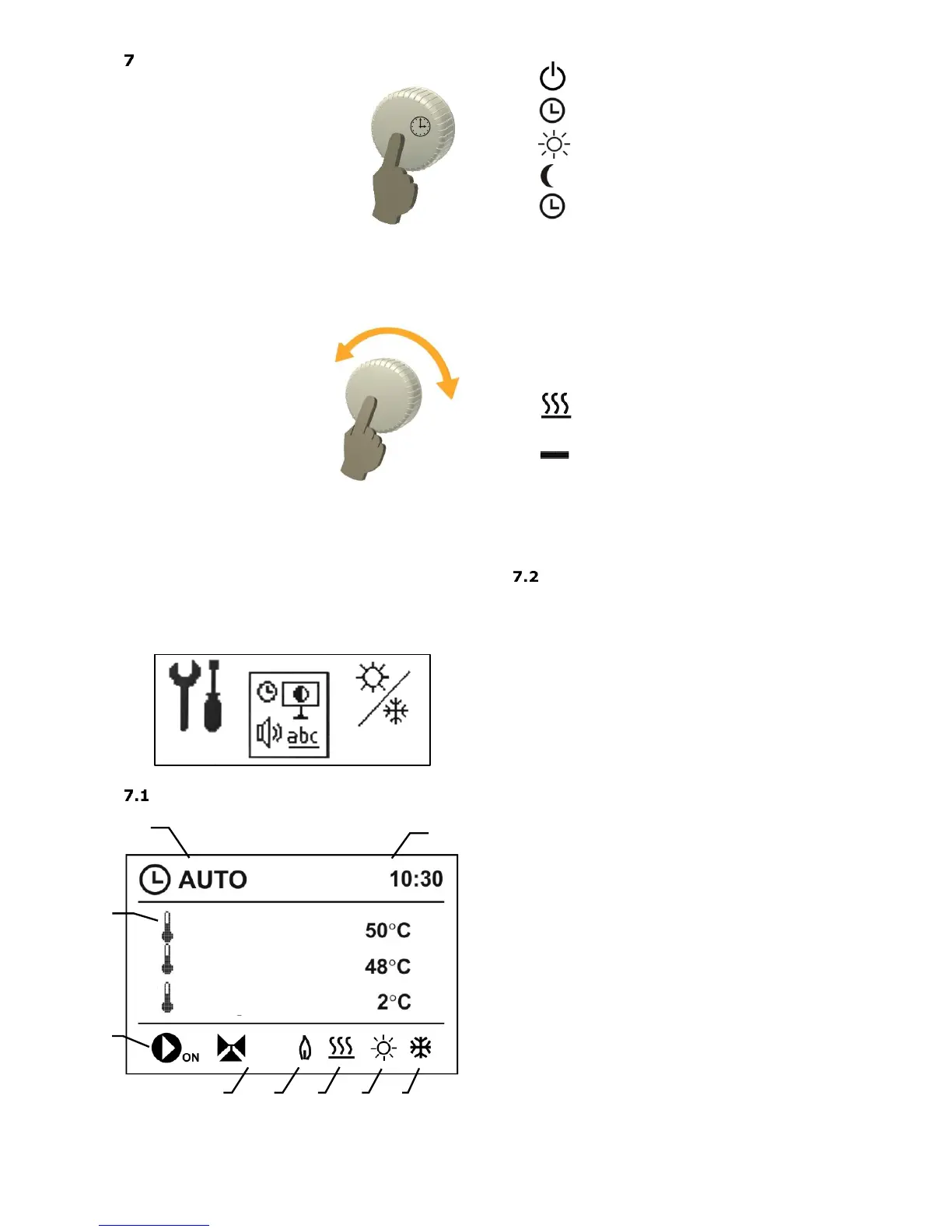

Description of display main window
1. Regulator working modes:
- OFF mode
- AUTO mode (work with clock)
- COMFORT mode
- ECONOMY mode
- AUTO-ECO mode
2. temperature value: preset, current and
external (weather)
3. work pump CH: ON, OFF
4. valve mixer actuator position: ON – open,
OFF – closed, STOP - off.
5. working heat source (boiler switched on)
6. information from the room thermostat:
No icon – the thermostat is off,
– Heating – room temperature below
the preset,
– No heating – room temperature
above the preset.
7. active SUMMER mode
8. active frost protection function
9. clock time and weekday.
Controller operation
Heat source:
The controller controls the operation of heat
source, e.g. an automatic gas, oil or pellet
boiler, by activating or deactivating it
according to a heat demand of the central
heating system. Switching on and switching
off the heat source may be programmed in
intervals times, in the Schedule menu.
Heating circuit:
The controller controls the operation of one
direct heating circuit (radiators or floor) with
mixing valve and circulating pump. The
control heating circuit (decrease preset
temperature) can be programmed in intervals
times, in the Schedule menu.
The method of temperature control:
Weather control - on the basis of the signal
from the external (weather) temperature
sensor is calculated water temperature in
the heating circuit. As a result, despite the
changing external temperature room
temperature in heated rooms is
maintained at a preset level.
