The installed burner should have a voltage of 230 V, 50 Hz and should be equipped with an
ionisation flame control system, timers and a gas pre-purge system which is triggered
automatically when the ignition button is pressed, delaying the functioning of the burner until the
pre-purge operation has been carried out.
The maximum working field of the burner depends on the counter-pressure in the combustion
chamber.
1.8 CHIMNEY
The oven needs to have TWO INDEPENDENT CHIMNEYS for a proper installation, one in order to
allow the exhaust gases coming out, and a fumes damper, in order to allow the fumes coming out
from the baking chamber.
The installation of the chimneys should be carried out by authorized professionals according to each
country regulations.

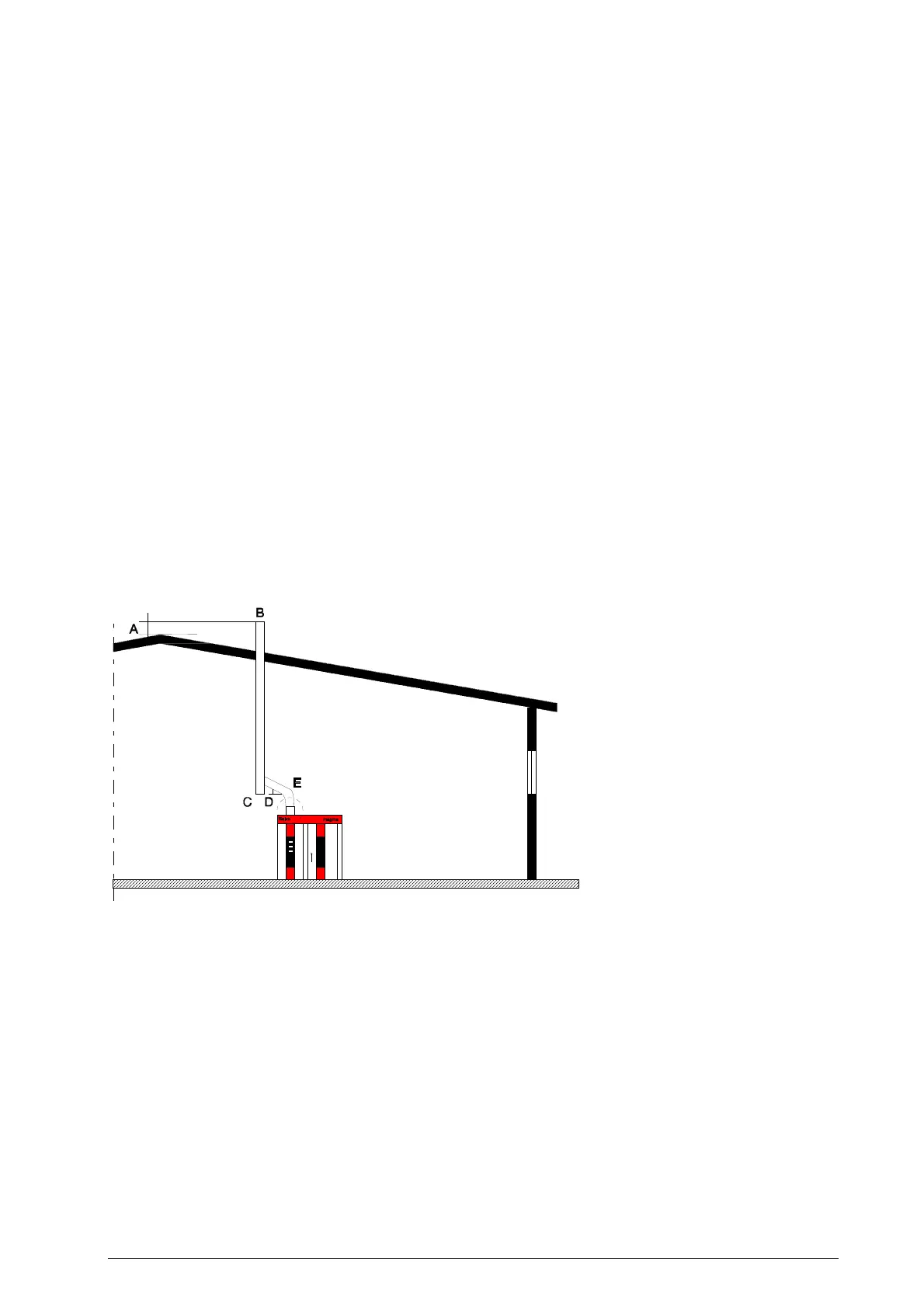

Fundamental aspects for the installation:
A.- The top of the chimney must
be, at least, 1 meter (3 ft) higher
than the upper part of the roof. Or
than any other obstacle within 10
meters (30 ft) distance.
B.- If you want a hood on the top of
the chimney, this must be made
with the same diameter as the
chimneys damper. And a cone
must be placed inside the hood to
make the fumes draft easier.
C.-The chimney should incorporate
a system for preventing backflow of
condensates.
D.- Sections should not be horizontal, but should instead have a slope of at least 10º.
E.- Bends or elbows of radius less than twice the tube diameter should not be made.
