SALVA INDUSTRIAL, S.A Horno Sirocco 00 Gas-Gasoil 50-60Hz (ing)121206.doc
2-2
SP-22, SR-22, SK-22
SP-23, SR-23, SK-23

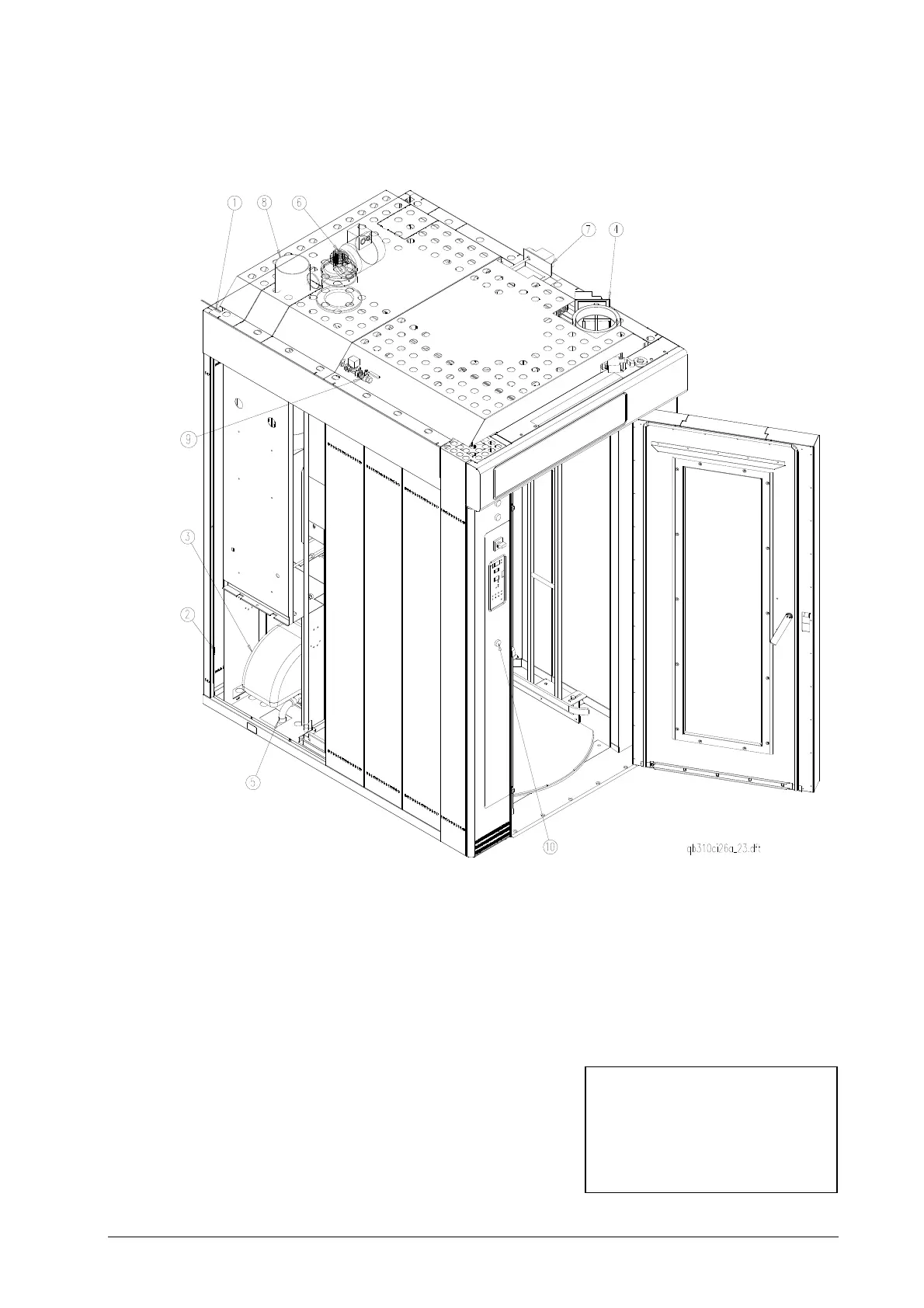

FIG. 4
1- Power intake.
2- Gas/diesel inlet.
3- Burner.
4- Baking chamber damper.
5- Drain.
6- Reduction gearbox. (*)
7- Scavenging air inlet. (optional).
8- Exhaust gases outlet.
9- Solenoid valve. Oven water inlet.
10- Control circuit cabinet.
(*)NOTE: Do not excessively press the
insulation against the reduction gearbox
insulation retaining plate, so that an
adequate ventilation of the reduction
gearbox is achieved.
