Pump Speed 2 - Fastest Spray Pump speed for dual speed pumps (if fitted). Only speed if single speed pump
is fitted.
Back Frame Lock (30m +) - Locks the Back Frame horizontal to the chassis. Press this button before folding
and unfolding the Spray Booms. Failure to Lock the Back Frame before folding / unfolding the Spray booms
could result in damage to the Spray Booms / surrounding areas. (On 30m booms and above).
Back Frame Unlock (30m +) - Unlocks the Back Frame. Press this button after unfolding the Spray Booms,
before crop spraying and once the Spray Boom is folded into the boom rests. (On 30m booms and above).
The Back Frame Unlock / Lock has a 12 second delay built into it which ensures the Lock has time to fully
operate.
Left Hand Headland Nozzle - Controls the Headland Nozzle (when fitted) on the Left Hand Spray Boom.
Right Hand Headland Nozzle - Controls the Headland Nozzle (when fitted) on the Right Hand Spray Boom.
Headland Lift - Controls the Headland Lift (when fitted), when the Main Spray ON/OFF is switched OFF, the
Spray Boom will automatically rise up. When the Main Spray ON/OFF is switch ON, the Spray Boom will return
to the previous spraying height.
Main Spray Tank - Selects the Main Chemical Tank to spray from.
Clean Water Tank - Selects the Clean Water Tank to wash the Spray System & Main Spray Tank from.
Tank Wash - Selects the Main Tank Wash Nozzles.
4WS Engaged Spray OFF - While Field Mode is selected, 4 Wheel Steering is engaged when the Main Spray
ON/OFF is OFF (without the need to press the Foot Switch).
4WS Engaged Permanently - While Field Mode is selected, 4 Wheel Steering is engaged permanently
(without the need to press the Foot Switch).

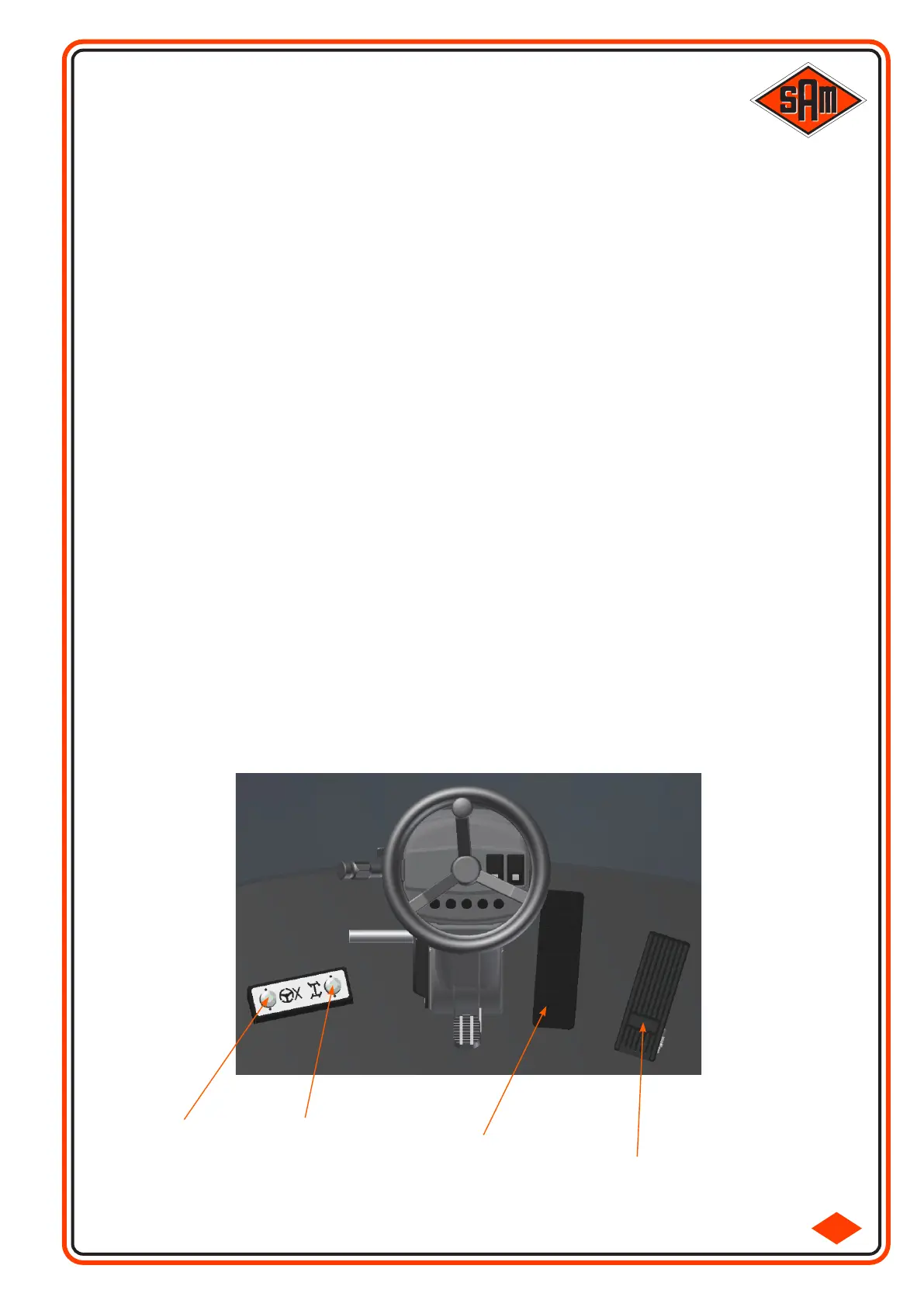

ARMREST CONTROL CONSOLE Cont..........
4WS Foot
Switch
Brake Pedal
Travel Pedal
(Horizon 5500 option)
Auto Steer
Foot Switch
OR
Main Spray
ON/OFF Foot
Switch (option)
FLOOR
