Sam Horizon - Overhead Electronic Dash Display

23
10:42:27
!
!
Engine
RPM
CAN BUS
Message
Engine
Hours
Current
Time
Hydraulic
Oil
Temp
Engine Coolant
Temp
Add Blue
Quantity
Fuel
Quantity
2.1-9

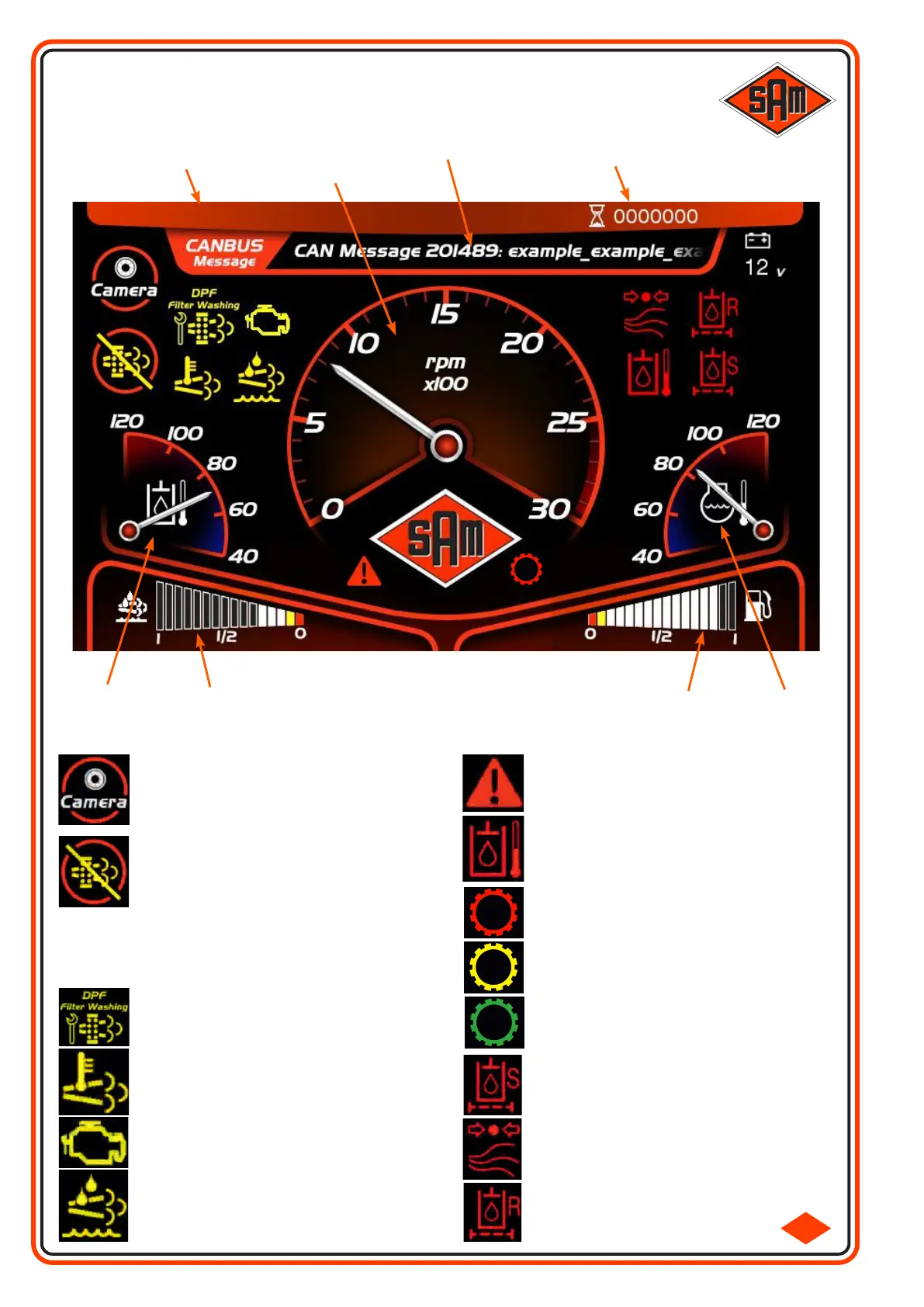

OVERHEAD ELECTRONIC DASH DISPLAY
Pressing the illuminated button to the left will switch to
Rear View Camera. (Press again to switch back to
Dash View. Automatically Switches to Camera view
when reversing & Camera is fitted.
When Illuminated & Flashing, press the illuminated
button to the left to Start DPF Regeneration Process.
Sprayer must be in Neutral with Park Brake applied. It
is suggested that Regeneration is only allowed to take
place with Sprayer in a safe location. Sprayer MUST
NOT be used while regeneration is in progress.
Regeneration requests should not be ignored, if
delayed too long, Deutz Engine warranty will be void.
Regeneration can be paused if required by pressing
again. Refer to Deutz Manual.
DPF (Diesel Particulate Filter) must be replaced -
Please contact SAM.
DPF Temperature Warning / DPF is regenerating.
Engine Fault. Read Fault Codes displayed at top of
screen and contact SAM.
EAT Fault. Read Fault Codes displayed at top of
screen and contact SAM.
Fault Warning. Read Fault Codes displayed at
top of screen and contact SAM.
Hydraulic Oil Temperature too High.
Transmission System:
Brake Pedal Assist Pressure Low (Horizon
4000).
Transmission System:
Poclain Error (Horizon 4000 & 5500).
Transmission System:
Anti Slip Active (Horizon 5500 & 4000 fitted with
Smart Drive).
Hydraulic Suction Filter & O Ring must be
replaced.
Vehicle Air Pressure too Low.
Hydraulic Return Filter & O Ring must be
replaced.
