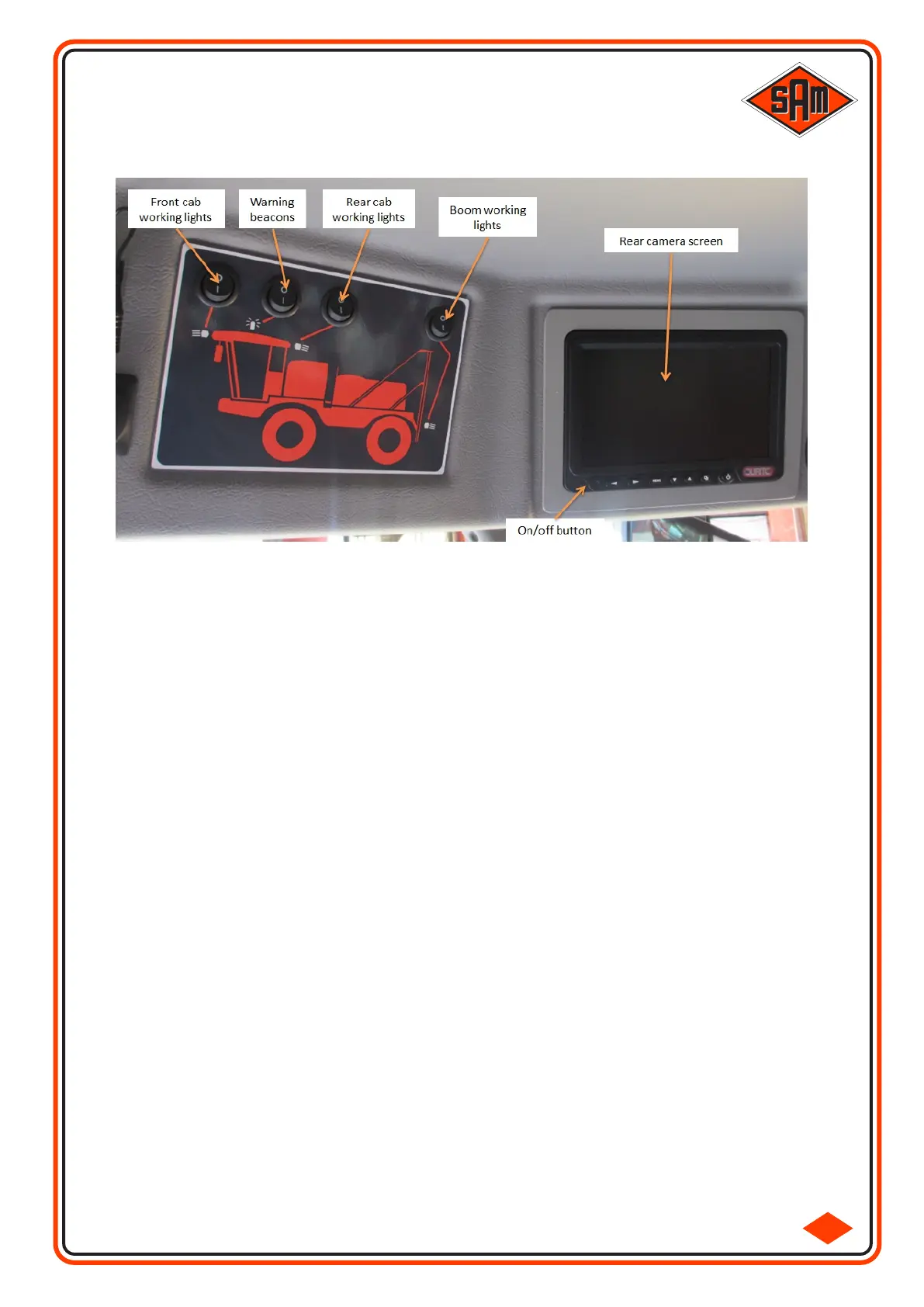

The above picture shows the two overhead control panels, the radio and climate control panels are exactly the
same as other Horizon machines.
The left panel identifies the four switches which operate the front/rear cab working lights, the warning beacons
and the boom working lights.
The right panel identifies the Rear camera screen which comes into operation when the ignition is on and the
screen on/off button is pressed.
MACHINE CONTROLS 3000, 3000E & 3500
Overhead console
