26

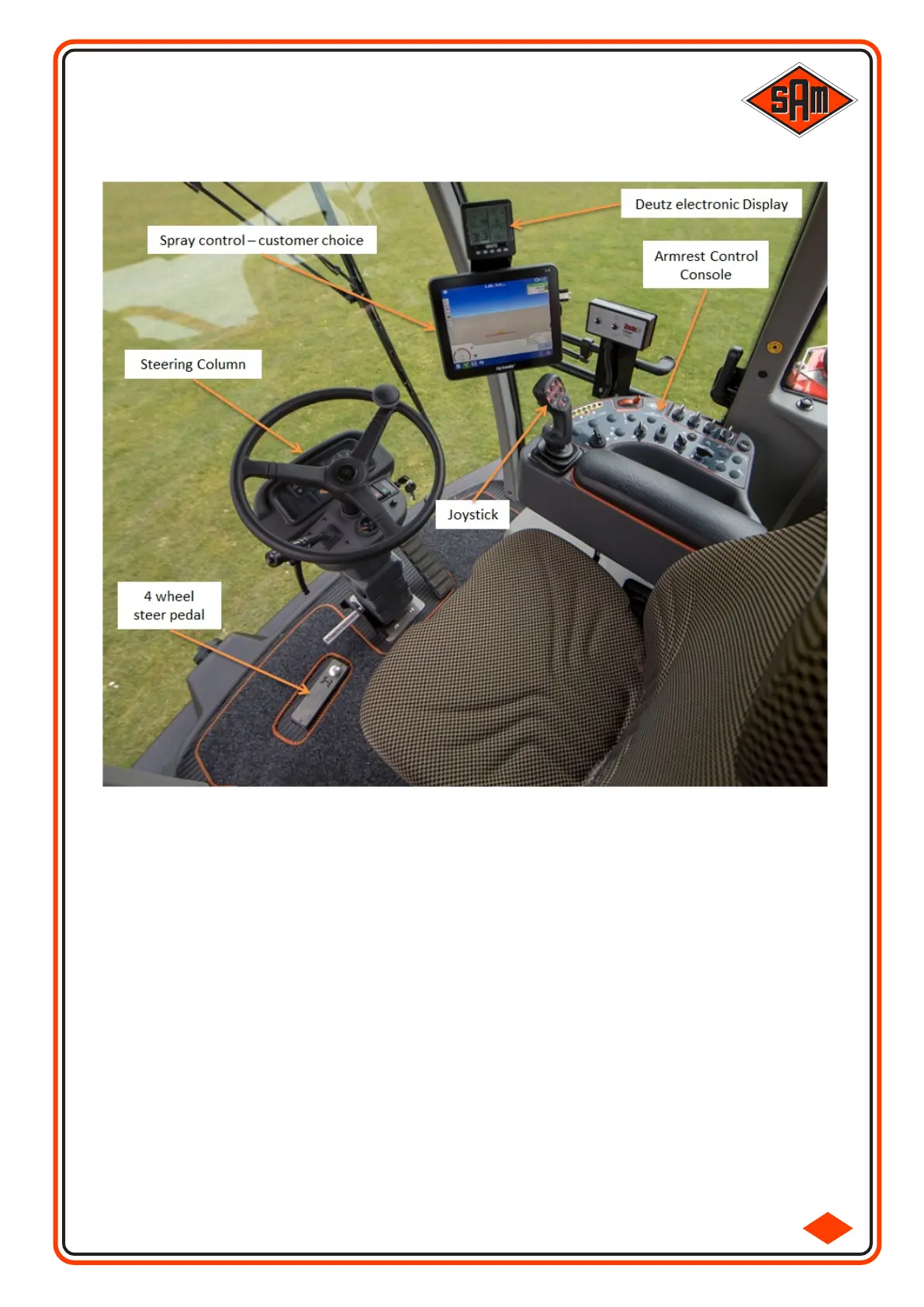

The Horizon 3000, 3000E & 3500 Cabin is different to the remainder of the other Horizon machines.
This Section is only to identify any differences in Cabin layout -
The main components are identified above and then explained in further details on the subsequent pages.
Steering Column - 2.2-2
Armrest Controls - 2.2.-3
Joystick - 2.2.-4
Overhead Console - 2.2-5
Section 2-2
MACHINE CONTROLS 3000, 3000E & 3500 - Cabin
2.2-1
