SECTION III USE

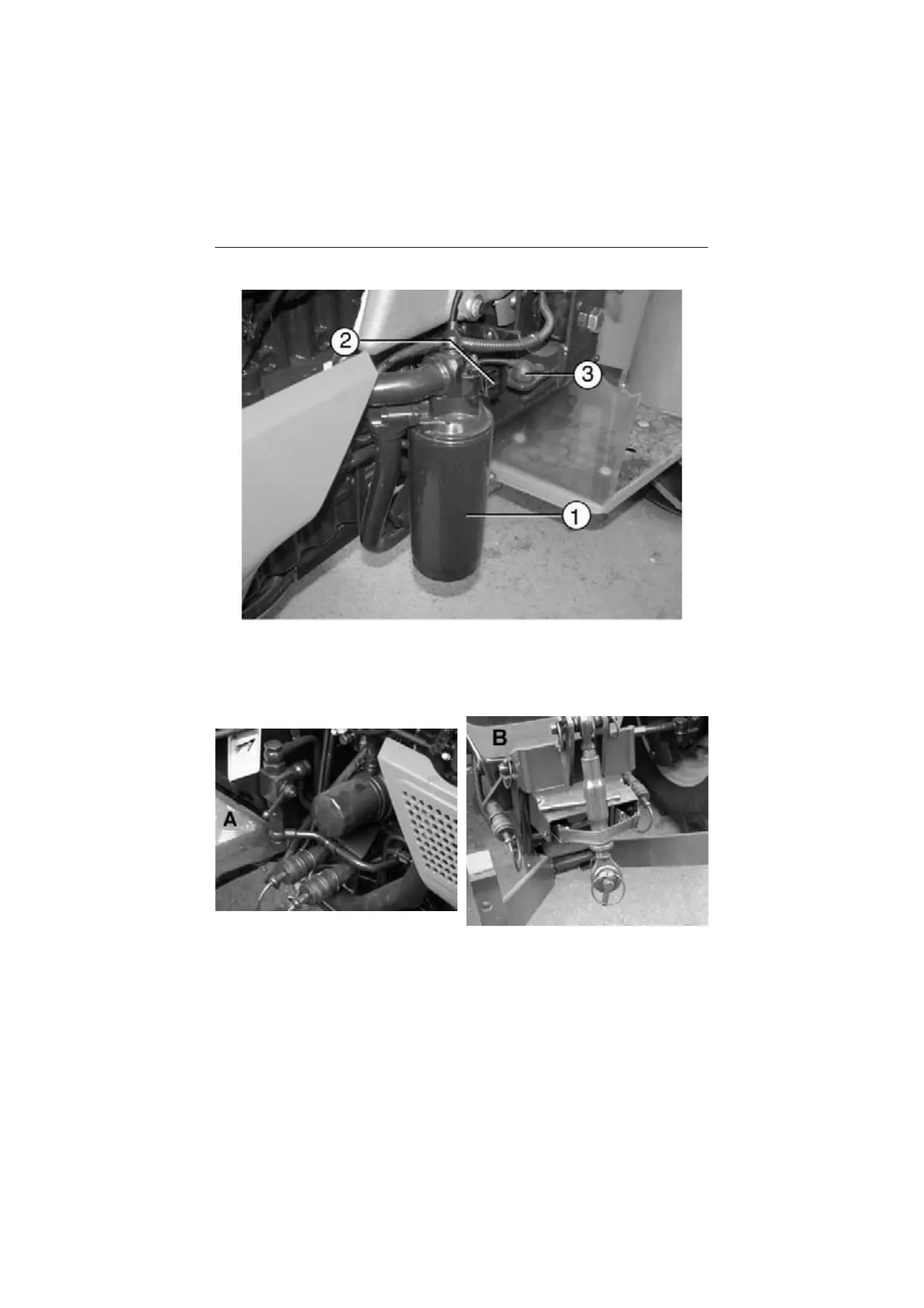

Hydraulic oil filter

1 - Hydraulic oil filter

2 - Electrical power socket

3 - Start enabling switch connected to the clutch pedal.

A - Centrally located hydraulic couplers on the right side of the tractor

To operate the couplers, first shut off the front lift at the cock to one side, then move

lever 2, page 56, to operate the auxiliary control valves.

B - Hydraulic couplers at the front of the tractor

To operate these couplers, use lever 1, page 56.
