SECTION VI ELECTRICAL SYSTEM

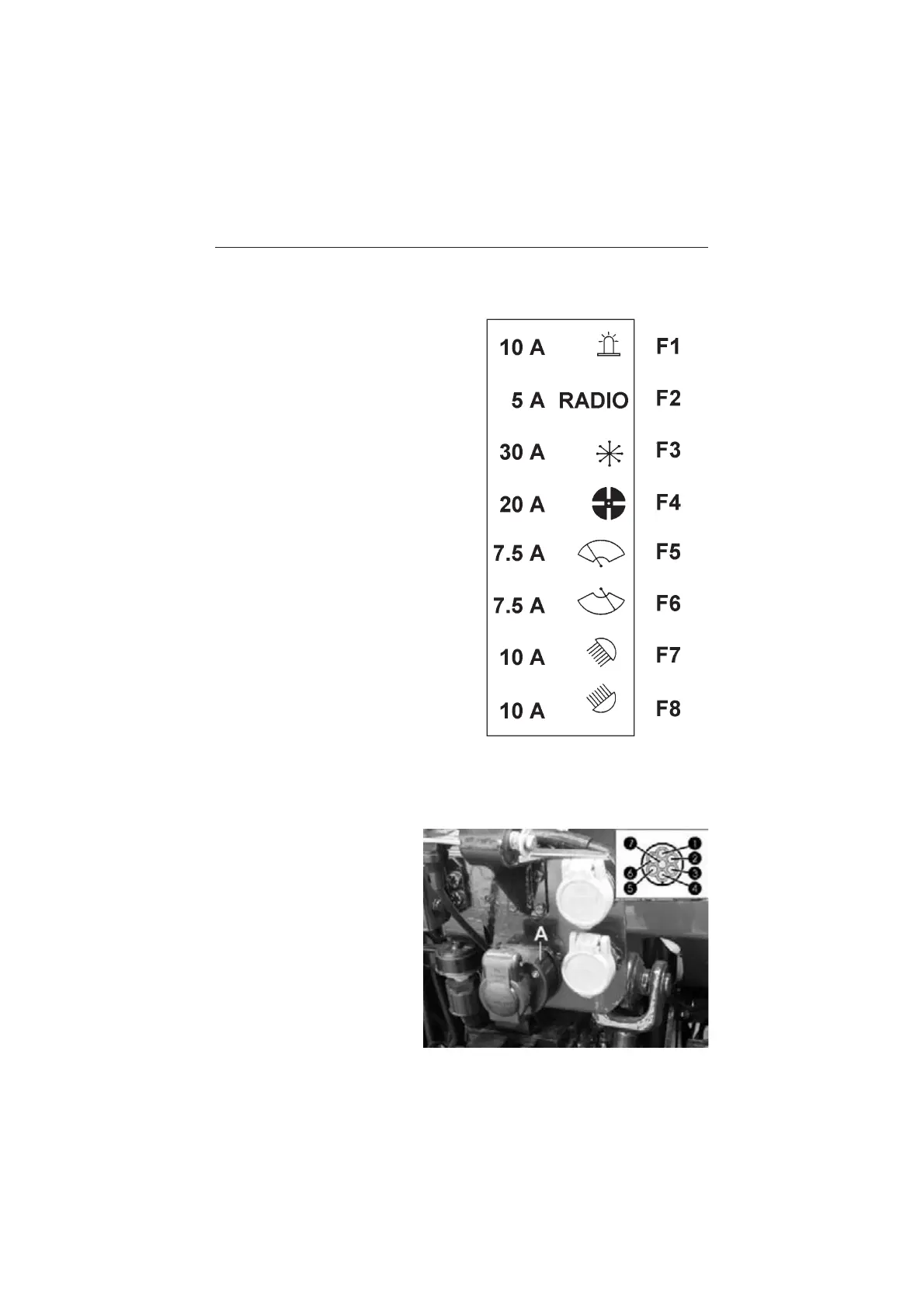

Cab fuse box
F1 - Flasher unit
F2 - Radio
F3 - Air conditioning
F4 - Blower/heater
F5 - Front wiper
F6 - Rear wiper
F7 - Front work lights
F8 - Rear work lights
Rear outlet socket - standard
A = Outlet socket standard
1 = LH sidelight and direction
indicators
2 = ---
3 = 31 – ground
4 = RX sidelight and direction
indi ators
5 = 58 R - Sidelight DX
and registration plate light
6=54-STOP
7 = 58 Rear light
168
