SAME SOLARIS 45 User Manual

SECTION VI ELECTRICAL SYSTEM

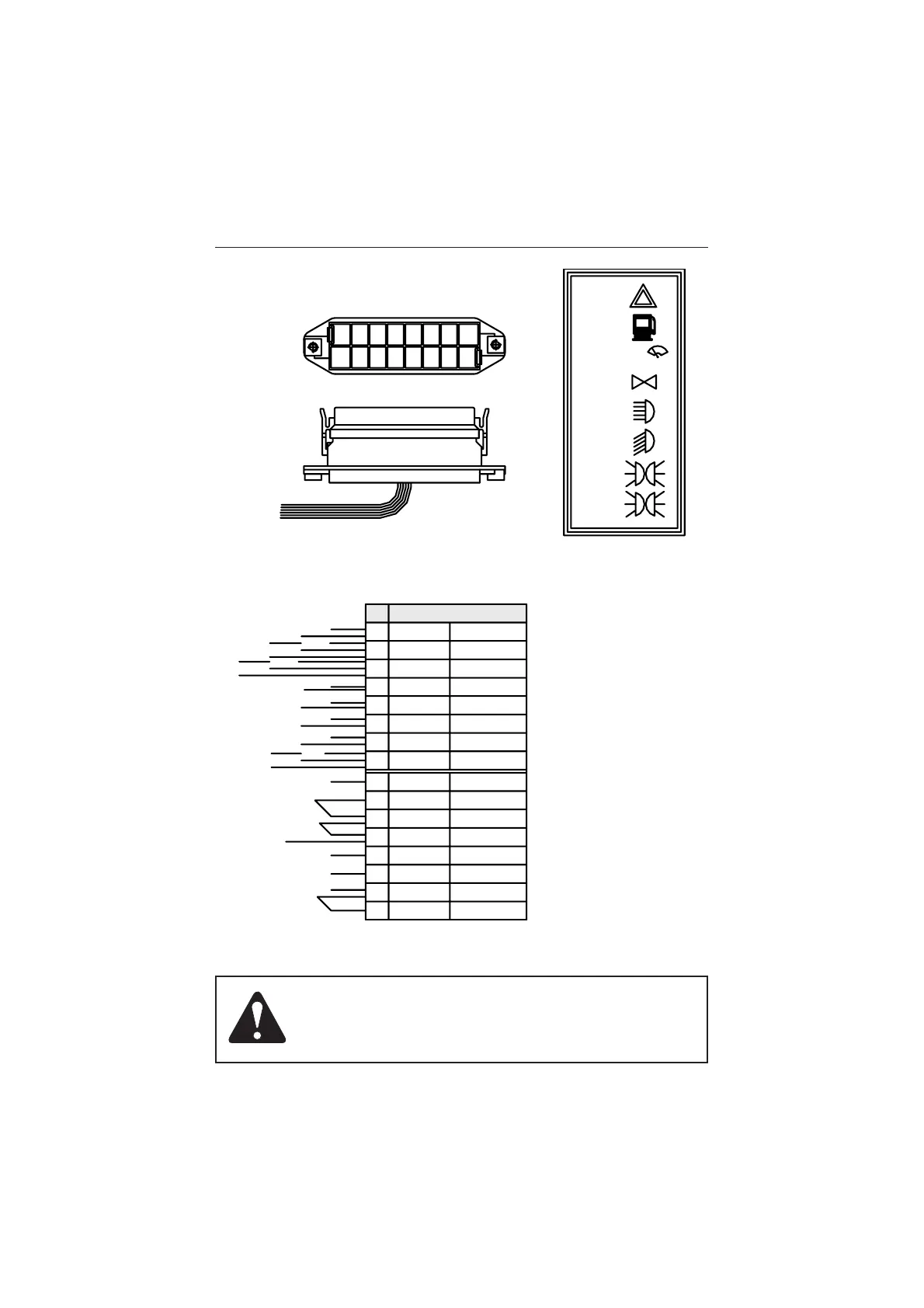

Fuse box
- cod. 009.4450.0
164
8
67
FG
H
543
CDE
1
A
2
B
MB 1
POSITIONS
STEERING GEAR
SWITCH
FULL BEAM H.
LIGHTS
DIPPED H.
LIGHTS
+ UNDER KEY
+ UNDER KEY
+ UNDER KEY
+ DIRECT
POSITIONS
POSITIONS
DIPPED H.
LIGHTS
FULL BEAM H.
LIGHTS
DIRECTIONS
STOP/EL.
PUMP/EL.
EMERGENCY
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
H
RV 1
MB 1.5
V1.5
G1.5
G1.5
H1.5
V1.5
HR 2.5
M1.5
HR 2.5
HR 2.5
RV 1
RV 1
V0.5
HN 1
H1
GN 1
GN 1
G1
G1
G1.5
FUSIBILIERA
FUSES BOX
EMERGENZA
POMPA/EL.
STOP/EL.
DIREZIONI
ABBAGLIANTI
ANABBAGL.
POSIZIONI
POSIZIONI
+ DIRETTO
+ S/CHIAVE
+ S/CHIAVE
+ S/CHIAVE
ABBAGLIANTE
ANABBAGL.
DEVIOGUIDA
POSIZIONI
R1.5
R1
HR 1
V1
HR 1
STOP
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A

SAME SOLARIS 45 Specifications

General

Engine Power	45 hp
Hydraulic System	Open center
Drive	4WD
PTO Power	38 hp
Hydraulic Remotes	2
Engine Type	Diesel
PTO	540 rpm
Displacement	2.9 liters
Tire Size - Front	7.5-16
