SECTION VI ELECTRICAL SYSTEM
Lights
Cleaning the headlights and sidelights
Clean with water or specific commercial products. We recommend that you
switch off the lights before cleaning.
Bulb replacement

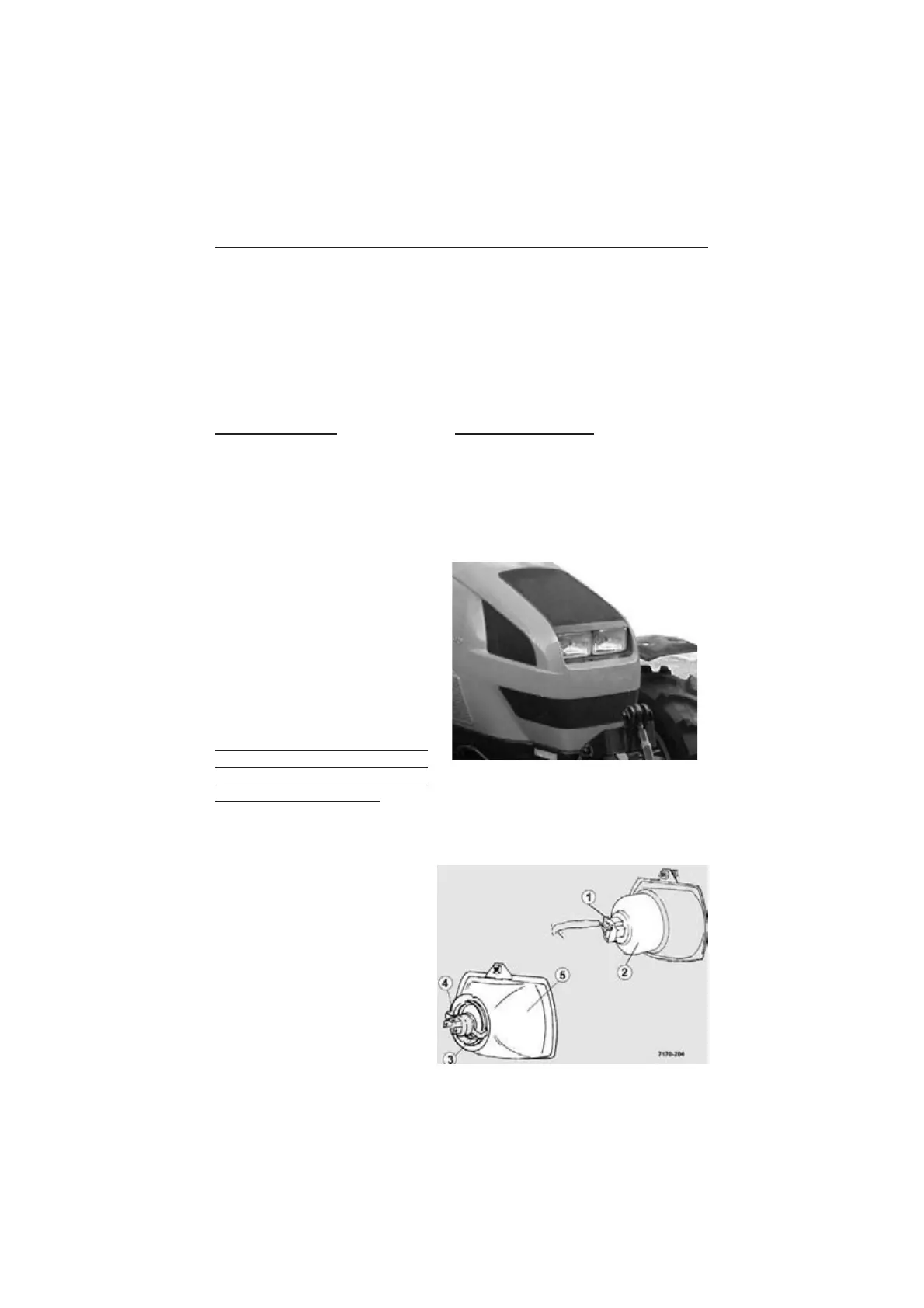

Front headlights
H4 12V 60/55W double filament bulb
The headlights have double- filament bulbs for main and dipped beam
ilumination.
To replace the bulbs, remove the front grille and proceed as follows:
–
detach connector 1 from
the base of the bulb.
–
peel back and remove the
rubber cover 2.
–
turn slightly the spring clip 3
that holds the bulb base 4 in
position and detach it from
the reflector.
WARNING
: avoid touching the
inner surface of the reflector.
Make sure no foreign material
gets inside the reflector.
–
Insert the new bulb so that
the locator tabs engage the
notches in the rim of the
reflctor 5.
–
Replace the ruber cover 2,
making sure that it fits
snugly against the edge of
the reflector.
–
Push connector 1 onto the
terminals on the bulb base.
