SECTION VI ELECTRICAL SYSTEM

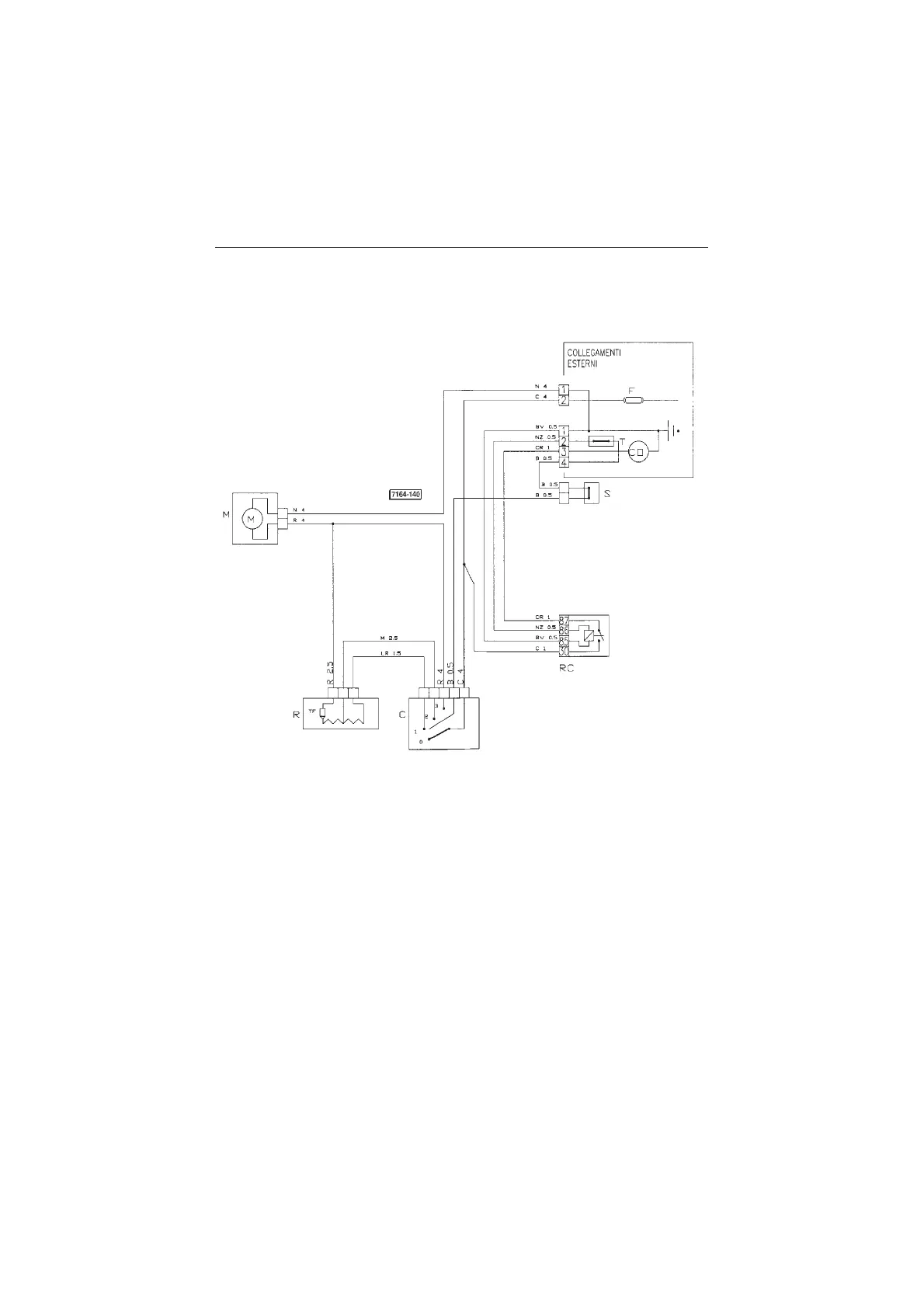

Electrical diagram - cab air conditioning unit
Key to air conditioning components
M Fan heater
R Blower speed control resistor
C Blower speed selector
RC Air conditioner relay
F Power supply fuse
T Air conditioning pressure switch
CO Compressor
S Thermostat
167
