6.6. Screen “B”

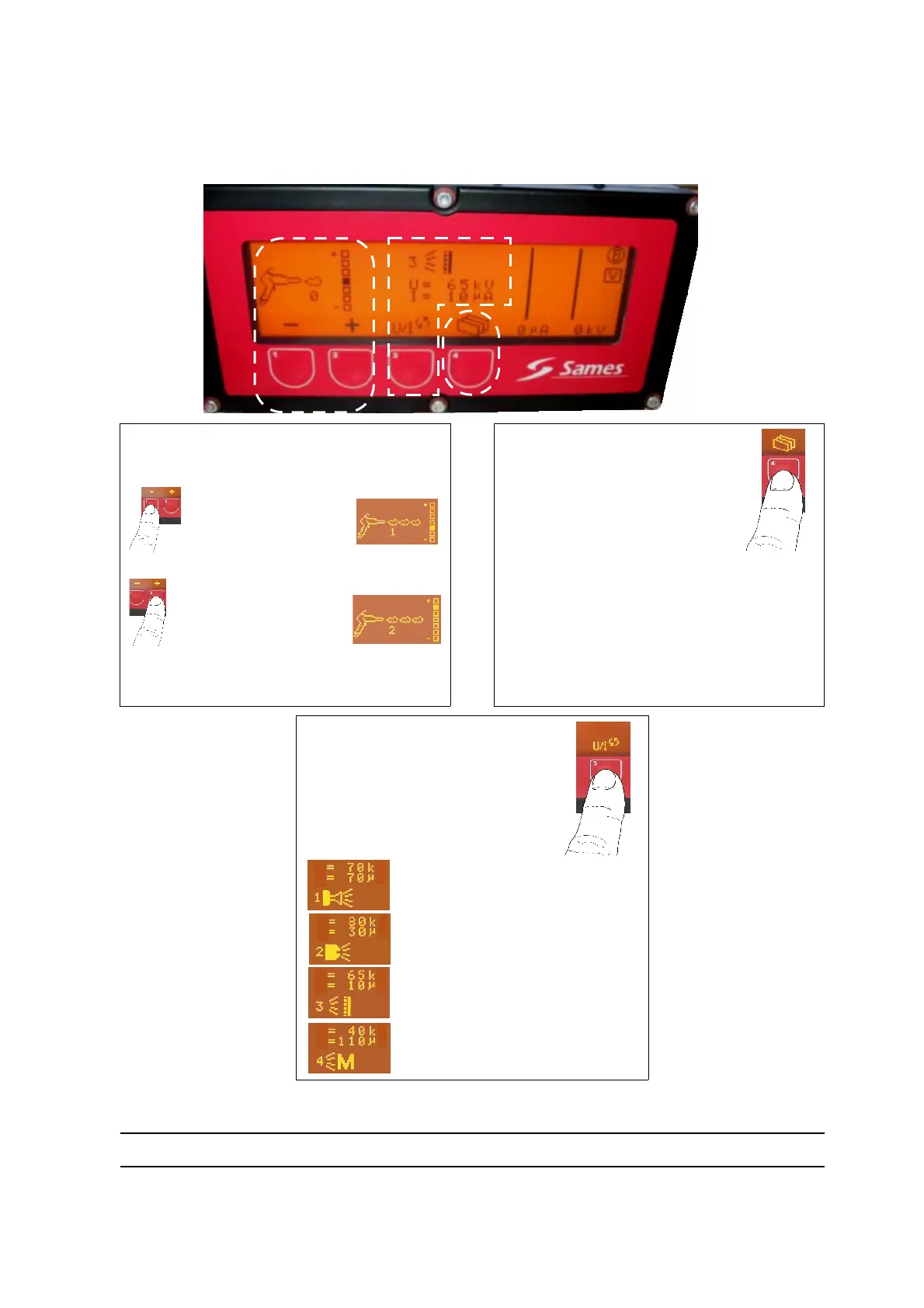

It is used for dilution air adjustment and selection of pre-set characteristics (U/I).
Dilution air is used to avoid spray pulses. This adjustment also acts on powder spray speed.
[
[
1
1
]
]
: Dilution air can be adjusted in this
area.
Less air:
- Slower spray
-Risk of
pulses.
More air:
- Faster spray
Fewer
pulses
There are 7 different settings (from -3 to +3)
[
[
3
3
]
]
: This button enables
switching to the following
menu or positioning on the
cleaning screen by pressing
the button for more than two
seconds.
Pressing the button validates
the parameters, the U/I characteristic
remains unchanged and the operator has
access to the next menu, “C.”
It is possible to powder-coat and see the
influence of adjustments before validating. If
no action is taken, the display switches auto-
matically to screen “A” after one minute.
[
[
2
2
]
]
: This button enables
selection of the pre-set
characteristic (U/I).
Pressing this button
gives a looped display
of the following logos.
Use of round spray nozzles.
Use of fan spray nozzles.
“Over-powder-coating” applica-
tion.
Metallic powder application.
1
1
2
2
3
3
1
