7.5. Trigger
7.5.1. Disassembly
• Using a dia. 1.5 mm drift punch, remove the
pin fixing the trigger to the handle assembly
(see figure 1).
Be careful not to lose the spring.
7.5.2. Assembly
• Replace the spring around the magnet (as
shown in figure 2).
• Place the trigger in its housing, port upwards
(as shown in figure 3).
• Replace the pin. It must be correctly centred
and must not protrude from either side.
DES02712

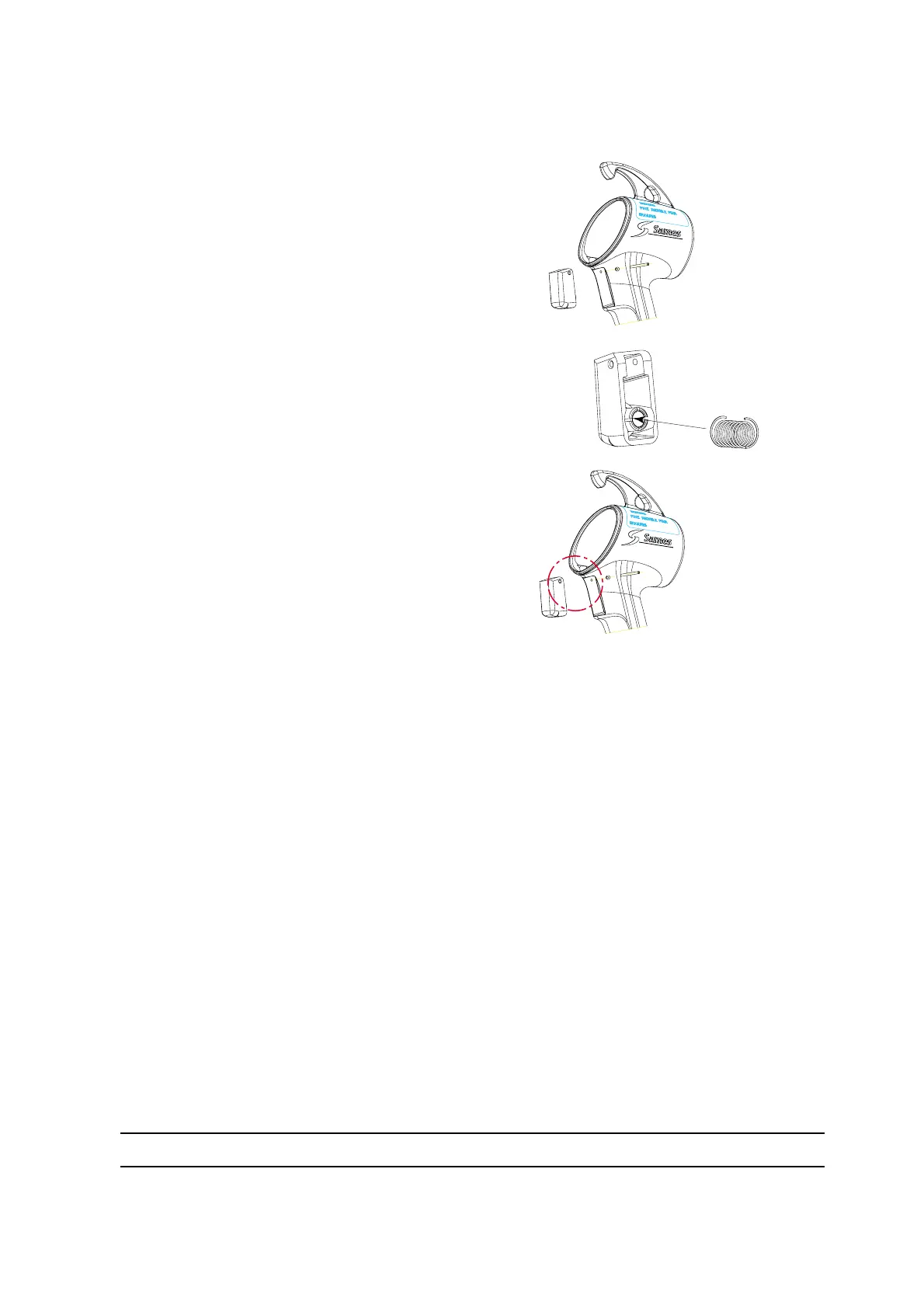

Figure 1
Figure 2
Figure 3
