Refer to the Administrator’s Guide included with the POLYCOM video conferencing system
for configuring the monitor(s) and audio system for optimal performance.

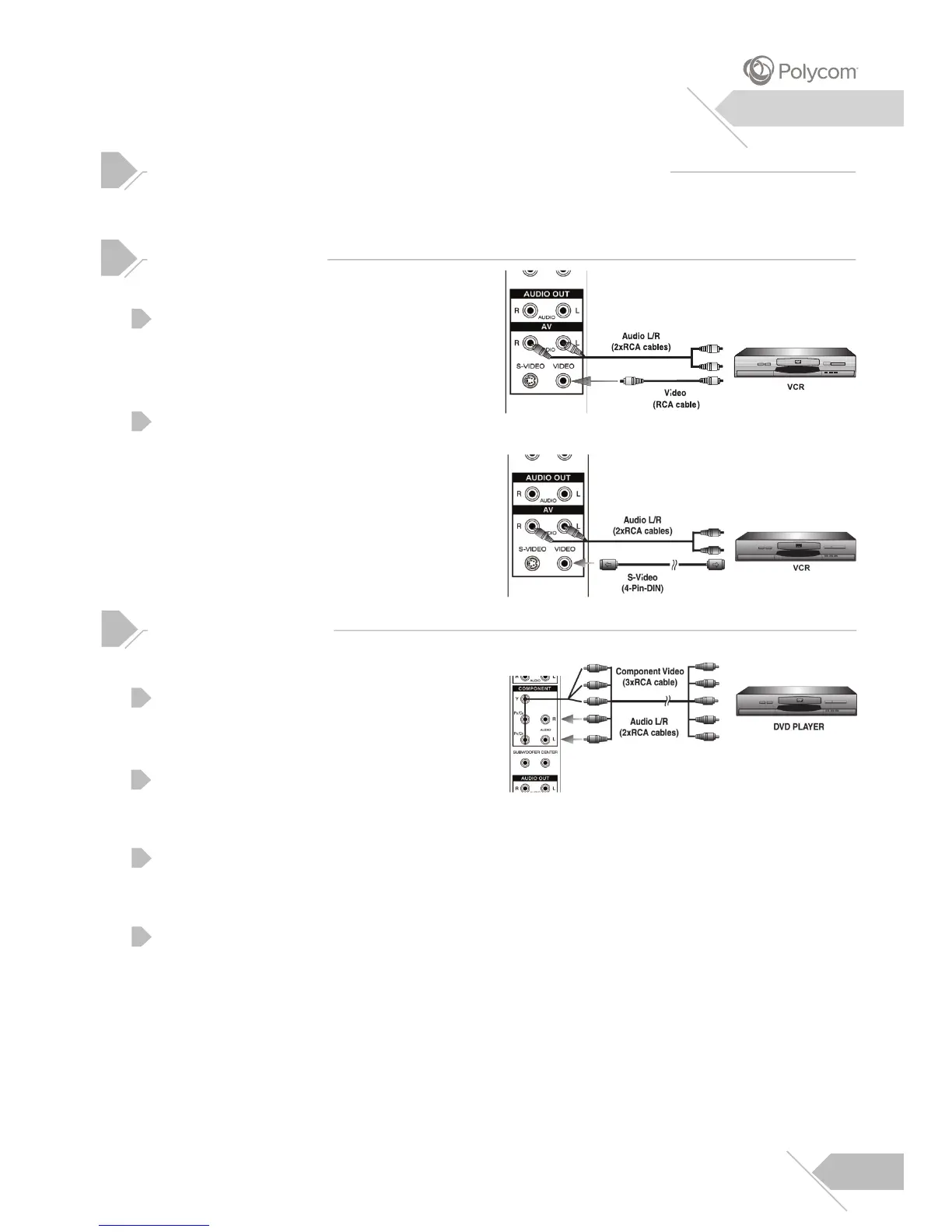

Using Composite/S-Video
Connect the Composite/S-Video(4-pin DIN)
connector from the VCR to the Composite /
S-Video input on the back of display.
Connect the red (R) and white (L) audio jacks
from the VCR to the red (R) and white (L)
audio-in jacks located next to the back of
display.
Using Component Video Input
Connect the green-colored (labeled as Y)
jack from the DVD to the green-colored
jack of the display.
Connect the blue-colored (labeled as P
B/CB)
jack from the DVD to the blue-colored P
B/CB
jack of the display.
Connect the red-colored (labeled as P
R/C )
jack from the DVD to the red-colored P
R/CR
jack of the display.
R
Connect the red
jacks from the DVD the R and L audio-in
jacks located next to the P
R/CR connector
of the display.
(R) and white (L) audio
Connecting POLYCOM Video Conferencing System
Connecting a VCR
Connecting a DVD
10
1
2
1
2
3
4
Installation
