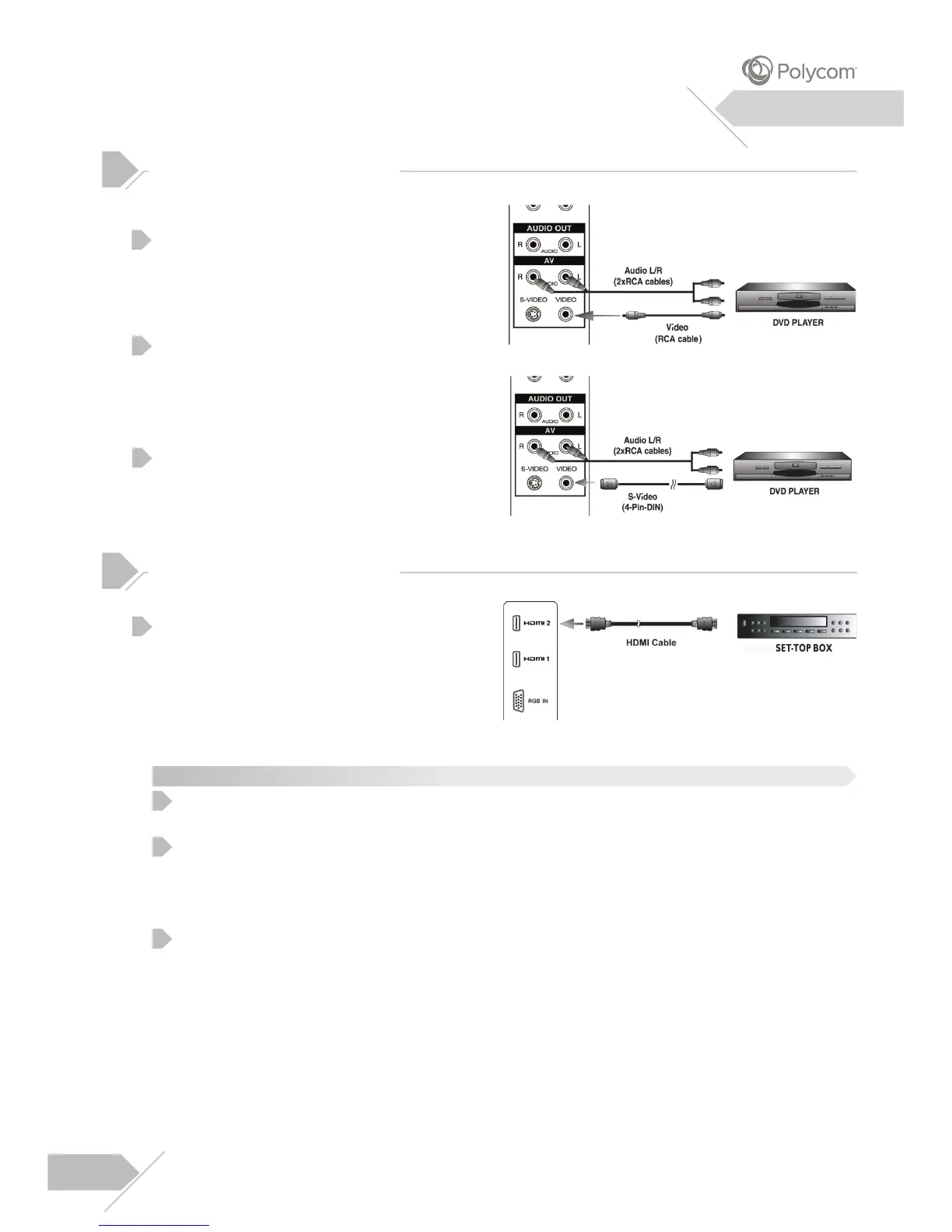

Using Composite/S-Video Input
Connect the Composite/S-Video (4-pin DIN)
connector from the DVD to the
Composite/S-Video input on the back of
display.
Connect the red (R) and white (L) audio
jacks from the DVD to the red (R) and white
(L) audio-in jacks located next to the S-Video
connector.
When Composite and S-Video are both
connected, S-Video will have higher priority.
Using HDMI Input
Connect the HDMI connector from the back
of the Set-Top Box to the HDMI connector
located on the back of the display.
Some Set-Top Boxes may not have a HDMI output. Use Component Video input or RGB
input method if this is the case.
Upon connecting your Set-Top Box to the HDMI input of the display, it may be necessary
to adjust various picture setting on the display or to correctly match the output of the
Set-Top Box. This is caused by the different video timing set by various Set-Top Box
manufacturers.
If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to
the HDMI terminal.
Connecting a DVD (con’t)
Connecting a Set-Top Box
11
1
2
3
1
Installation
Notes:
1
2
3
To Next Page
