Sampo PME42MAW User Manual

Specifications
Additional Information
1. RED
2. GREEN
3. BLUE
4. GND
5. GND
6. REDGND
7. GREENGND
8. BULEGND
9. 5V
10. GND
11.NC
12.SDA
13. H-SYNC
14. V-SYNC
15 SCL
Pin Assignments For 19 Pin HDMI Connector (Digital only)
1.HDMI_RX2+
2.Ground (For +5V)
3.HDMI_RX2-
4.HDMI_RX1+
5. Ground (For +5V)
6.HDMI_RX1-
7.HDMI_RX1+
8.Ground (For +5V)
9.HDMI_RX0-
10.HDMI_RXC+
11.Ground (For +5V)
12.HDMI_RXC-
13.No Connect
14.Connect
15.RX5VDDC SCL
16.RX5VDDC SDAt
17. Ground (For +5V)
18. IN_5V
19. RX_HOTPLUG
Pin Assignments For D-Sub connector (In/Loop out)
22

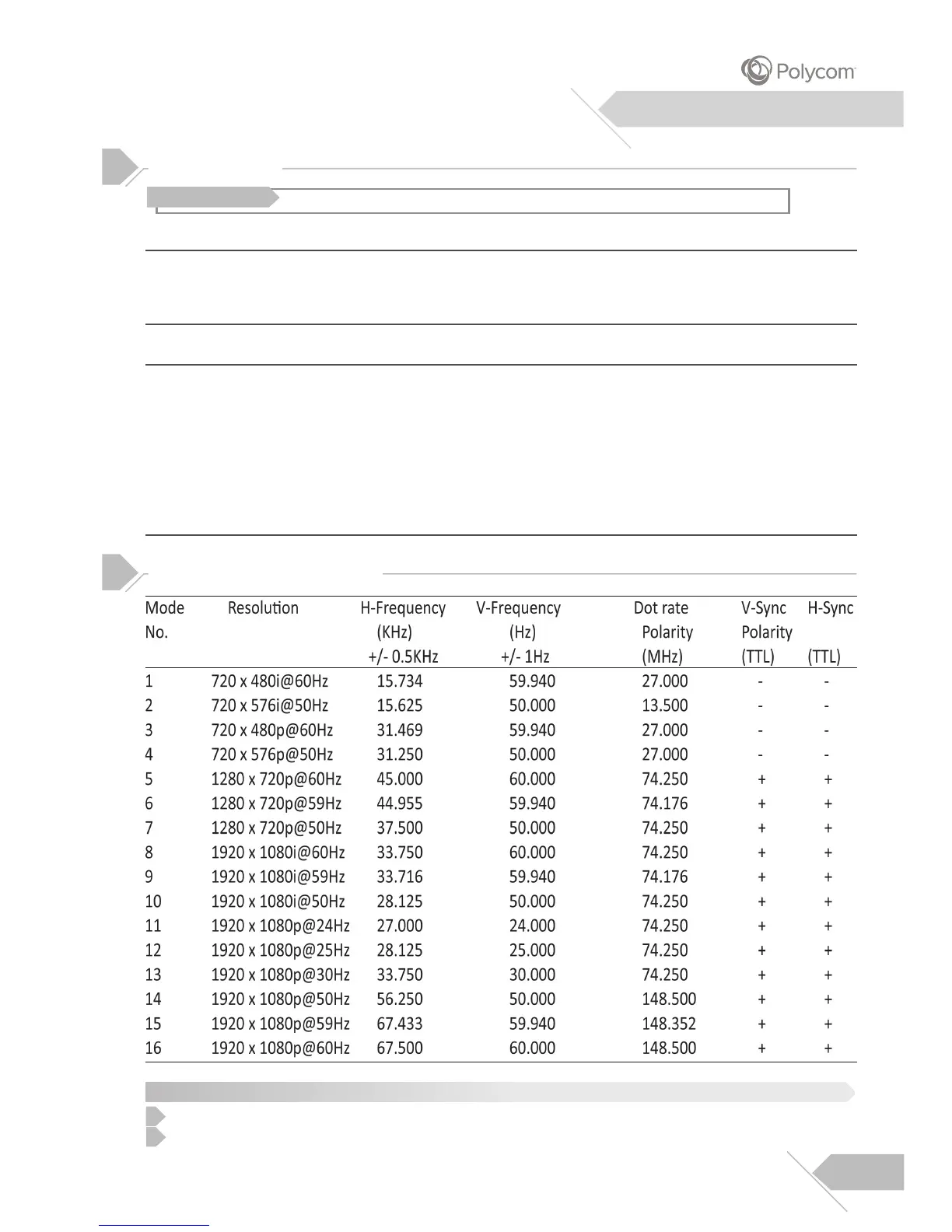

Timing For Component
Maximum Resolution Up to 1920 x 1080p
This display does not support Macintosh resolution.
Note:
1
2
Analog 500mV rms/more than 10K ohm.
Audio Signal
