Samson C-Control User Manual

+
-
A DC INLET - The included AC/DC power supply
is connected here.
B REMOTE TALK
- 1/4-inch phone connector used
to connect external TALKBACK switch.
C EXTERNAL CUE - Stereo output on two 1/4-inch
balanced phone connectors for sending C con-
trol left and right mix to a headphone amplifier.
D SPEAKER C - Stereo RCA outputs for connecting
monitor power amplifier or powered monitors.
Also can be used to connect an external pow-
ered subwoofer.
E SPEAKER B - Stereo RCA outputs for connecting
a monitor power amplifier or pair of powered
monitors.
F SPEAKER A - Stereo 1/4-inch balanced outputs
for connecting a monitor power amplifier or pair
of powered monitors.
G2-TRACK C OUTPUT - Stereo RCA outputs for
connecting any –10dBu level recording devices,
such as a computer sound card, minidisk or
consumer cassette recorder.
H 2-TRACK B OUTPUT - Stereo 1/4-inch balanced
outputs for connecting any +4dBu level record-
ing devices, such as a DAT recorder, computer
sound card or CD burner.
Controls and Functions

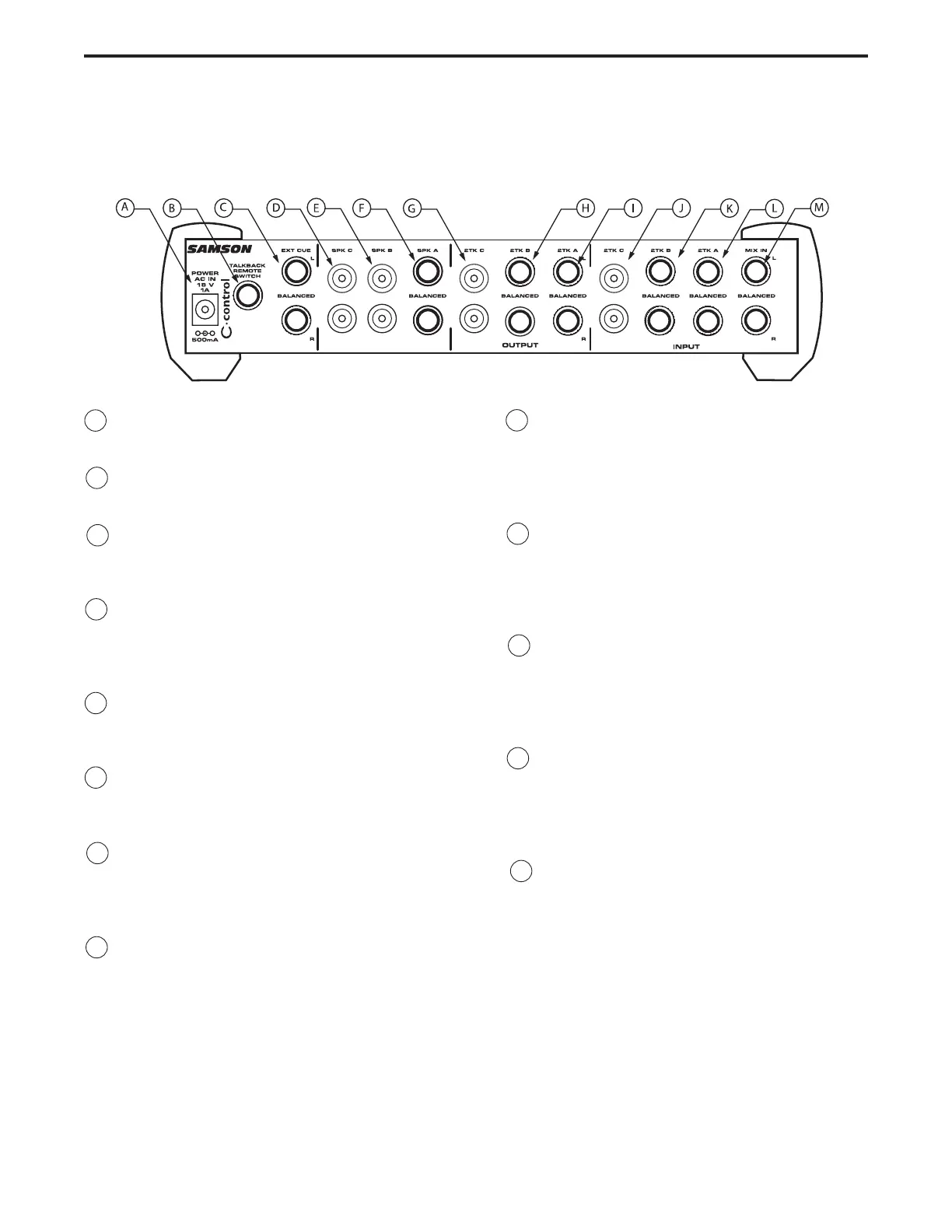

REAR PANEL LAYOUT
I 2-TRACK A OUTPUT - Stereo 1/4-inch bal-
anced outputs for connecting any +4dBu
level recording devices, such as a DAT
recorder, computer sound card or CD
burner.
J 2-TRACK C INPUT - Stereo RCA inputs for
connecting any –10dBu level recording
devices, such as a computer sound card,
minidisk, CD player or consumer cassette
recorder.
K 2-TRACK B INPUT - Stereo 1/4-inch bal-
anced inputs for connecting any +4dBu
level stereo sources, such as a DAT
recorder, computer sound card, CD burn-
er or sub-mixer.
L 2-TRACK A INPUT - Stereo 1/4-inch bal-
anced inputs for connecting any +4dBu
level stereo sources, such as a DAT
recorder, computer sound card, CD burn-
er or sub-mixer.
M MIX INPUT - Stereo 1/4-inch balanced
inputs for connecting any +4dBu level
stereo sources, such as your main mixer
or hard disk.
5
