Samsung 25A6 - Connecting to the AV-1 or 2 Input;Outputs; Connecting to the S-VIDEO Input

34
ENG

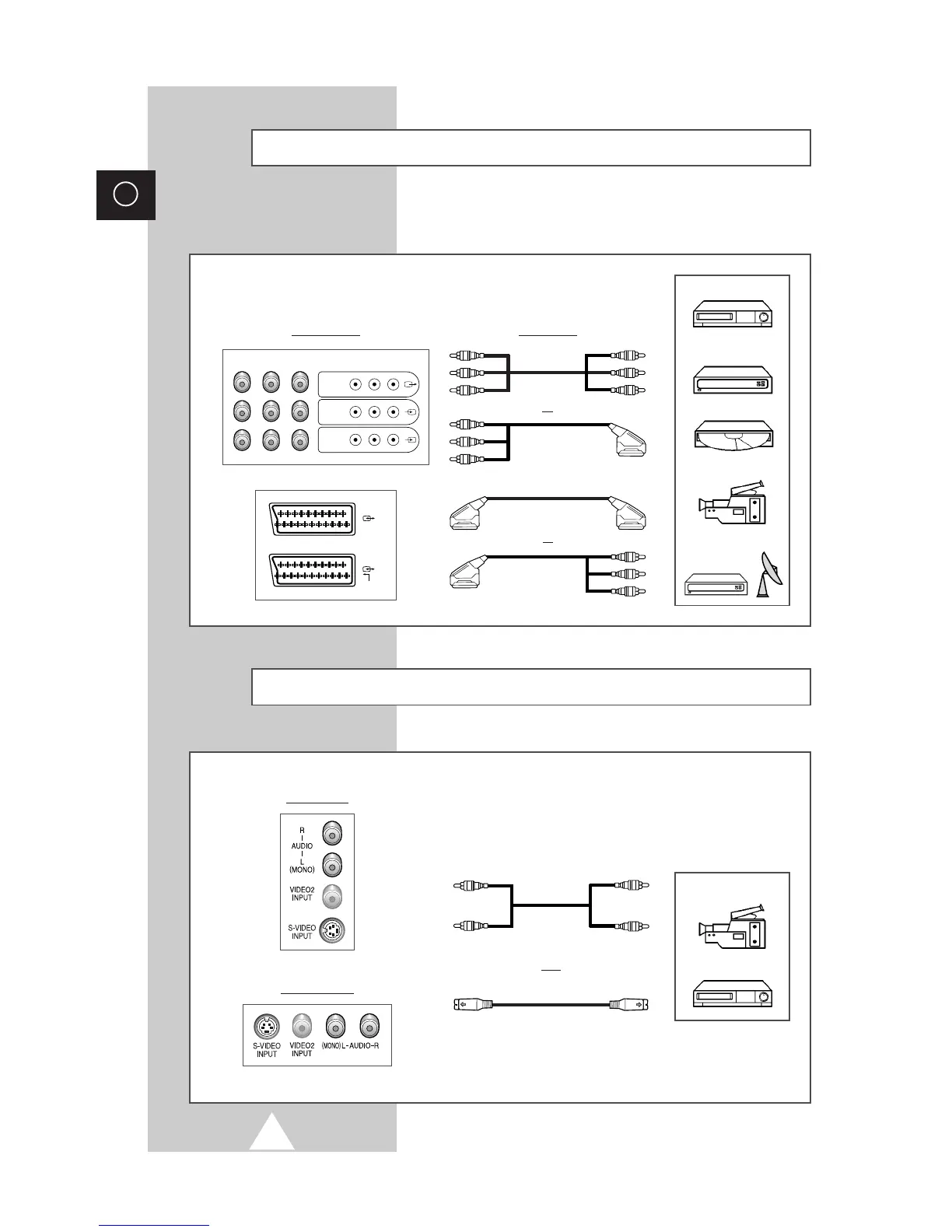

Connecting to the AV-1 or 2 Input/Outputs
➢
AV-1 is used for equipment with an RGB output, such as video game
devices and video disc players or a VCR.
RGB
2
1
Rear of TV
Video disc player
Decoder/
Video game device
VCR
Camcorder
or
Satellite receiver
AV cable
➣
These figures show typical connector-jack panels.
The actual configuration on your TV may be different,
depending on your model.
Connecting to the S-VIDEO Input (depending on the model)
or
INPUT 1
MONITOR
-OUT
INPUT 2
VIDEO
(
MONO
)

L-AUDIO-R
➢
The S-VIDEO/RCA (AUDIO-L and R) connectors are used
for equipment with an S-Video output, such as a
camcorder or VCR.
Sife of TV
VCR
Camcorder
and
Front of TV
