Samsung A50K8600A/A2 Series - Page 16

14 _ Disassembly and Reassembly
Part Figure Description

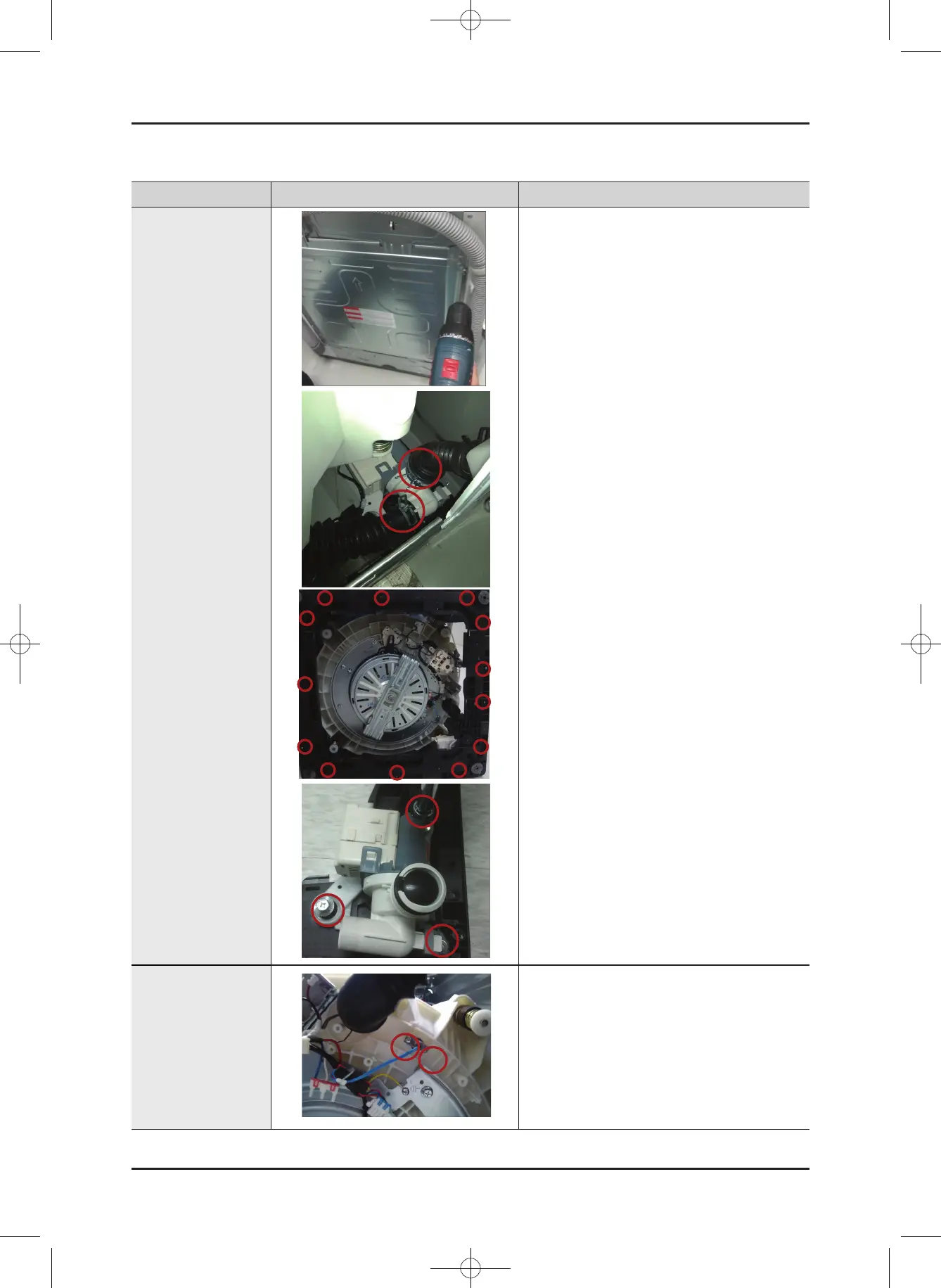

Drain-Pump
1. Separatethebackcover
2. Separate 2 clamps.
3. Remove the 13 screws in base.
4. Remove the 3 screws
5screwsareseparatedby‘+’shapehanddriver.
Thermistor 1. Remove the 2 screws.
