Disassembly and Reassembly _ 15

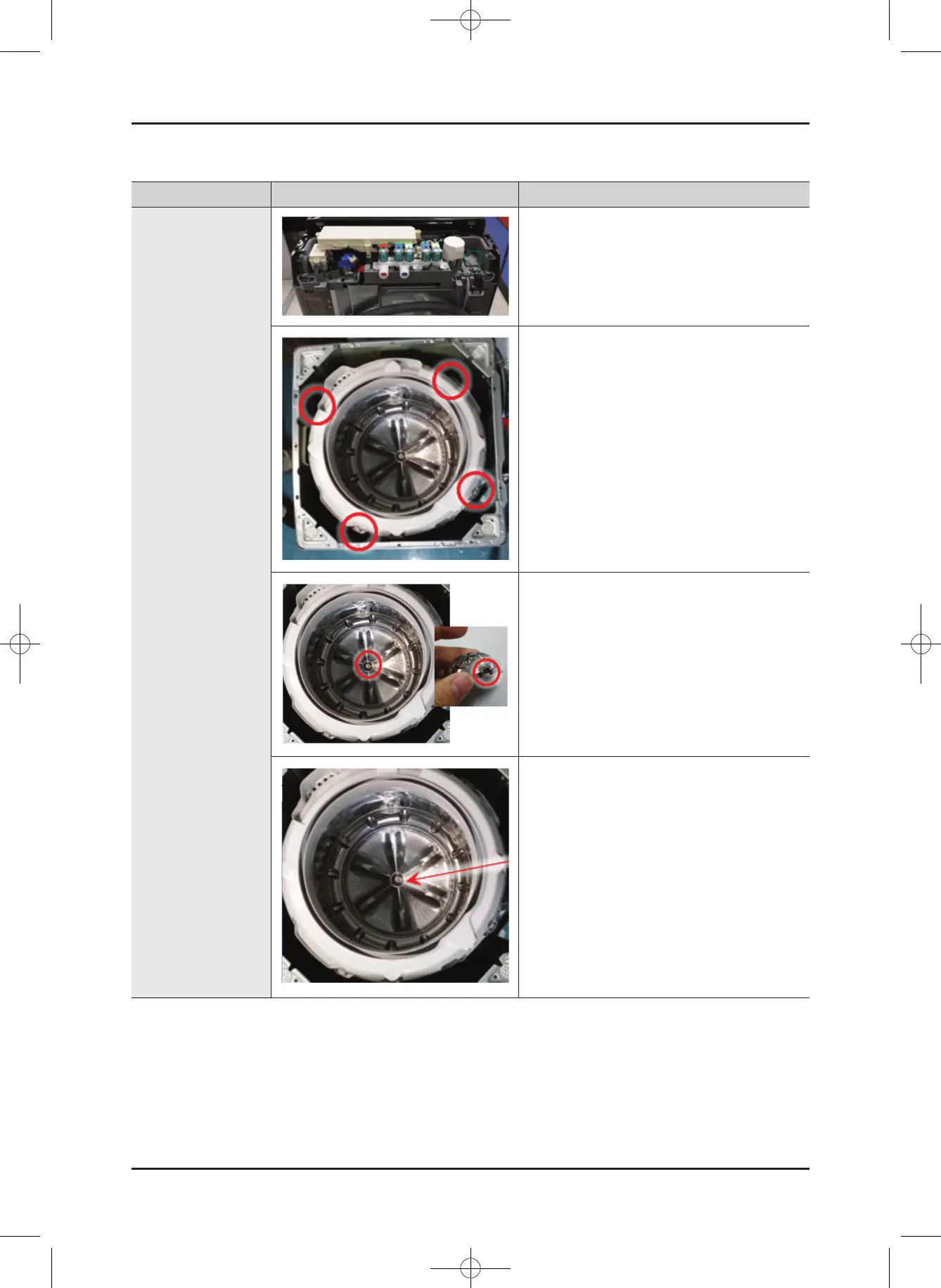

Part Figure Description
Clutch Assembly
(continued)
1. Separate the top cover assembly by lifting
and pushing ahead the top part of the
assembly
2. Separate all the wires connected to the
housing.
3. Removethe4screwsxingthetub-cover
and separate the tub-cover.
4. Separate the pulsator-cap by inserting the
tip of a (-) screwdriver between the pulsator-
cap and the pulsator and then lifting the
screwdriverup(↑).
5. Remove the bolt holding the pulsator with a
10mm wrench.
