Samsung AC100RN4PKG User Manual

Disassembly and Reassembly
3-100 Samsung Electronics

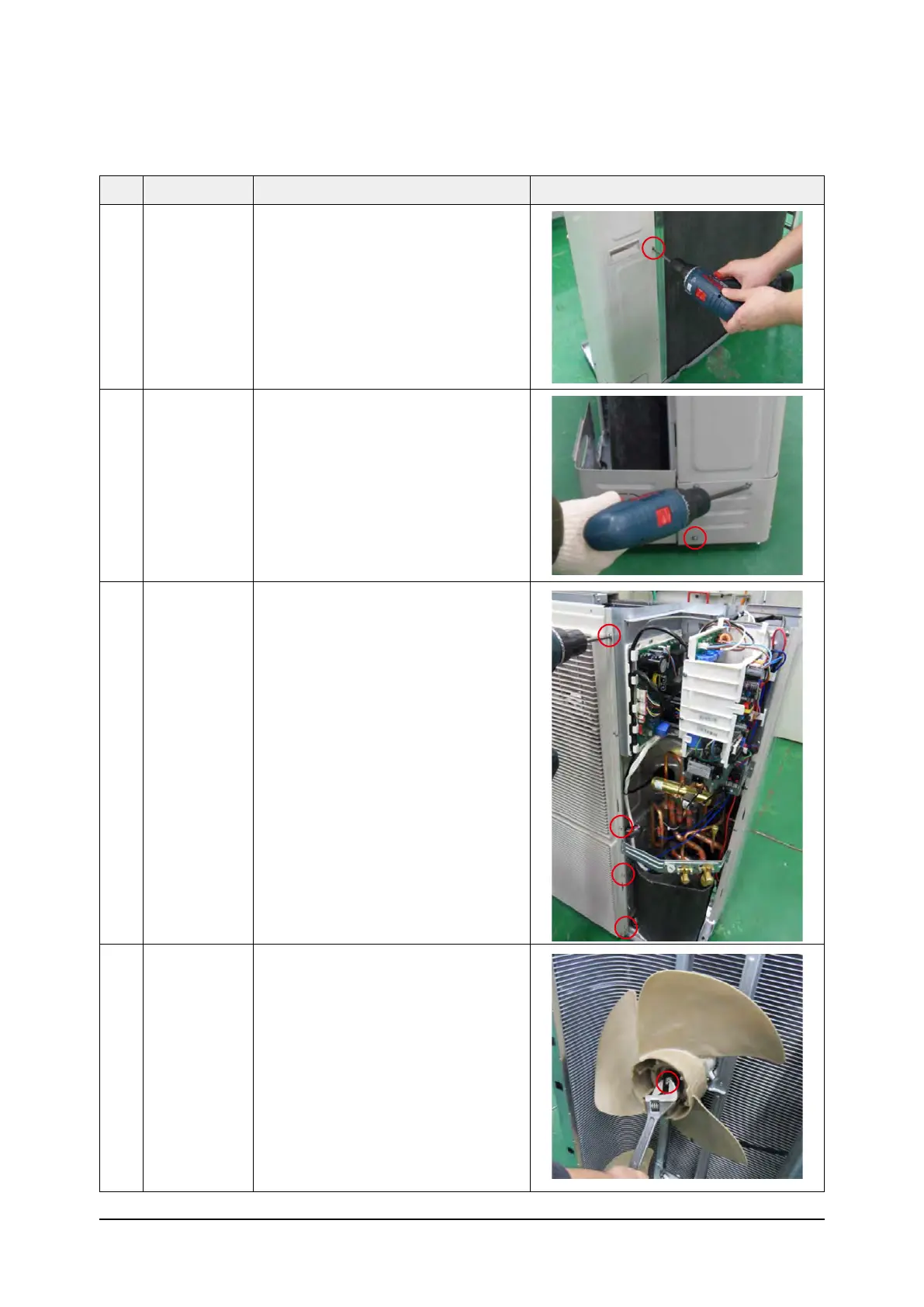

No Parts Procedure Remark
5 Cabi Back RH 1) Pull the sensor from Cabi Back RH.
2) Unscrew and remove 4 screws on each
side of the Cabinet Back RH.
(Use +Screw Driver)
6 Cabi Install
Back
1) Unscrew and remove 1 screw in the
Cabinet-Install Back.
(Use +Screw Driver)
7 Cabi Front LF 1) Unscrew and remove 10 screws in the
Cabinet-Front LF.
(Use +Screw Driver)
8 Fan 1) Turn 2 mounting nuts as shown in the
picture and remove it.
(Use Adjustable Wrench)
