Disassembly and Reassembly
Samsung Electronics 3-101
No Parts Procedure Remark

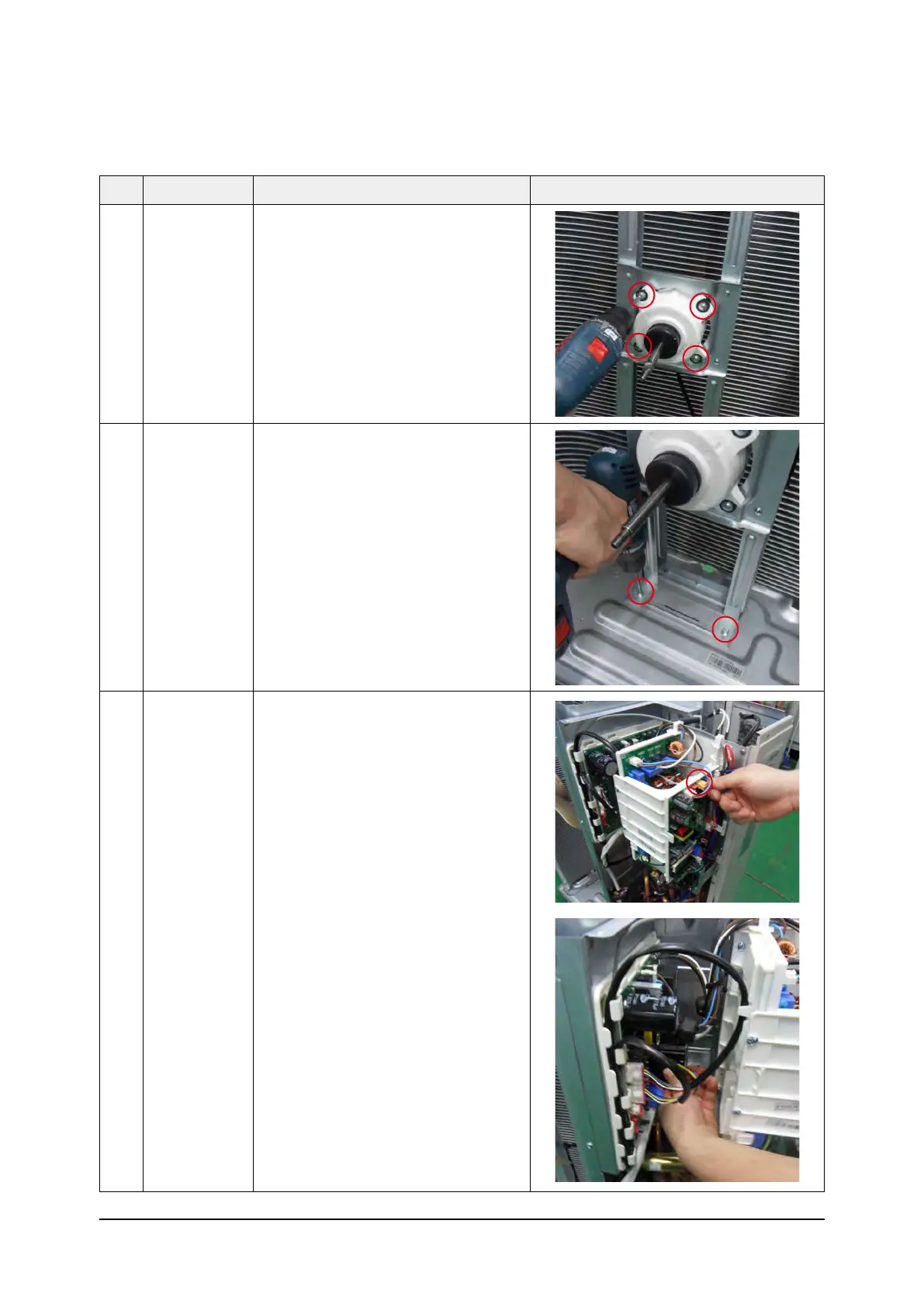

9 Motor 1) Separate the Fan Propeller.
2) Unscrew and remove the 8 Motor
mounting screws.
(AC100~/EU = 4 Moter mounting screws)
(AC120~/EU = 4 Moter mounting screws)
(Use +Screw Driver)
3) Disconnect the Motor wire From
Ass'y Control Out.
10 Bracket Motor 1) Unscrew and remove 2 mounting
screws in Bracket Motor.
(Use +Screw Driver)
11 Control Out 1) Disconnect 4 Connecters From
Ass'y Control Out.
2) Unscrew and remove 1 mounting
screw in Control Out.
(Use +Screw Driver)
3) Separate Ass'y Control Out.
To Next Page
