Disassembly and Reassembly
3-32 Samsung Electronics

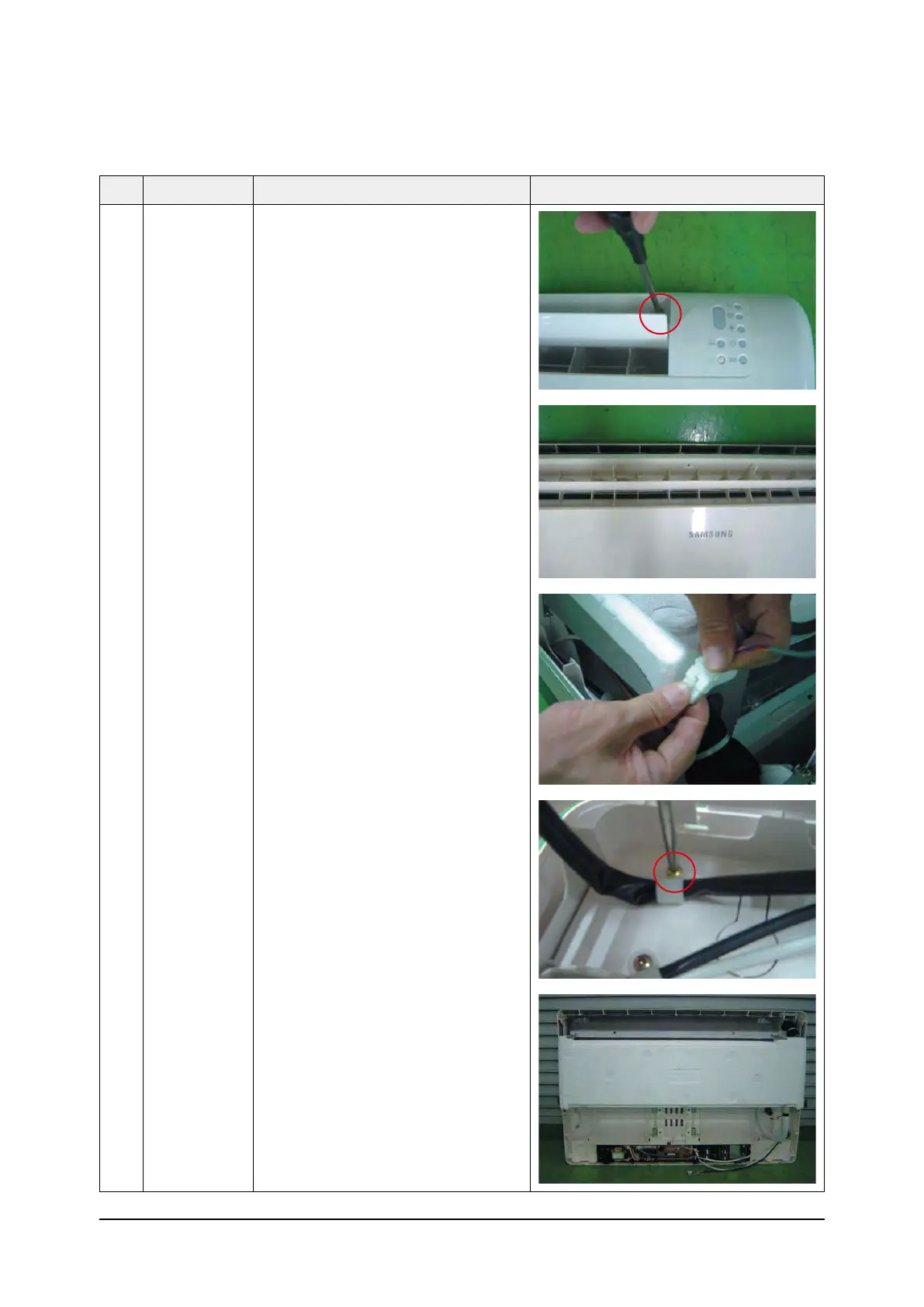

No. Parts Procedure Remark
4) Loosen the 3 screws of Front Side.
5)
Disassemble the assembly Front Cover
Part.
6) Disconnect the Step Motor Wire as shown
in picture.
7) Detach Wire Clamp fixed in Base Part.
8) Detach the Front Cover assembly
completely.
