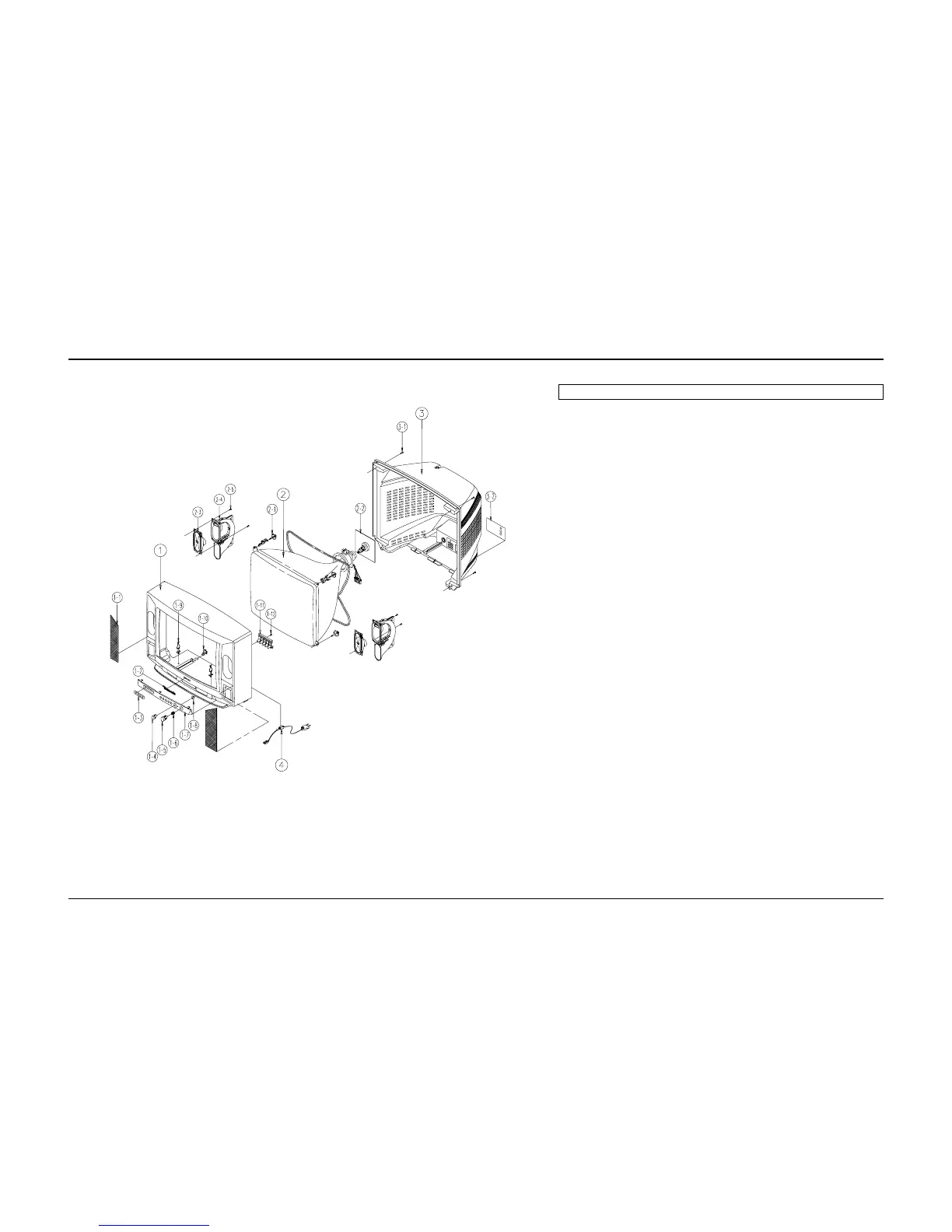

Exploded View & Parts List
5-2 Samsung Electronics
5-2 CT567BWX/STR, CT567BWX/XAP
No Code No Description Specification Q’ty
1 AA64-31115A "CABINET-FRONT -,CT567BW,BK-708P,HIPS,HB,BLK, 1
1-1 AA63-50334A GRILLE-WOOFER,L -,567B,PA110,SECC,T0.5,-,- 1
AA63-50335A GRILLE-WOOFER,R -,567B,PA110,SECC,T0.5,-,- 1
1-2 AA64-70010D BADGE-BRAND AL,SS R2000 25,GOLD,L50,-,-,- 1
1-3 AA64-60278S INLAY-AV KCT57A,S/T GOLD,PS,T0.3,KSP213 1
1-4 AA64-40431A WINDOW-REMOCON -,503E,-,ABS,HB,LG41338,- 1
1-5 AA64-10716B KNOB-POWER -,Q21,TS,ABS,HB,MET BROWN 1
1-6 AA61-60003T SPRING-CS -,SUS304,0.5,OD7,H13.5,N5,-,-, 1
1-7 AA64-40462A DECORATION-FRONT -,CT567BW,KSP213,HIPS,VO,L/GRA 1
1-8 AA64-40432A INDICATOR-LED -,503E,-,PMMA,HB,CLR,- 1
1-9 AA65-30105A CLAMP-WIRE NYLON 66N,V0,NTR,15MM,ALL MODE 2
1-10 AA61-40053A STOPPER-PCB ALL MODEL,HIPS HB,WHT,HB,-,- 1
1-11 AA64-10717A KNOB-CONTROL -,-,-,ABS,HB,MET BROWN 1
1-12 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
2 AA03-10028Z CRT-COLOR -,A53QCA891X(B),0mG,21,90deg, 1
2-1 AA60-10050D SCREW-ASSY WC,HH,+,M5,L33,SWRCH18,ZPC(YEL 4
2-2 AA94-50017T ASSY-CRT A53QCA891X(B),0MG,22,BARE,CT5 1
2-3 3001-000190 SPEAKER 5W,8ohm,89dB,150Hz 2
2-4 AA91-60289A ASSY-HOLDER,SPK 567BW ,-,PP,HB,BLK,8ohm,6W,600 1
2-5 6002-000516 SCREW-TAPPING RH,+,2,M4,L20,ZPC(BLK),SWRCH18 4
3 AA64-31111B CABINET-BACK -,566B,-,HIPS,HB,BLK,-,- 1
3-1 6002-000516 SCREW-TAPPING RH,+,2,M4,L20,ZPC(BLK),SWRCH18 4
3-2 AA64-60052P INLAY-BACK KCT57A,NT S/T,PS SHEET,T0.5,BL 1
4 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P,V 1
