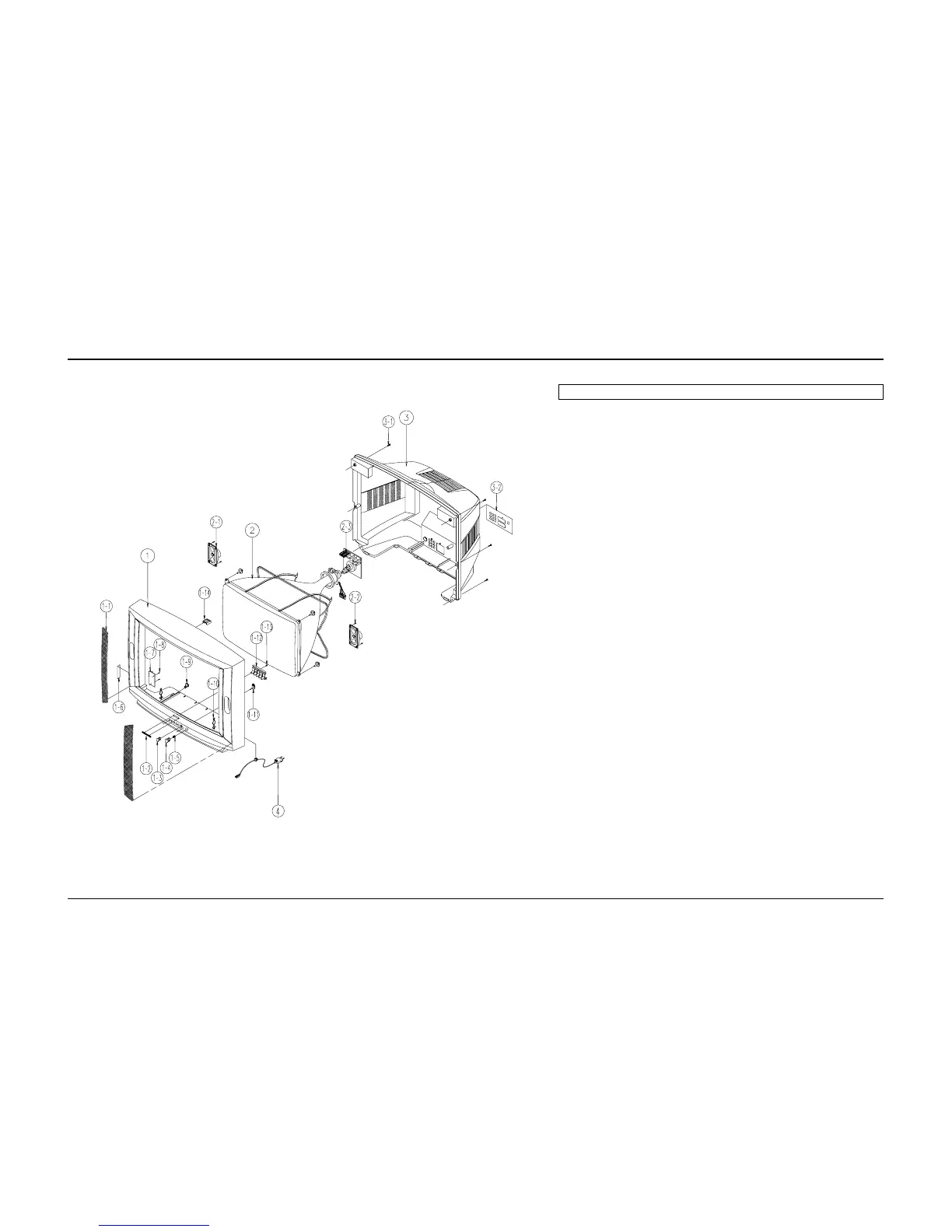

Exploded View & Parts List
Samsung Electronics 5-3
5-3 CT766DWX/STR, CT766DWX/XAP
No Code No Description Specification Q’ty
1 AA64-31178A CABINET-FRONT -,CT766DW,DG-703P EGB,HIPS,HB, 1
1-1 AA63-50341A GRILLE-WOOFER -,766DW,-,SECC PI0.6,T0.6,DG-7 2
1-2 AA64-70117C BADGE-BRAND AL,SS,GOLD,L65,FLAT,-,- 1
1-3 AA64-40479A WINDOW-REMOCON -,765D,-,ABS,HB,-,CLR LG41338 1
1-4 AA64-10740A KNOB-POWER -,765D,G3119,HIPS,HB,HI-GREY 1
1-5 AA61-60003N SPRING-CS -,SUS304,0.6,OD11.2,H27,N9,H27 1
1-6 AA64-60423E INLAY-AV.SIDE 766D,KCT57A,PS,T0.3,S/GRAY,-,- 1
1-7 AA95-90028W ASSY-PCB,A/V SIDE -,CT766DWX/XAP,KCT57A,NTSC,100 1
1-8 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 2
1-9 AA61-40053A STOPPER-PCB ALL MODEL,HIPS HB,WHT,HB,-,- 1
1-10 AA65-30105A CLAMP-WIRE NYLON 66N,V0,NTR,15MM,ALL MODE 2
1-11 AA64-40480A INDICATOR-LED -,765D,-,ABS,-,CLR,- 1
1-12 AA64-10741A KNOB-CONTROL -,765D,G3119,HIPS,HB,HI-GREY 1
1-13 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
1-14 AA61-40010A BOSS-WING -,HIPS,HB,NTR,-,- 1
2 AA03-10029G CRT-COLOR -,A70QBZ791X001(B),0mG,29,100 1
2-1 3001-000274 SPEAKER 5W,8ohm,90dB,160Hz 2
2-2 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 4
2-3 AA95-20009W ASSY-PCB,CRT -,KCT57A,29,JUNGNAMMI,- 1
3 AA64-31179A CABINET-BACK -,766D,-,HIPS,HB,GRAY,-,- 1
3-1 6002-000516 SCREW-TAPPING RH,+,2,M4,L20,ZPC(BLK),SWRCH18 4
3-2 AA64-60052P INLAY-BACK KCT57A,NT S/T,PS SHEET,T0.5,BL 1
4 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P,V 1
