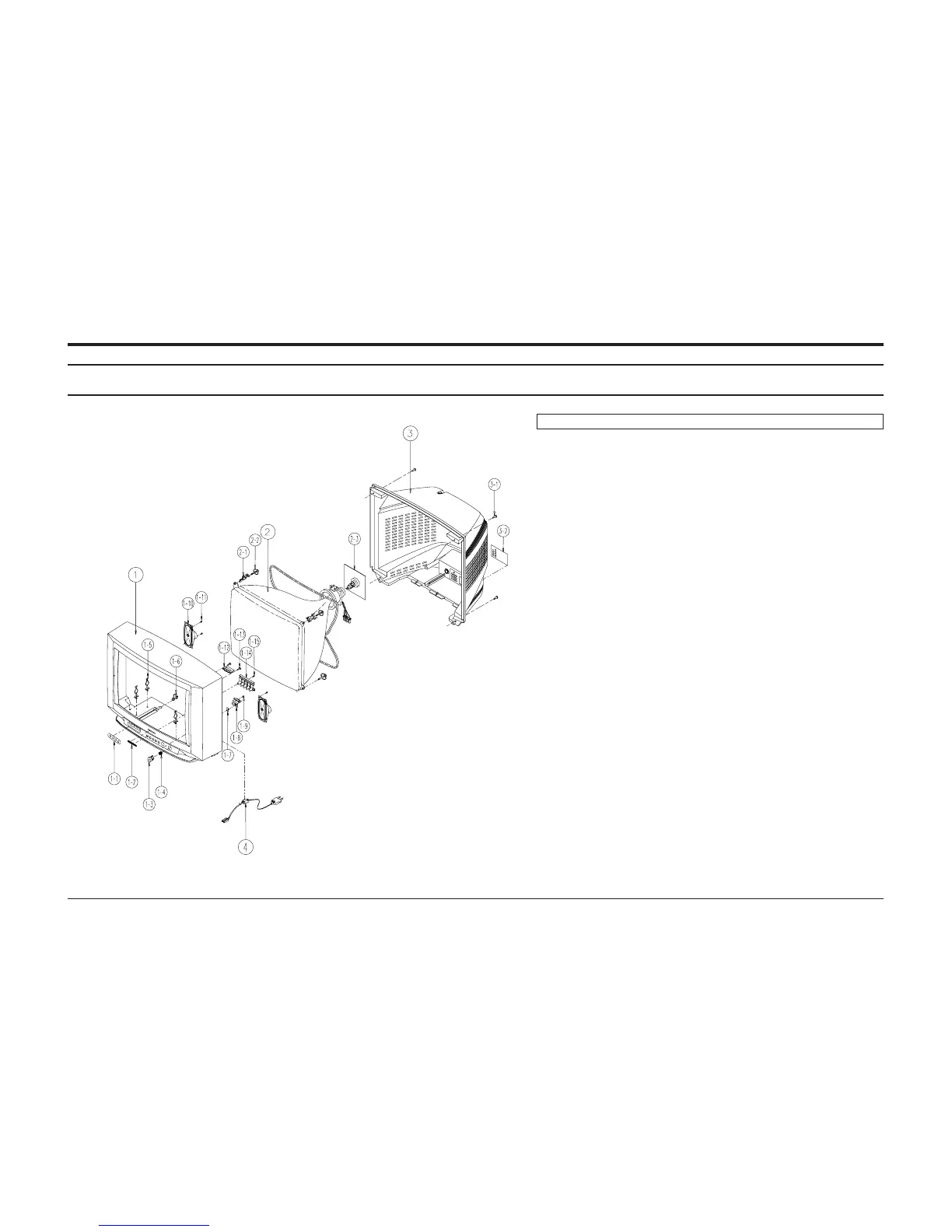

5. Exploded View & Parts List
5-1 CT566BVX/STR, CT566BVX/XAP, CT566BWX/STR
Exploded View & Parts List
Samsung Electronics 5-1
No Code No Description Specification Q’ty Remark
1 AA64-31110C CABINET-FRONT -,CT566BW,BK-708P EGN,HIPS,HB, 1 CT566BWX/STR
AA64-31110B CABINET-FRONT -,CT566BV,BK-708P EGN,HIPS,HB, 1 CT566BVX/STR
AA64-31110B CABINET-FRONT -,CT566BV,BK-708P EGN,HIPS,HB, 1 CT566BVX/XAP
1-1 AA64-60278P INLAY-AV KCT57A,S/T GOLD,PS,T0.3,BLK,-, 1 CT566BWX/STR
AA64-60278Q INLAY-AV KCT57A,M/N GOLD,PS,T0.3,BLK,-, 1 CT566BVX/STR
AA64-60278Q INLAY-AV KCT57A,M/N GOLD,PS,T0.3,BLK,-, 1 CT566BVX/XAP
1-2 AA64-70010D BADGE-BRAND AL,SS R2000 25,GOLD,L50,-,-,- 1
1-3 AA64-10712B KNOB-POWER -,Q21,TS,ABS,HB,BLK 1
1-4 AA61-60003T SPRING-CS -,SUS304,0.5,OD7,H13.5,N5,-,-, 1
1-5 AA65-30105A CLAMP-WIRE NYLON 66N,V0,NTR,15MM,ALL MODE 2
1-6 AA61-40053A STOPPER-PCB ALL MODEL,HIPS HB,WHT,HB,-,- 1
1-7 AA64-40461A INDICATOR-LED -,226B,LG TR558-0239,ABS,HB,CL 1
1-8 AA64-40460A WINDOW-REMOCON -,226B,LG-41338,ABS,HB,-,- 1
1-9 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
1-10 3001-000190 SPEAKER 5W,8ohm,89dB,150Hz 2
1-11 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 4
1-12 3722-001031 JACK-RCA 3P,3.6mm,#18,AU 1
1-13 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD14 2
1-14 AA64-10713A KNOB-CONTROL -,226B,-,ABS,HB,BLK 1
1-15 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 1
2 AA03-10028Z CRT-COLOR -,A53QCA891X(B),0mG,21,90deg, 1
2-1 AA65-30019A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-460 20,- 4
2-2 AA60-10050D SCREW-ASSY WC,HH,+,M5,L33,SWRCH18,ZPC(YEL 4
2-3 AA94-50017T ASSY-CRT A53QCA891X(B),0MG,22,BARE,CT5 1
3 AA64-31111B CABINET-BACK -,566B,-,HIPS,HB,BLK,-,- 1
3-1 6002-000516 SCREW-TAPPING RH,+,2,M4,L20,ZPC(BLK),SWRCH18 4
3-2 AA64-60052P INLAY-BACK KCT57A,NT S/T,PS SHEET,T0.5,BL 1 CT566BWX/STR
AA64-60052K INLAY-BACK KCT57A,NT MONO,PS SHEET,T0.5,B 1 CT566BVX/STR
AA64-60052K INLAY-BACK KCT57A,NT MONO,PS SHEET,T0.5,B 1 CT566BVX/XAP
4 AA39-10006X POWER-CORD -,KKP419C,KLCE-2F,2.286MT,3P,V 1
To Next Page
