22 _ Removal and Reassembly
Part Figure Description

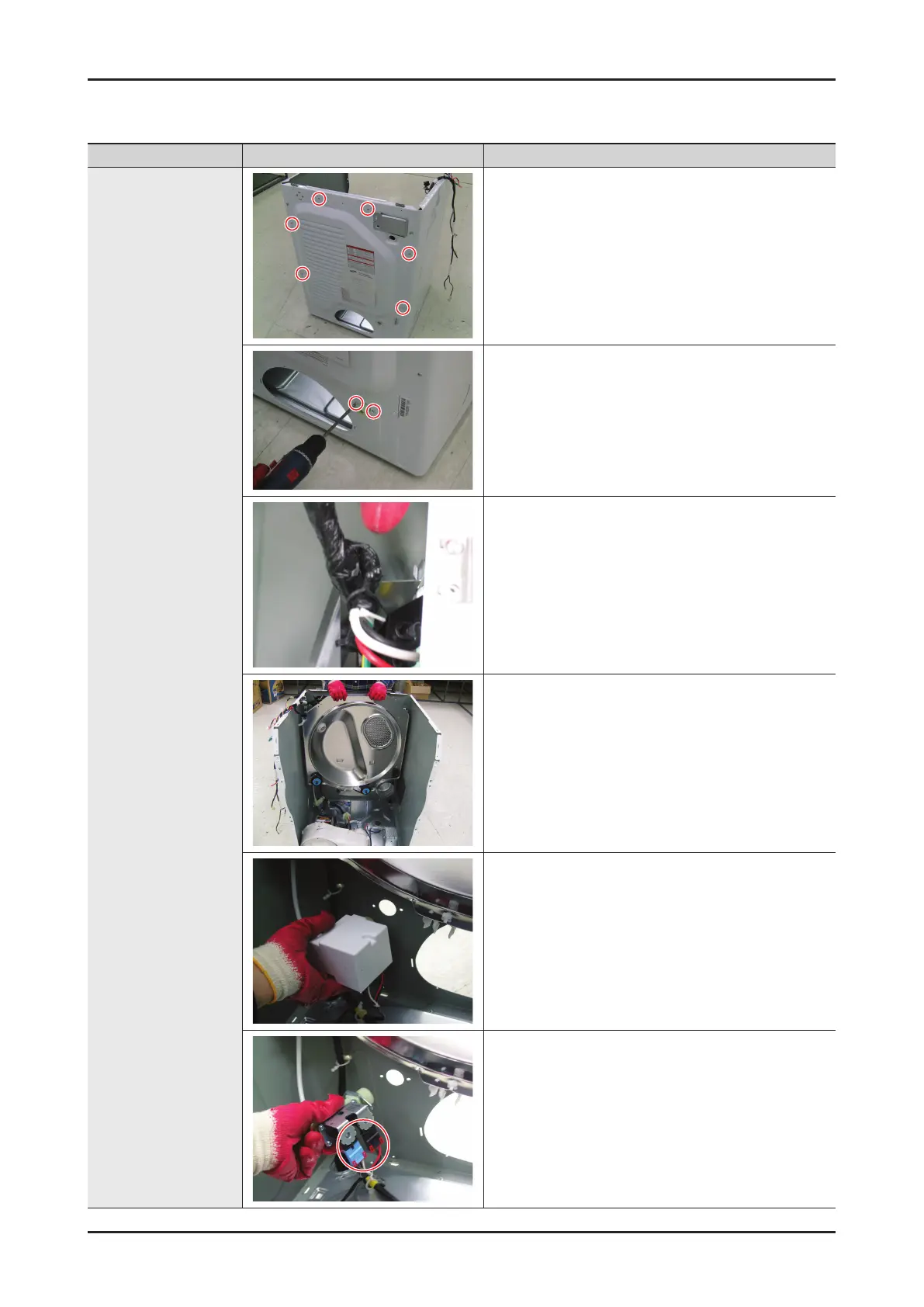

Drum Back Removal
1. Disconnect the power supply to the unit
2. Remove the Top Cover, the console, the Front
panel, the Plate(u), the Front Bulkhead and the
Drum
3. Remove 6 screws from the Drum-Back
4. Remove 2 screws from the Valve-Water.
5. Separate the wire in the wire Holder
6. Separate the Drum Back from the Frame.
7. Separate the Cover Valve-Water
8. Remove the terminals from the Valve-Water
To Next Page
