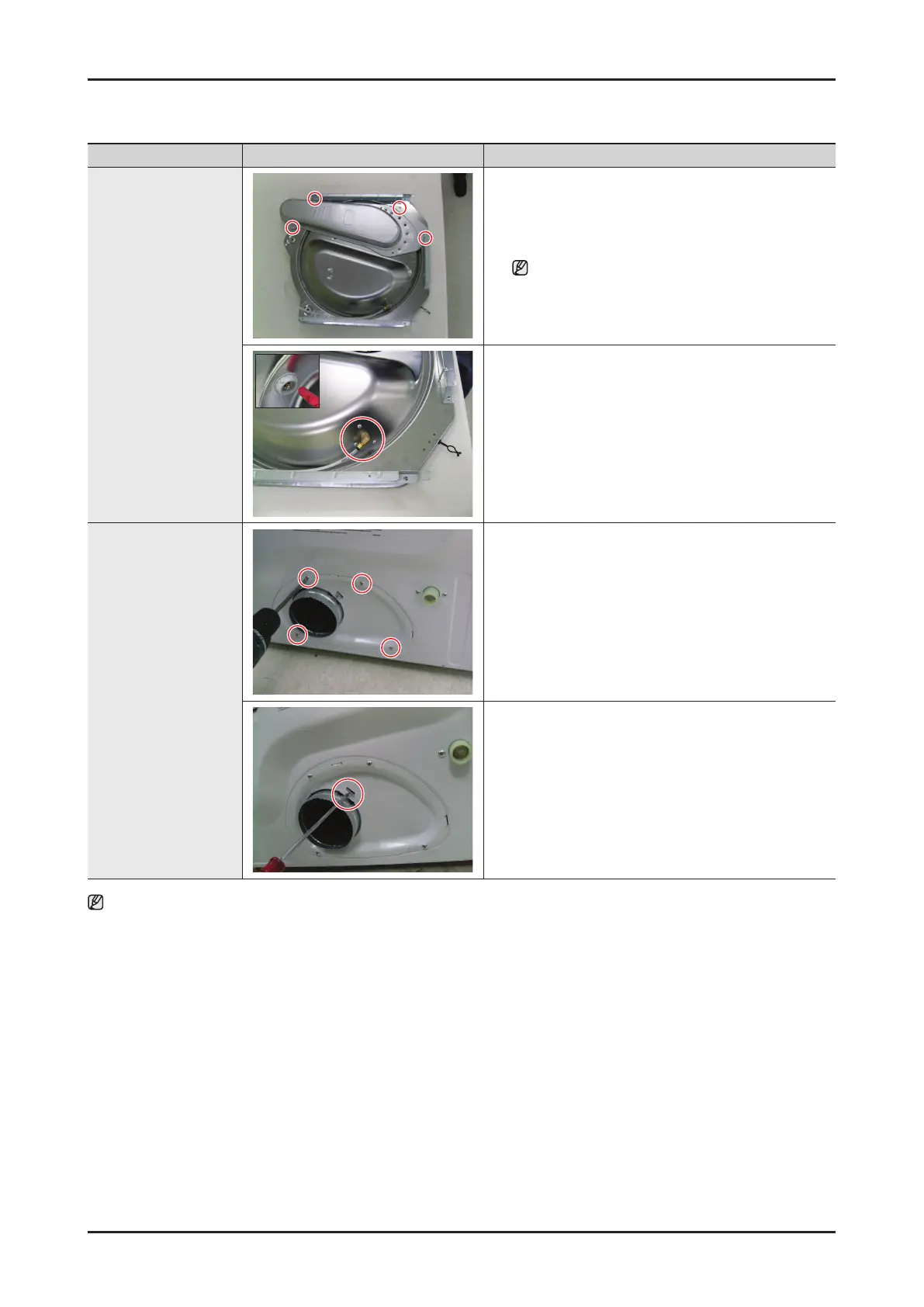

Removal and Reassembly _ 23
Part Figure Description
Drum Back Removal
(Continued)
9. Remove 4 Screw from the Air Duct
Be careful of the frame edge
10. Remove the 3 screws from the Guide Nozzle
Duct Exhaust
Removal
1. Disconnect the power supply to the unit
2. Remove 4 screws from the Back-Cover
3. Remove 1 screw from the Duct-Exhaust
Reassembly procedures are in the reverse order of dissasembly procedures.
